Baumer VCXG .I - Analog Control Settings; One-Push White Balance; Continuous White Balance; Analog Controls: Offset and Gain

80
7.3.2 One Push White Balance (Once)
Here, the three color spectrums are balanced to a single white point. The correction fac-
tors of the color gains are determined by the camera (one time).
Notice
When images are acquired in trigger mode, the white balance affects on the next ac-
quired image.
non-adjusted
histogramm
histogramm after
„one push“ white
balance
7.3.3 Continuous White Balance
In the Continuous mode the white balance is automatically performed once per second.
7.4 Analog Controls
7.4.1 Offset / BlackLevel
On Baumer VCX cameras, the offset (or black level) is adjustable from:
7.4.1.1 VCXG / .I/.I.XT
Camera Type BlackLevel
Monochrome / Color
VCXG-02M / VCXG-02C 0 ... 63 DN10
VCXG-04M / VCXG-04C 0 ... 255 DN12
VCXG-13M / .I/.I.XT / VCXG-13C / .I/.I.XT 0 ... 63 DN10
VCXG-15M/ .I/.I.XT / VCXG-15C/ .I/.I.XT 0 ... 255 DN12
VCXG-23M / VCXG-23C 0 ... 255 DN12
VCXG-24M / VCXG-24C 0 ... 255 DN12
VCXG-25M / .I/.I.XT / VCXG-25C / .I/.I.XT 0 ... 63 DN10
VCXG-32M / .I/.I.XT / VCXG-32C / .I/.I.XT 0 ... 255 DN12
VCXG-51M / .I/.I.XT / VCXG-51C / .I/.I.XT 0 ... 255 DN12
VCXG-53M / .I/.I.XT / VCXG-53C / .I/.I.XT 0 ... 63 DN10
VCXG-91M / VCXG-91C 0 ... 255 DN12
VCXG-124M / .I/.I.XT / VCXG-124C / .I/.I.XT 0 ... 255 DN12
VCXG-201M / VCXG-201C 0 … 255 DN12

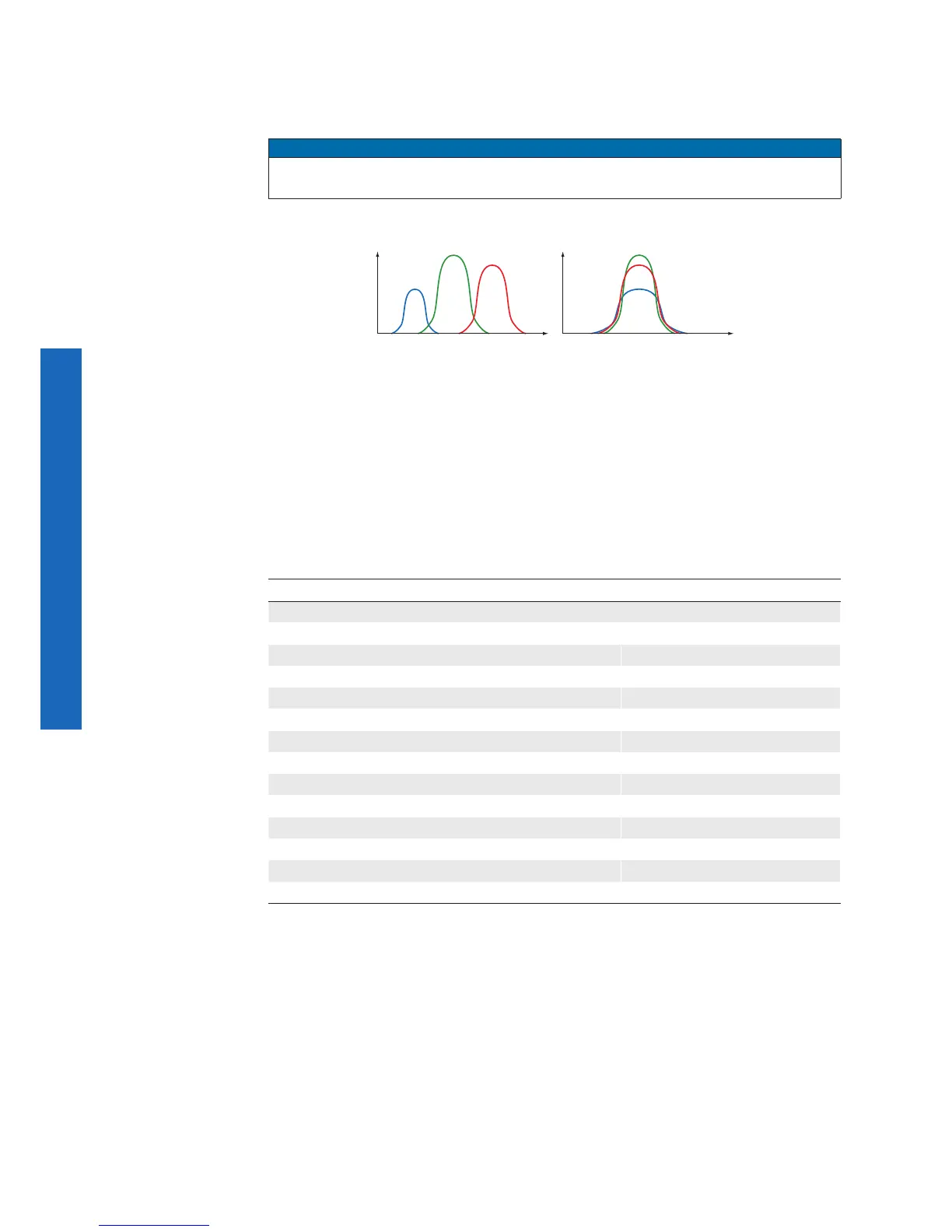

Figure46►
Examples of histo-
gramms for a non-ad-
justed image and for an
image after "one push"
white balance.
