4.4 VCXG.I / .I.XT IP Protection classes
Notice
Denition IP65 / IP67
IP65 say that the camera housing is dust tight and hose-proof. That means it is protect-
ed against water jet that is projected by a nozzle striking the housing from any direction.
IP67 stands for dust tightness besides the protection against submersion into 1 meter
deep water for up to 30 minutes. The desired protection level is given as long as the
difference in temperature between camera and water is less than 5 K and the water has
a temperature of 15 °C (+ 59 °F) ... 35 °C (+ 95 °F).
Caution
IP
Protection
In order to achieve the mentioned IP protection level, please note the follow-
ing information:

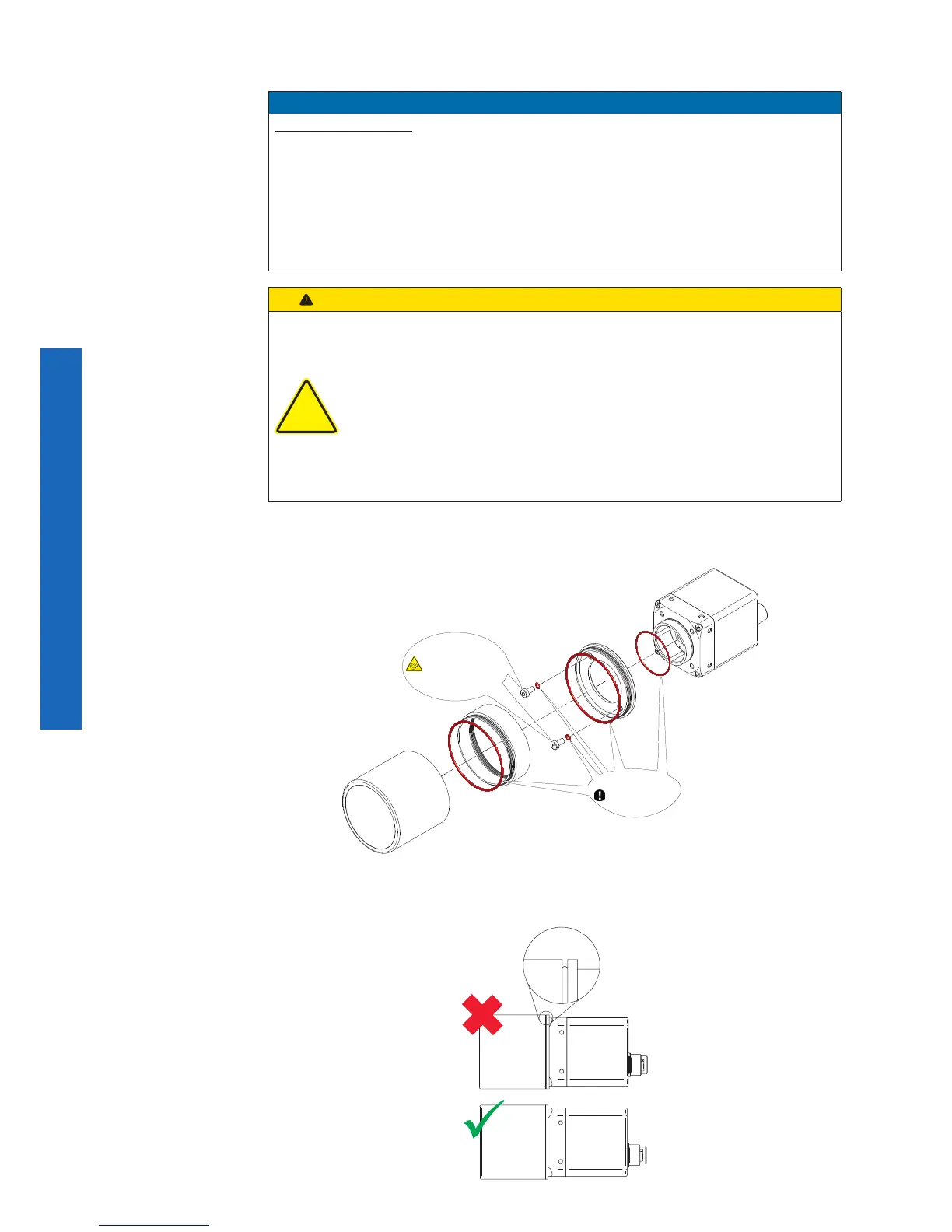

The tube needs to be screwed on gap-free as shown in the gure below.
The M12 connectors need to be tightened with a torque value of 0.4 Nm.
For that Baumer suggests the use of a torque driver (such as Wiha
TorqueVario
®
-S ESD) in combination with a wrench for assembling sensor/
actuator cables with M12 connector (such as Phoenix Contact SAC BIT
M12-D15).
Sealing rings
The peak torque while
tightening the
screws is 0.9 Nm.
Use a torque wrench!
Do not forget the seals!
Recommended grease
for easier installation:
ELKALUB GLS 867
Gap-free assembly
