Baumer VCXG .I - VCXG;.I;.I.XT Pixel Formats

64
Pixel depth: In general, pixel depth denes the number of possible different values for
each color channel. Mostly this will be 8 bit, which means 2
8
different "col-
ors".
For RGB or BGR these 8 bits per channel equal 24 bits overall.
Two bytes are needed for transmitting more than 8 bits per pixel - even if the
second byte is not completely lled with data. In order to save bandwidth, the
packed formats were introduced to Baumer CX cameras. In this formats, the
unused bits of one pixel are lled with data from the next pixel.
8 bit:
Byte 1 Byte 2 Byte 3
12 bit:
Byte 1 Byte 2
unused bits
Packed:
Byte 1 Byte 2 Byte 3
Pixel 0Pixel 1
7.1.2.2 Pixel Formats VCXG / .I/.I.XT
Camera Type Mono8 Mono10 Mono12 Mono12p Bayer RG8 Bayer RG10 Bayer RG12 Bayer RG12p RGB8 BGR8
Monochrome
VCXG-02M ■ ■ □ □ □ □ □ □ □ □
VCXG-04M ■ ■ ■ ■ □ □ □ □ □ □
VCXG-13M / .I/.I.XT ■ ■ □ □ □ □ □ □ □ □
VCXG-15M / .I/.I.XT ■ ■ ■ ■ □ □ □ □ □ □
VCXG-23M ■ ■ ■ ■ □ □ □ □ □ □
VCXG-24M ■ ■ ■ ■ □ □ □ □ □ □
VCXG-25M / .I/.I.XT ■ ■ □ □ □ □ □ □ □ □
VCXG-32M / .I/.I.XT ■ ■ ■ ■ □ □ □ □ □ □
VCXG-51M / .I/.I.XT ■ ■ ■ ■ □ □ □ □ □ □
VCXG-53M / .I/.I.XT ■ ■ □ □ □ □ □ □ □ □
VCXG-91M ■ ■ ■ ■ □ □ □ □ □ □
VCXG-124M / .I/.I.XT ■ ■ ■ ■ □ □ □ □ □ □
VCXG-201M.R ■ ■ ■ ■ □ □ □ □ □ □

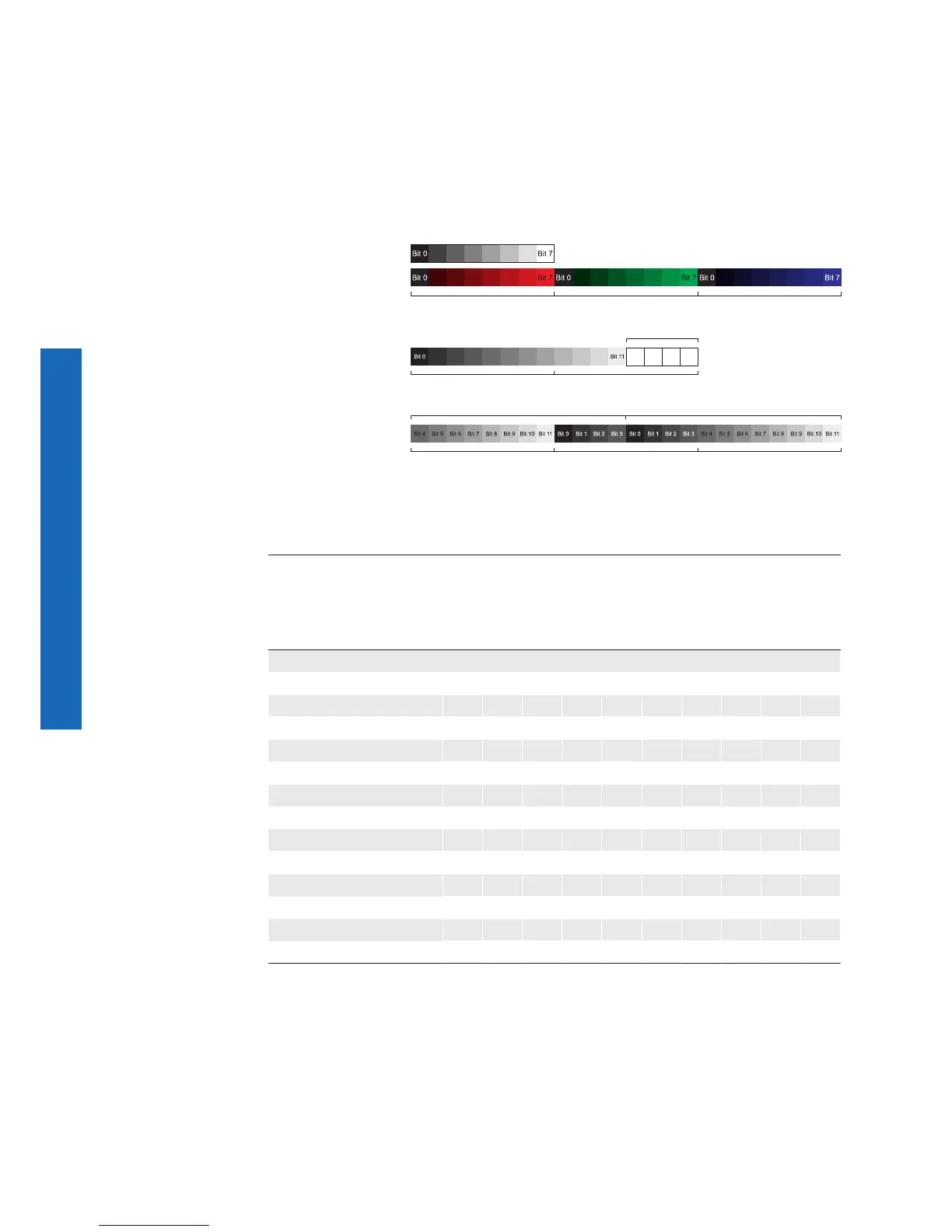

Figure22►
Bit string of Mono 8 bit
and RGB 8 bit.
Figure23►
Spreadingsadf of Mono
12 bit over two bytes.
Figure24►
Spreading of two pix-
els in Mono 12 bit over
three bytes (packed
mode).
