Baumer VCXG .I - Sensor Position Accuracy; VCXG Position Accuracy

47
6.2 Sensor position accuracy
The typical accuracy by assumption of the root mean square value is displayed in the
gures and the tables below:
± YM
± YR
± XR
Z
photosensitive
surface of the
sensor
front filter glass
for color cameras
thickness:
1 ± 0.1 mm
cover glass
of sensor
thickness: D
A
14,5±0,35
± XM
±
6.2.1 VCXG
Camera
Type
± x
M
[mm]
± y
M
[mm]
± x
R
[mm]
± Y
R
[mm]
z***
typ
[mm]
± α
typ
[°]
A***
[mm]
D**
[mm]
VCXG-02* 0.05 0.05 0.05 0.05 17.55 ± 0.100 0.6 16.6 0.55
VCXG-04* 0.07 0.07 0.07 0.07 17.63 ± 0.070 0.6 16.4 0.70
VCXG-13* 0.05 0.05 0.05 0.05 17.55 ± 0.100 0.6 16.6 0.55
VCXG-15* 0.07 0.07 0.07 0.07 17.63 ± 0.070 0.6 16.4 0.70
VCXG-23* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 15.8 0.50
VCXG-24* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.4 15.8 0.50
VCXG-25* 0.05 0.05 0.05 0.05 17.65 ± 0.070 0.6 16.5 0.55
VCXG-32* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG-51* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG-53* 0.05 0.05 0.05 0.05 17.65 ± 0.070 0.6 16.5 0.55
VCXG-91* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG-124* 0.17 0.17 0.17 0.17 17.63 ± 0.070 0.6 16.5 0.70
VCXG-201* 0.06 0.06 0.06 0.06 17.63 ± 0.070 0.6 15.8 0.50

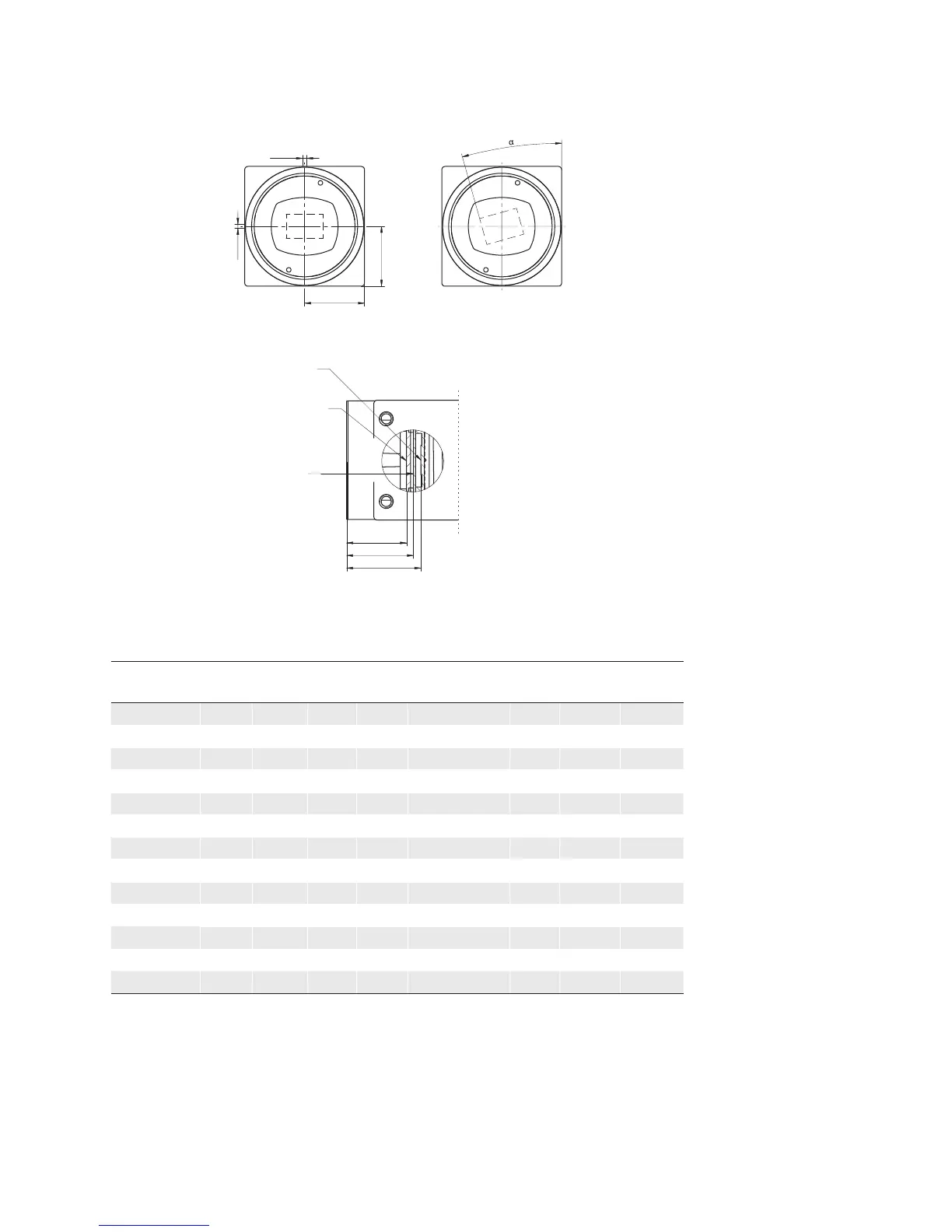

◄Figure21
Sensor accuracy of the
Baumer CX series
typical accuracy by
assumption of the root
mean square value
* C or M
** Dimension D in this
table is from manufac-
turer datasheet
*** For color add 0.32
mm to nominal value
