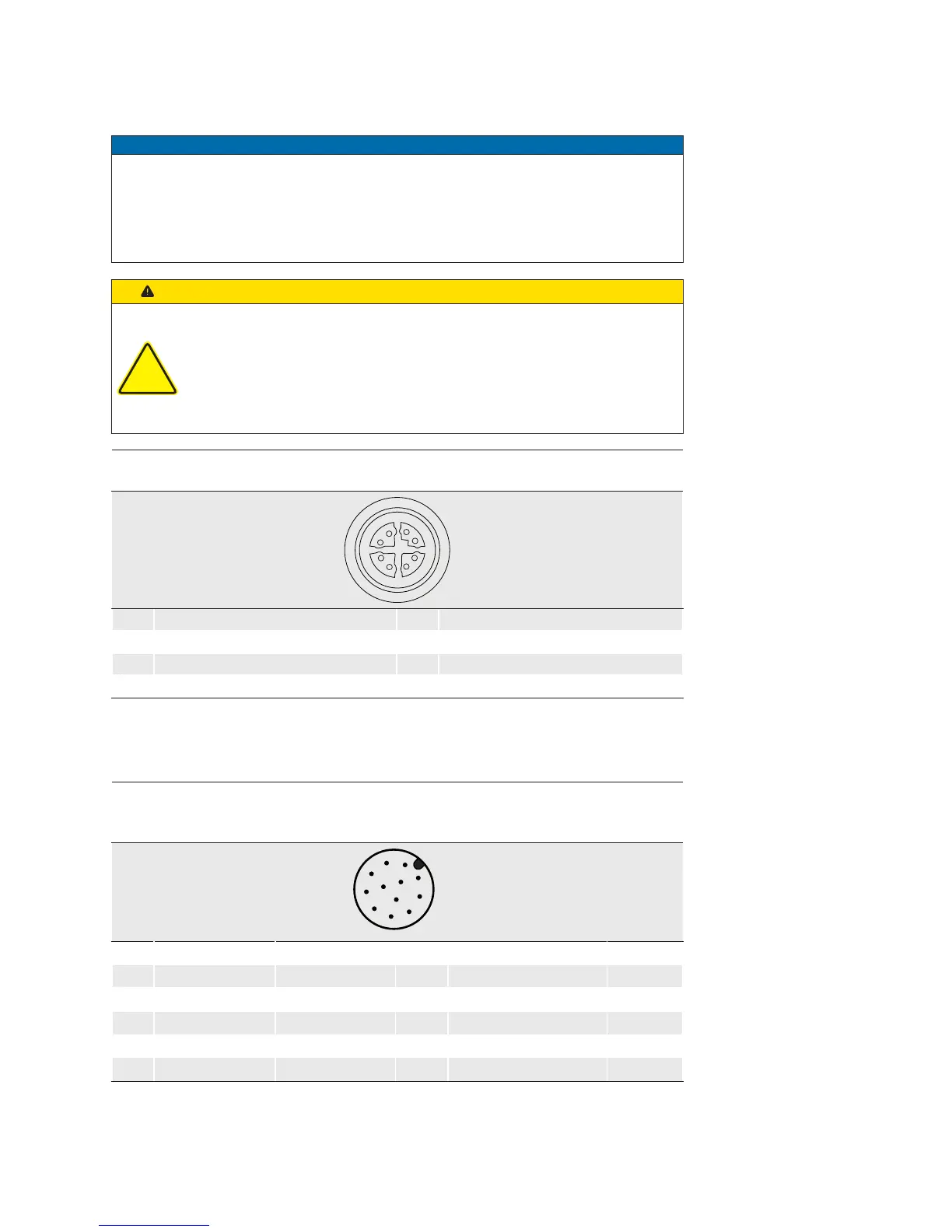

5.2 VCXG.I / .XT
5.2.1 Ethernet Interface
Notice
The camera supports PoE (Power over Ethernet) IEEE 802.3af Clause 33, 48V Power
supply.
If the camera is simultaneously powered by the Power supply / Digital-IO port and the
Ethernet port (PoE), then the power supply via the Power supply / Digital-IO port is
prioritized.
Caution!
IP
Protection
In order to achieve the mentioned IP protection level, the M12 connectors
need to be tightened with a torque value of 0.4 Nm.
For that Baumer suggests the use of a torque driver (such as Wiha
TorqueVario
®
-S ESD) in combination with a wrench for assembling sensor/
actuator cables with M12 connector (such as Phoenix Contact SAC BIT
M12-D15).
Ethernet
(SACC-CI-M12FS-8CON-L180-10G)
2
1
8
7
6
5
4
3
1 MX1+ 5 MX4+
2 MX1- 6 MX4-
3 MX2+ 7 MX3-
4 MX2- 8 MX3+
5.2.2 Power Supply and IOs
Power Supply / Digital-IOs (on camera side)
(SACC-CI-M12MS-12CON-L180)
wire colors of the connecting cable (ordered separately)
8
9
10
11
12
5
7
3
1
4
2
6
1 Power V
CC
brown
7 OUT3 (Line6)
black
2 GND (Power)
blue
8 IN3 (Line2)
grey
3 IN1 (Line0)
white
9 OUT4 (Line7)
red
4 OUT1 (Line4)
green
10 IN4 (Line3)
violet
5 IN2 (Line1)
pink
11 GND (IO) grey-pink
6 OUT2 (Line5)
yellow
12 Power (IO) red-blue
