5.1.5 LED Signaling
21
LED Signal Meaning
1
green static link active
green ash receiving
2
yellow static error
yellow ash transmitting

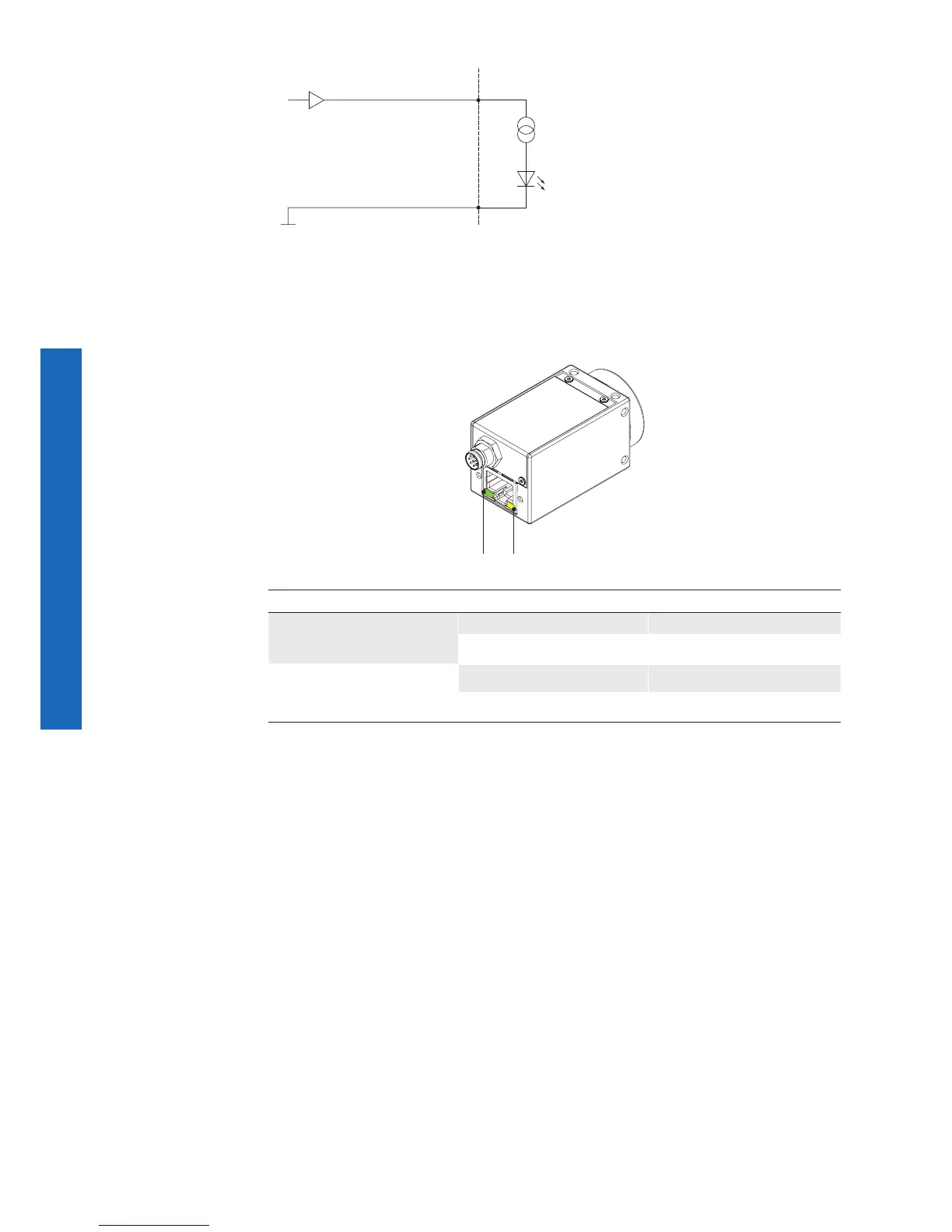

Figure2►
LED positions on Bau-
mer VCXG cameras.
