Commissioning
Compact manual b maXX
®
BM4400, BM4600, BM4700
Document no.: 5.06014.02
57
of 94
6
Data set
save
This data set now should be saved.

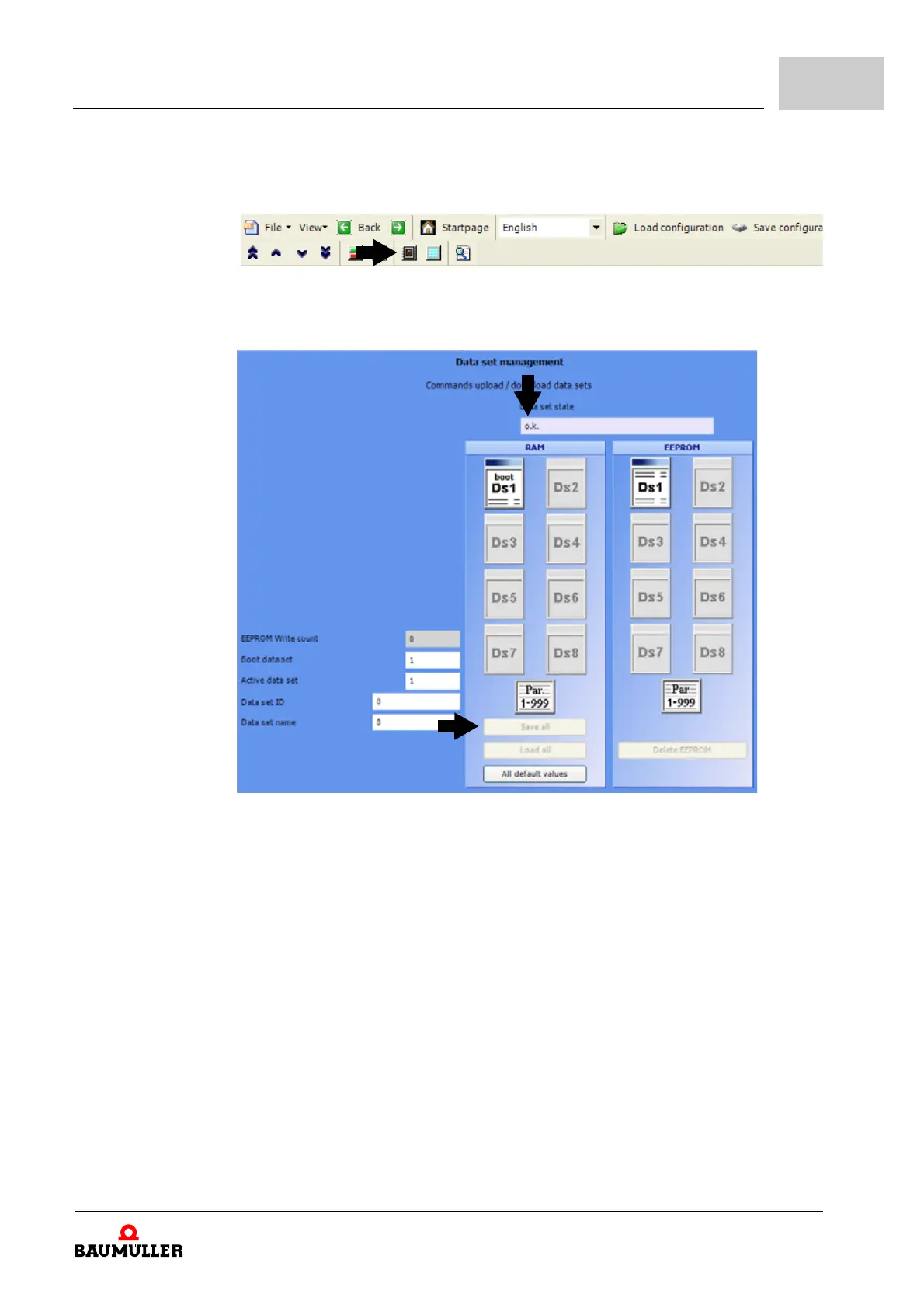

54Click in the icon bar on the icon ’data set management’.
Figure 43: ProDrive: Data set management - icon bar
55Click in the data set management on the button ’save all’.
Figure 44: ProDrive: Data set management
56Wait until next to ’data set status’ is shown: ’o.k.’
Thus the data set is saved in the EEPROM.
Drive
switch off
To complete commissioning we switch off the drive.
57Turn off the voltage supply for the safety relay (if existing).
58Separate over the accordant switching elements the device from the mains- and con-
trol voltage.
Thus the commissioning is successfully completed.
