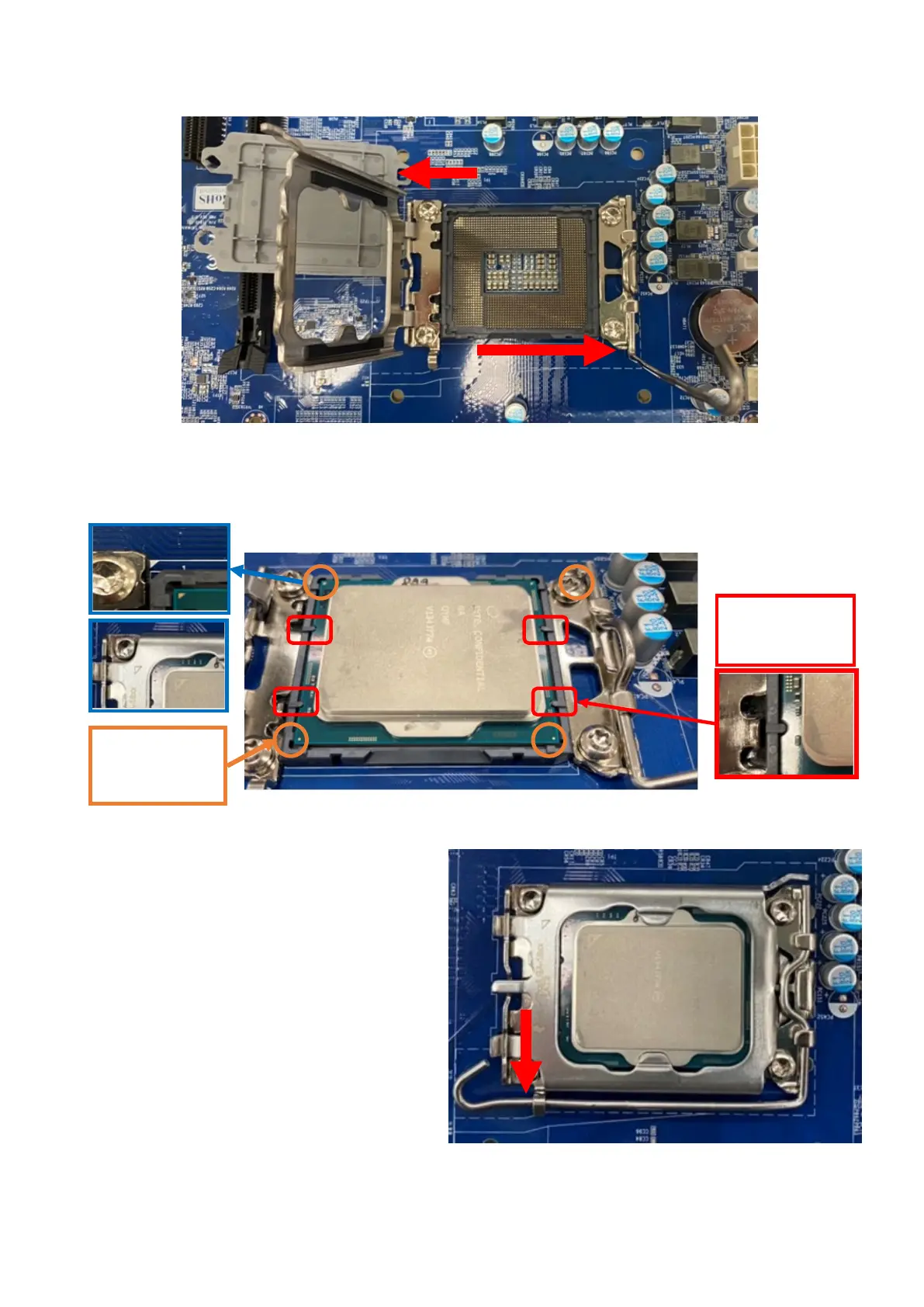

4. Position the CPU over the socket, making sure that the gold triangle is on the top-left
corner of the socket then fit the socket alignment key into the CPU notch.
5. Pull back the load lever, then push the
load lever (E) until it snaps into the
retention tab.
Keying Features
4x
Processor
Corners 4x
D
C
E
