RX170Q User’s Manual
RX170Q User’s Manual
21

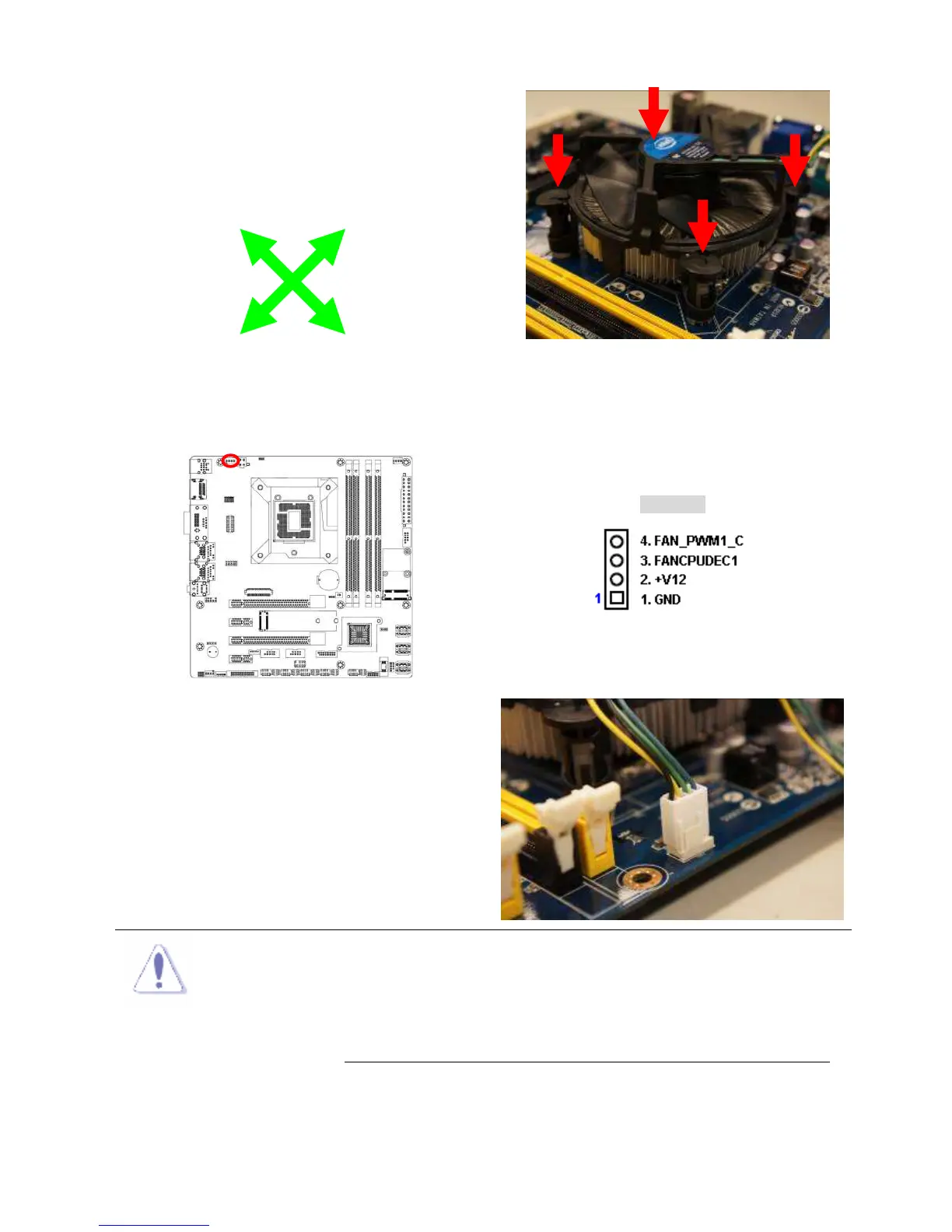

2. Push down two fasteners at a time in a
diagonal sequence to secure the heatsink and fan
assembly in place.
3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
FAN 1
CPU FAN
Do not forget to connect the fan cables to the fan
connectors. Insufficient air flow inside the system may
damage the motherboard components.
These are not jumpers! DO NOT place jumper caps on the
fan connectors.
1.3.3 Uninstalling the CPU Heatsink and Fan
To uninstall the CPU heatsink and fan:
A
A
B
B
A
B
A
B
