RX170Q User’s Manual
RX170Q User’s Manual
41
1. SIO_GPIO0
3. SIO_GPIO1
5. SIO_GPIO2
7. SIO_GPIO3
9. SMB_CLK_
RESUME
11. GND
2. SIO_GPIO4
4. SIO_GPIO5
6. SIO_GPIO6
8. SIO_GPIO7
10. SMB_DATA_
RESUME
12. +5Vsb
1
2

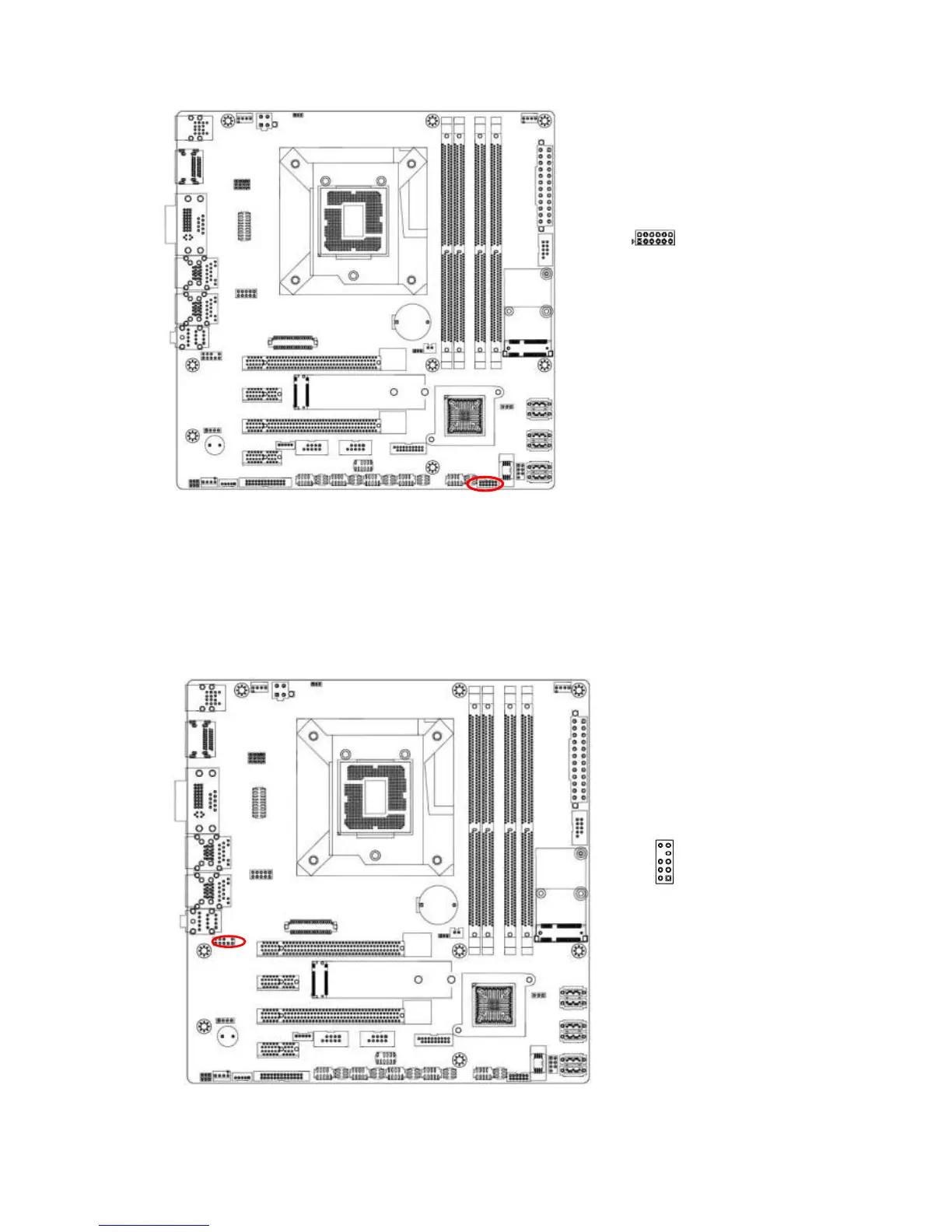

1.7.13 Front Audio connector (FP_AUDIO1)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD
Audio or legacy AC ‘97 (optional) audio standard.
FP_AUDIO1
9. LINE2L
7. SENSEB
5. LINE2R
3. MIC2R
1. MIC2L
10. LINE2-JD
8. NC
6. MIC2-JD
4. +3.3
2. GND
12
