RX170Q User’s Manual
40 RX170Q User’s Manual

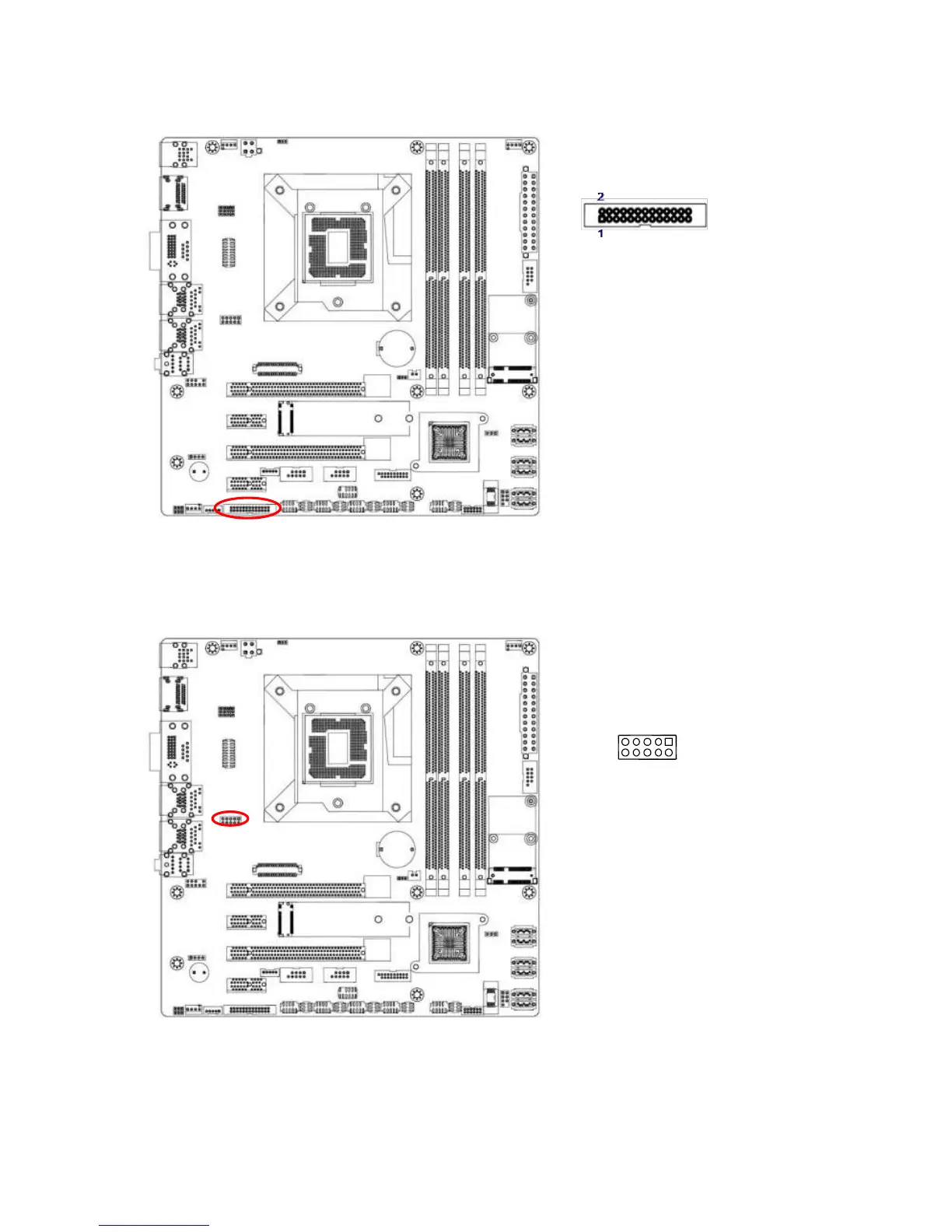

1.7.10 LPT Port Connector (LPT)
1. LPT_STB#
3. LPT_PD0
5. LPT_PD1
7. LPT_PD2
9. LPT_PD3
11. LPT_PD4
13. LPT_PD5
15. LPT_PD6
17. LPT_PD7
19. LPT_ACK#
21. LPT_BUSY
23. LPT_PE
25.LPT_SLCT
2. LPT_AFD#
4. LPT_ERR#
6. LPT_INIT#
8. LPT_SLIN#
10. GND
12. GND
14. GND
16. GND
18. GND
20. GND
22. GND
24. GND
26. NC
1.7.11 LAN LED status connector (LANLED1)
1.+3V_Dual
2.+3V_Dual
3.LAN1_LED
4.GND
5.+3V_Dual
6.+3V_Dual
7.GND
8. GND
9.+3V_Dual
10.+3V_Dual
1
2
1.7.12 8 bit GPIO header (JDIO1)
