BCM RX170Q - USB3.0 Connector(USB56)

RX170Q User’s Manual
RX170Q User’s Manual
39
1
1.+5VUSB
2. USB-
3. USB+
4. GND
5. NC

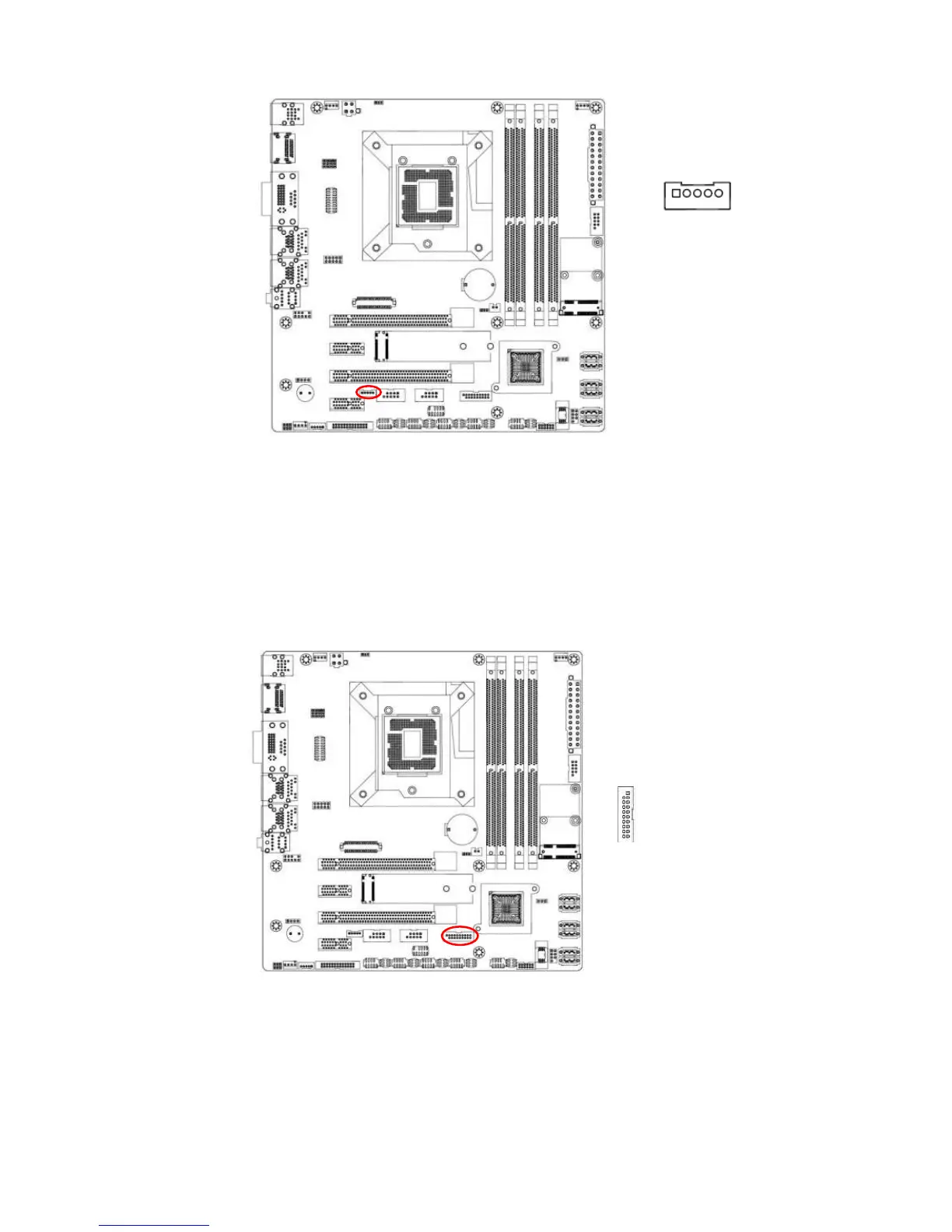

1.7.9 USB3.0 connector (USB56)
This connector provides 2 USB3.0 port. Connect the optional USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system chassis.
These USB connectors comply with USB 3.0 specification that supports up to 5Gbps
connection speed.
USB56
1
1011
19
1. +5V
2. USB3_RX-
3. USB3_RX+
4. GND
5. USB3_TX-
6. USB3_TX+
7. GND
8. USB-
9. USB+
10. NC
19. +5V
18. USB3_RX-
17. USB3_RX+
16. GND
15. USB3_TX-
14. USB3_TX+
13. GND
12. USB-
11. USB+
