BCM RX170Q - USB Connector (USB13)

RX170Q User’s Manual
38 RX170Q User’s Manual
These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
USB
Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB module is purchased separately.

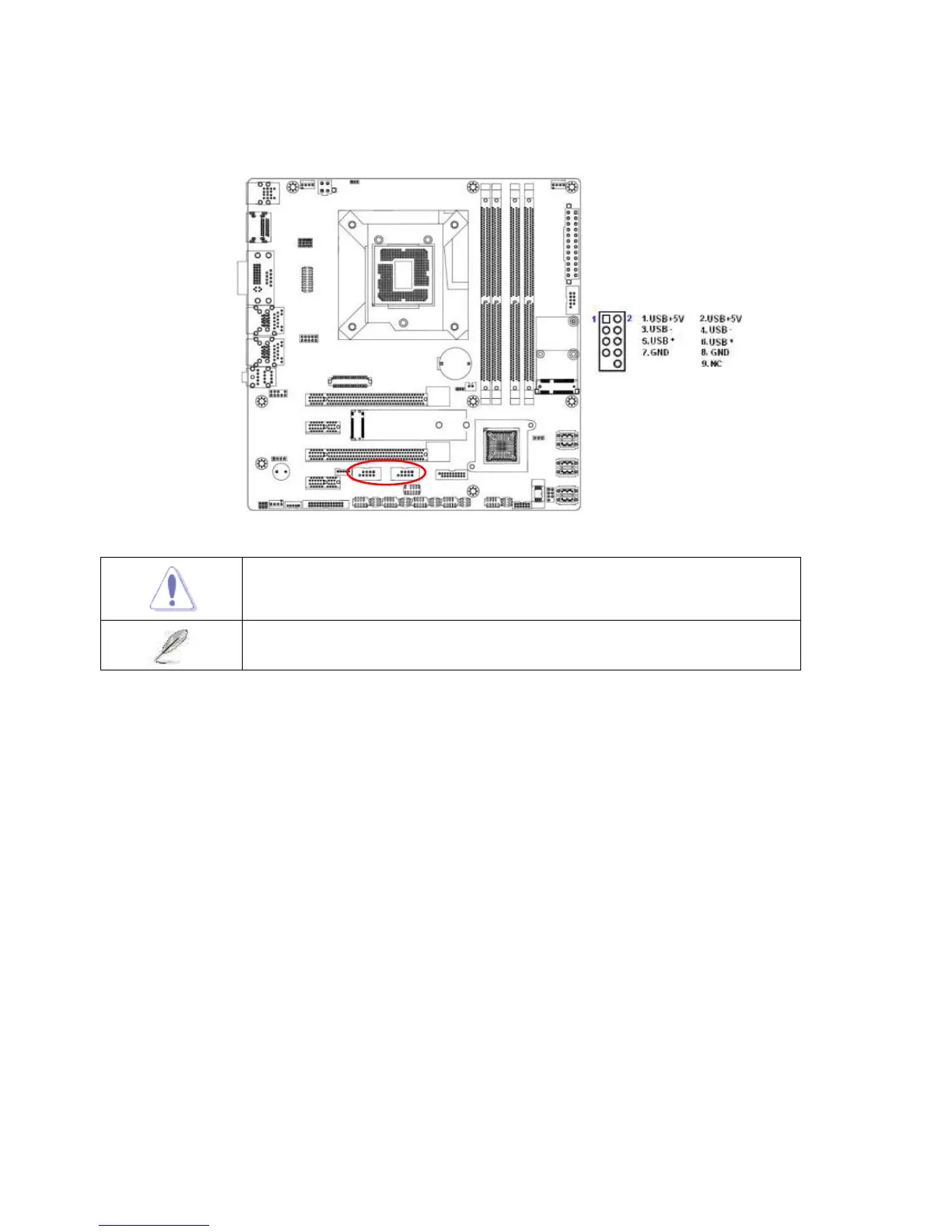

1.7.8 USB connectors (USB13)
These connectors are for one USB 2.0 ports. Connect the optional USB module cable to any
of these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to 480
Mbps connection speed.
