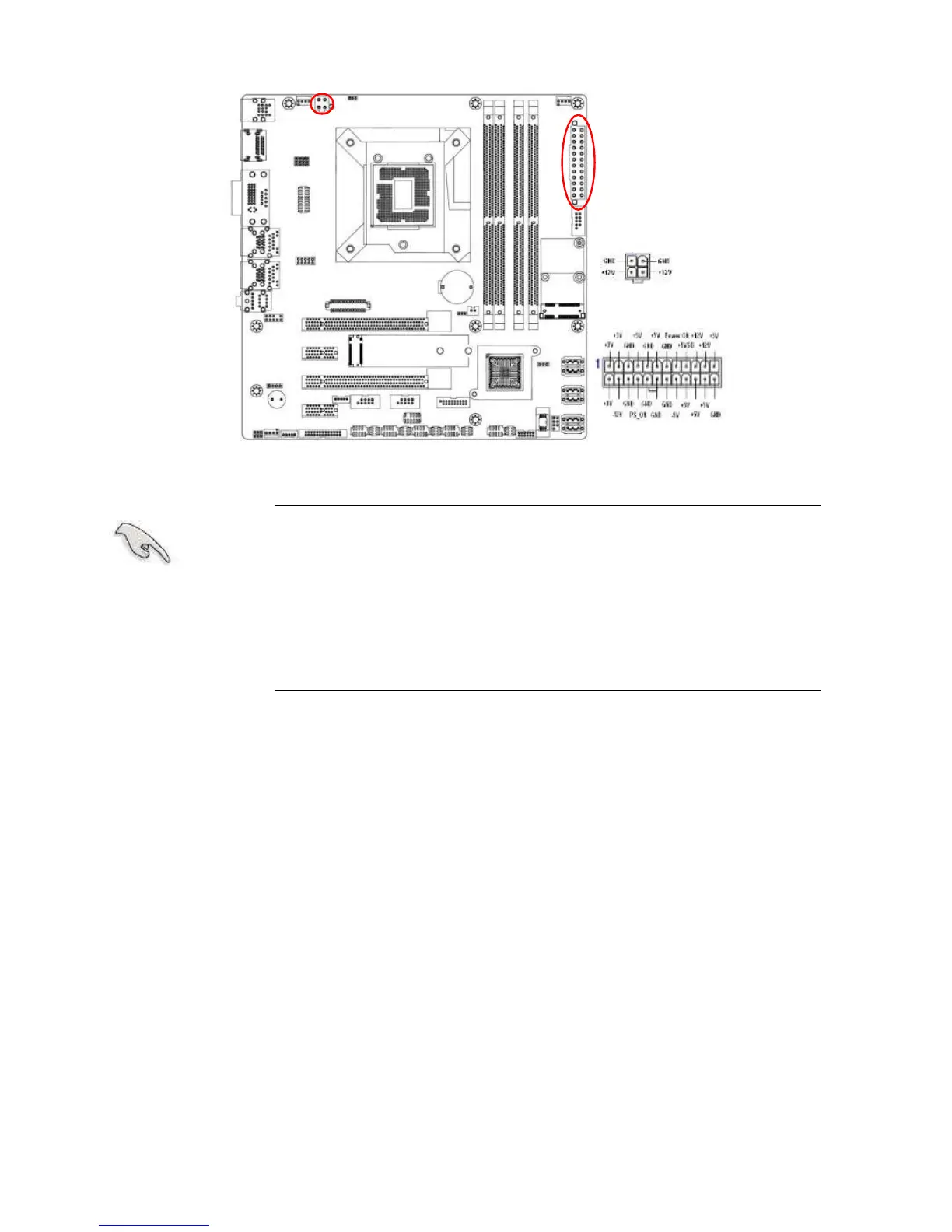

ATX12V1
EATXPWR1
EATXPWR1
 Use of a PSU with a higher power output is recommended when
configuring a system with more power-consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
 Make sure that your power supply unit (PSU) can provide at
least the minimum power required by your system. See the
table below for details.
1.7.5 Serial Port connectors (COM1~5)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
