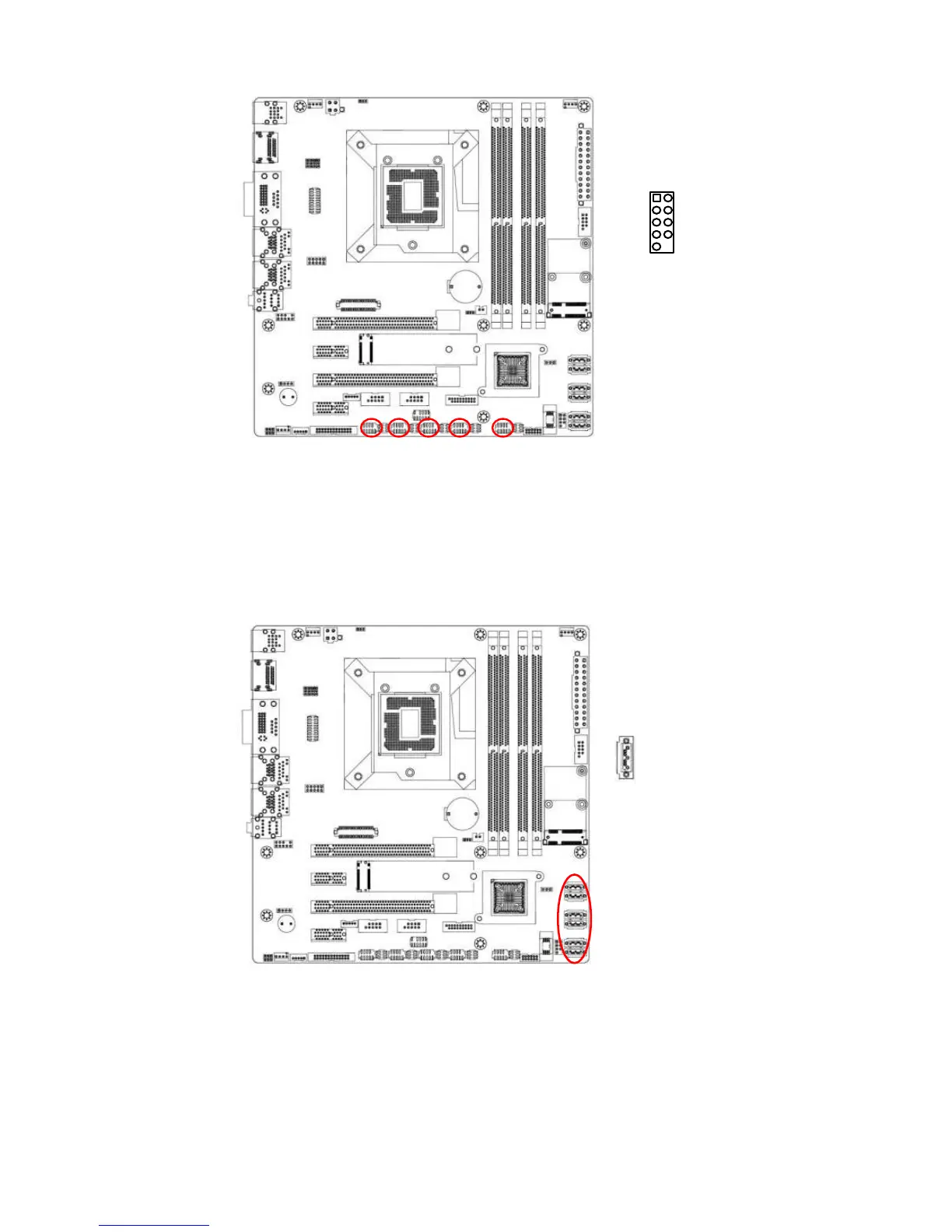

1.7.6 Serial ATA Connector (SATA1~6 )
SATA 1~6 support SATA 3.0. and SATA 6 is shared by M.2 slot. These connectors are for the
Serial ATA signal cables for Serial ATA hard disk drives.
SATA
1. GND
2. TX+
3. TX-
4. GND
5. RX-
6. RX+
7. GND
1
1.7.7 USB connectors (USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the optional USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system chassis.
