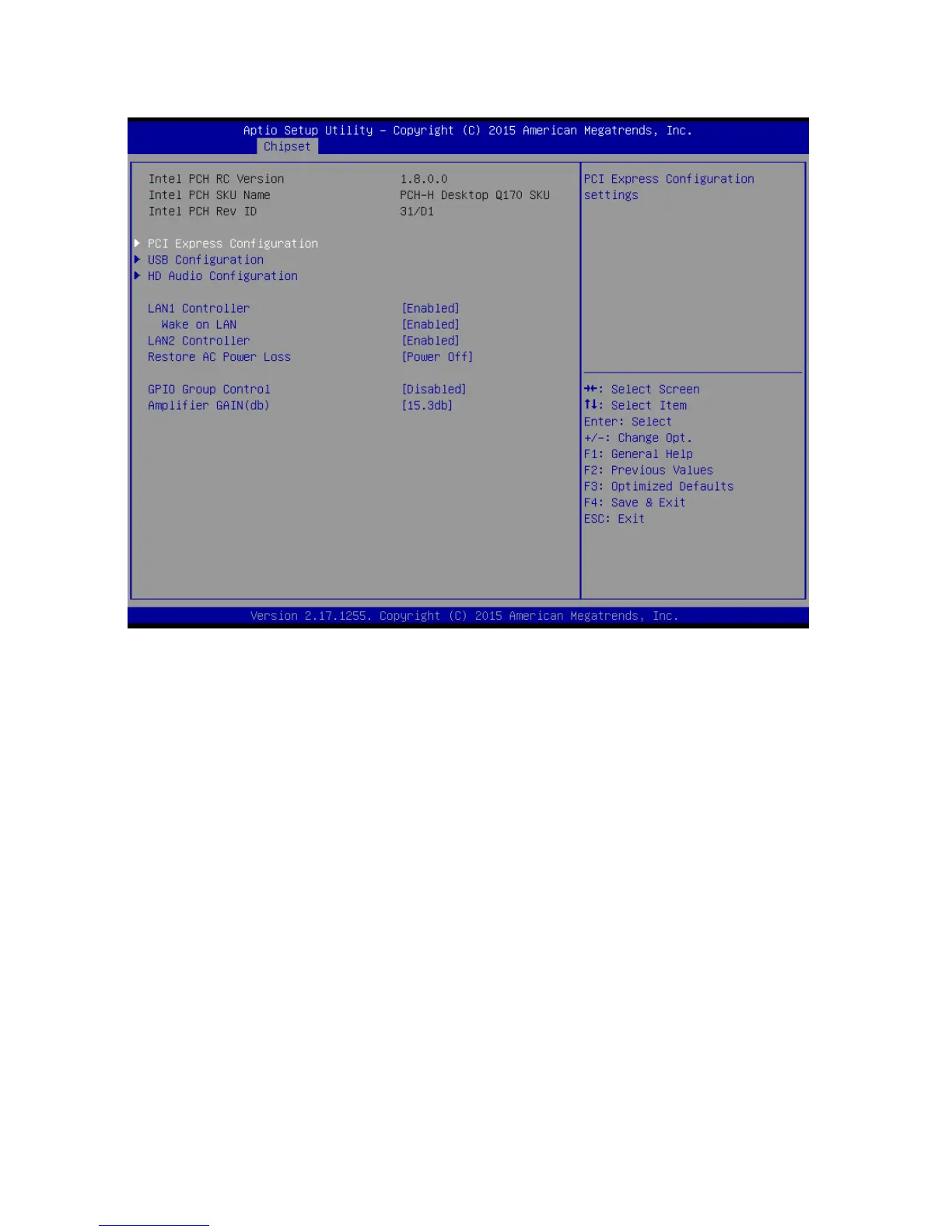

2.5.2 PCH-IO configuration
 Lan1 Controller [Enabled]
Enable or Disable onboard Lan1
Configuration options: [Disabled][Enabled]
 Wake on lan [Auto]
Enable or Disable integrated LAN to wake the system
Configuration options: [Disabled][Enabled]
 Lan2 Controller [Enabled]
Enable or Disable onboard Lan2
Configuration options: [Disabled][Enabled]
 Restore AC power Loss [Power off]
Specify what state to go to when power is re-applied after a power failure.
Configuration options: [Power on][Power off][Last State]
 GPIO Group Control [Disabled]
Configure the digital GPIO pins
Configuration options: [Disabled][Enabled]
 Amplifier GAIN(db) [15.3db]
Select Amplifier GAIN value
Configuration options: [15.3db][21.2db][27.2db][31.8db]
