RX170Q User’s Manual
42 RX170Q User’s Manual

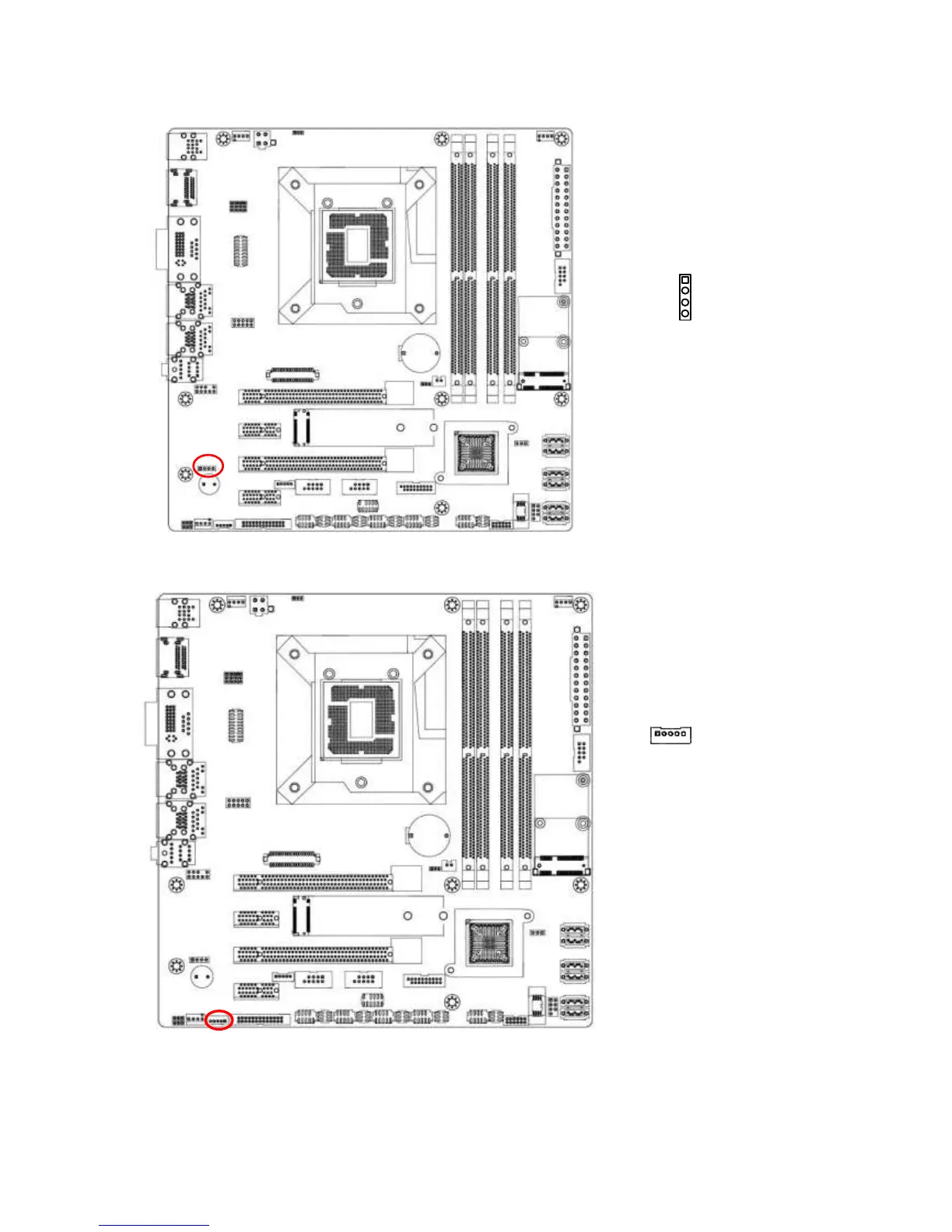

1.7.14 Amplifier Connector (JAMP1)
JAMP1
1
1. AMP_L-
2. AMP_L+
3. AMP_R-
4. AMP_R+
1.7.15 LVDS back light connector (JBKL1)
1
1. +12V_BL
2. GND
3. BL_EN
4. BRIGHT1
5. +5V_BL
