2.5.1.1.1 LCD Control
 LVDS Control [Disabled]
Enabled or Disabled LVDS
Configuration options: [Enabled][Disabled]
 LVDS panel Type[1280x760 18bit single channel]
Select LVDS panel type

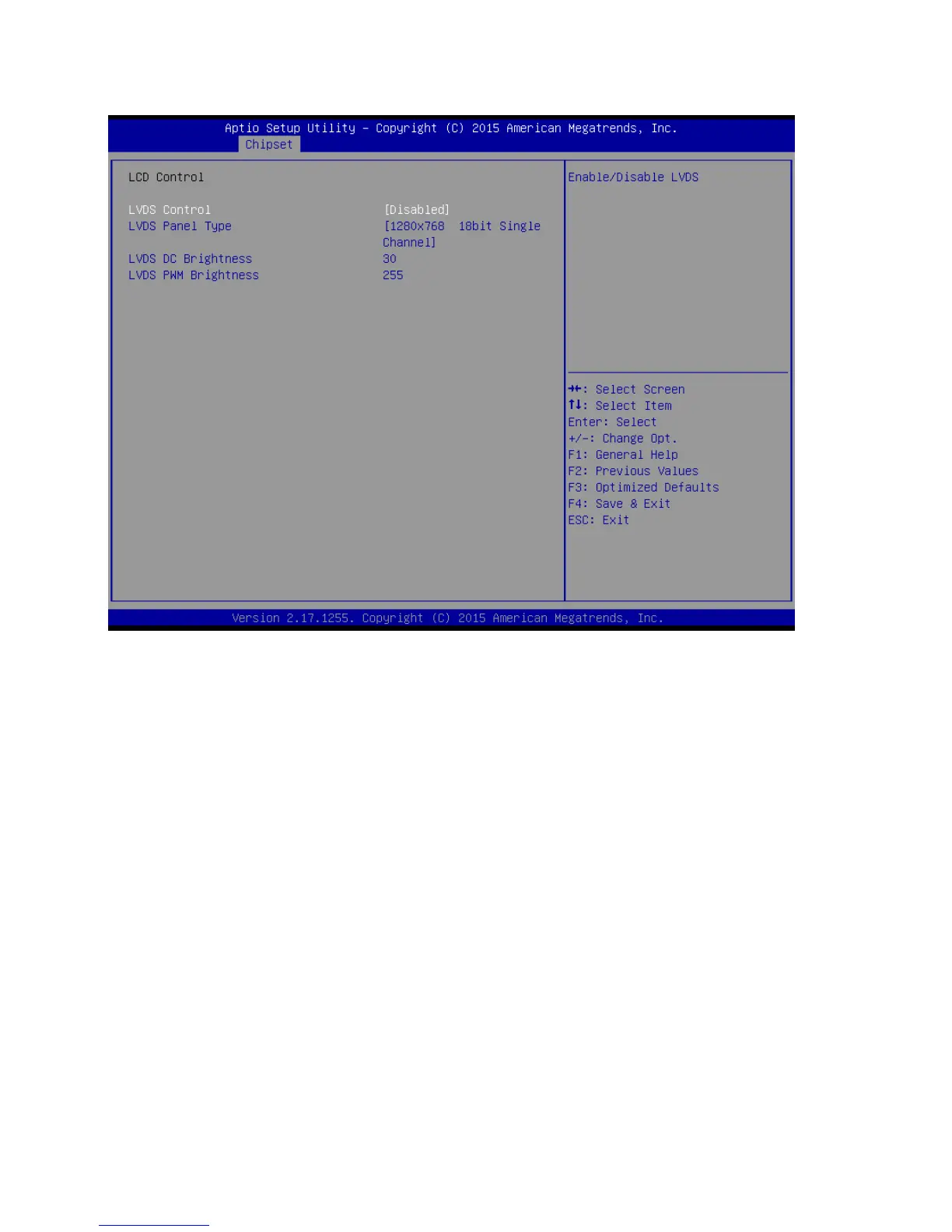

Configuration options: See below picture
