7 Diagnosis
7.1 Diagnostic methods
The EL3773 offers two methods of diagnosis:
• Process data
Some diagnostic details are given in the status word of the process data, see Process data [}86].
• Diag Messages
Diag Messages can be read at any time from the CoE object 0x10F3 [}97].
System Manager Logger Output
Explanation of some typical EL3773 logger messages:

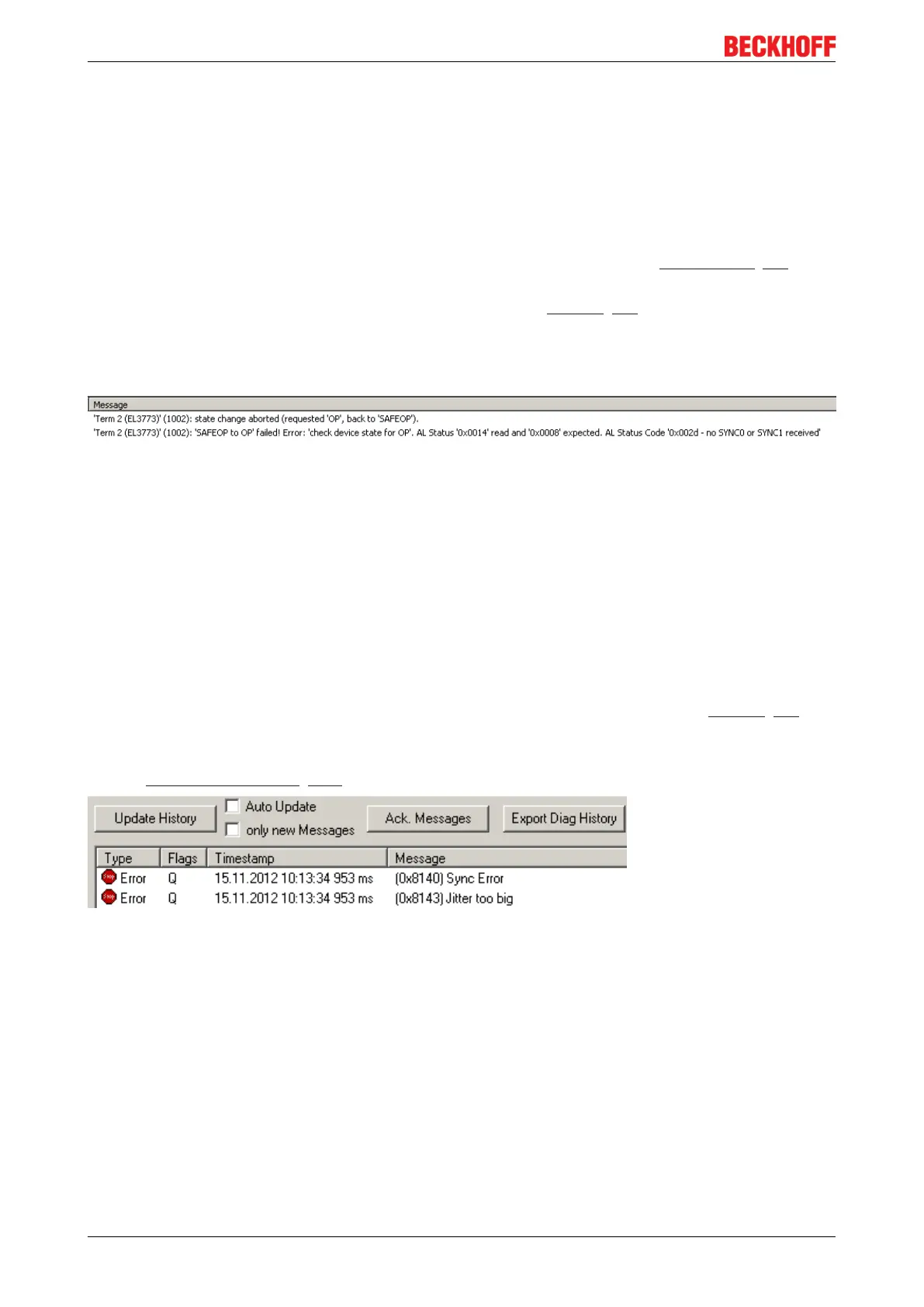

Fig.169: EL3773 logger messages
• Parameter written too high, 0x06090031
CoE parameter is too large; the firmware limits the values to be written
• Parameter written too low, 0x06090032
CoE parameter is too small; the firmware limits the values to be written
• Data can not be transferred or stored to the application because of the present device state,
0x08000022
No supply voltage, terminal partly out of service
Diag Messages
Diag Messages designates a system for the transmission of messages from the EtherCAT Slave to the
EtherCAT Master/TwinCAT. The messages are stored by the device in its own CoE under 0x10F3 [}97] and
can be read by the application or the System Manager. An error message referenced via a code is output for
each event stored in the device (warning, error, status change).
See the Diag Messages notes [}150] regarding this.
Fig.170: EL3773 Diag Messages
