Beckhoff EL3773 - Fig. 105 Process Image of the EL3773 in the Twincat System Manager

Commissioning
EL377390 Version: 2.5
Process image
The EL3773 is inserted into the configuration by default with the 10-fold oversampling process image and
DC timestamp:

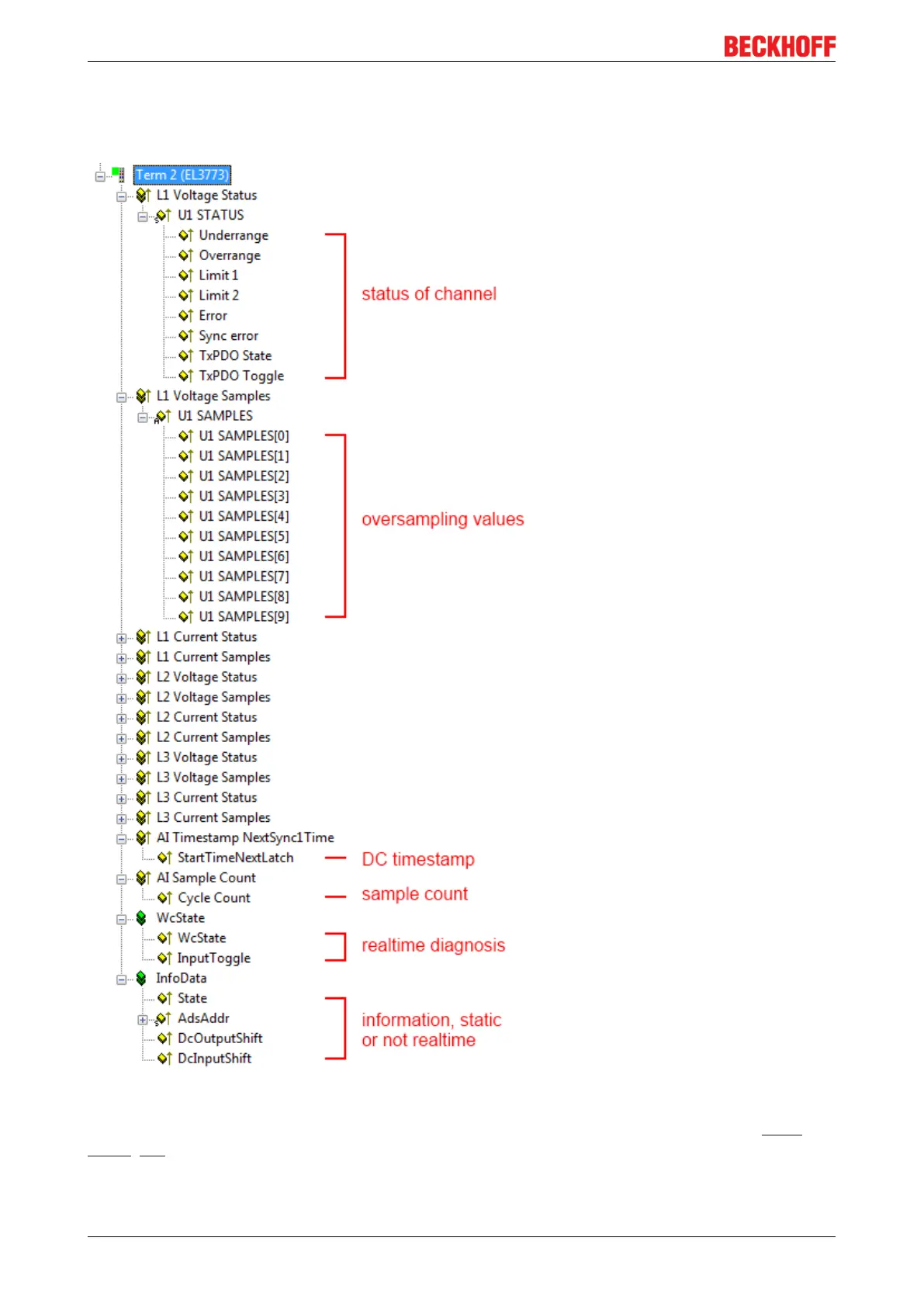

Fig.105: Process image of the EL3773 in the TwinCAT System Manager
It is urgently recommended to evaluate the offered diagnostic values in the controller, e.g. see the Notes
page [}76].
In particular the EL3773 offers the following cyclic information:
