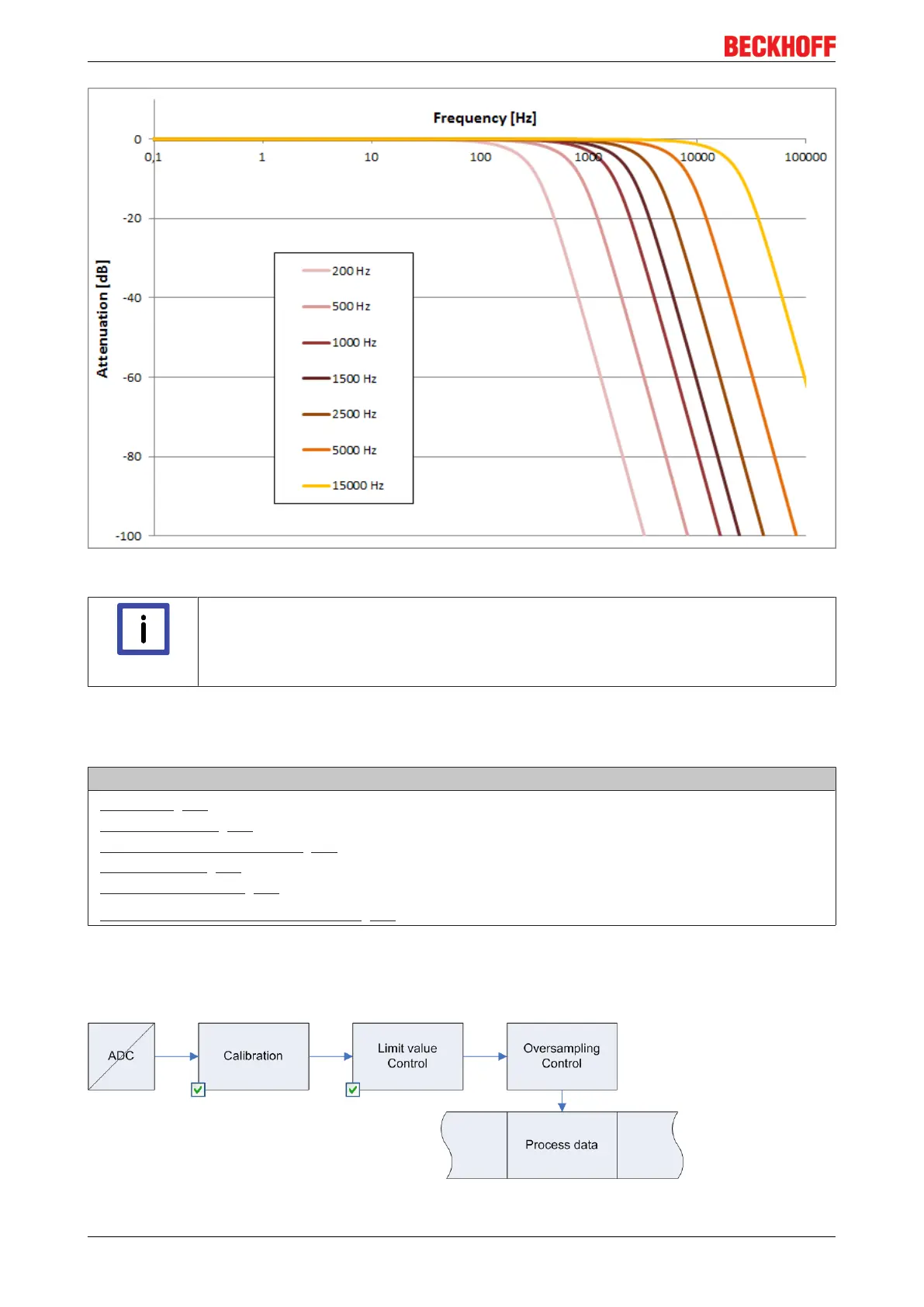

Fig.100: Amplitude curve
Note
Changes in the CoE directory
In case of changes to the CoE default parameters, it is essential that corresponding values
are entered in the start-up list, so that in the case of exchange the EL3773 operates again
as foreseen in the application.
6.5 Process data
Table of contents
• Data flow [}86]
• Data processing [}87]
• Predefined PDO Assignment [}89]
• Process image [}90]
• Control/status word [}91]
• Synchronization and conversion time [}92]
Data flow
The amplitude values are measured with 16-bit resolution and provided as oversampling packets in the
process image for cyclic transmission.
Fig.101: Process data flow EL3773
