Beckhoff EL3773 - Twincat 3 Procedure; Fig. 114 Oversampling PDO of the El37 Xx Series and in the Comparison with El31 Xx

Commissioning
EL3773106 Version: 2.5

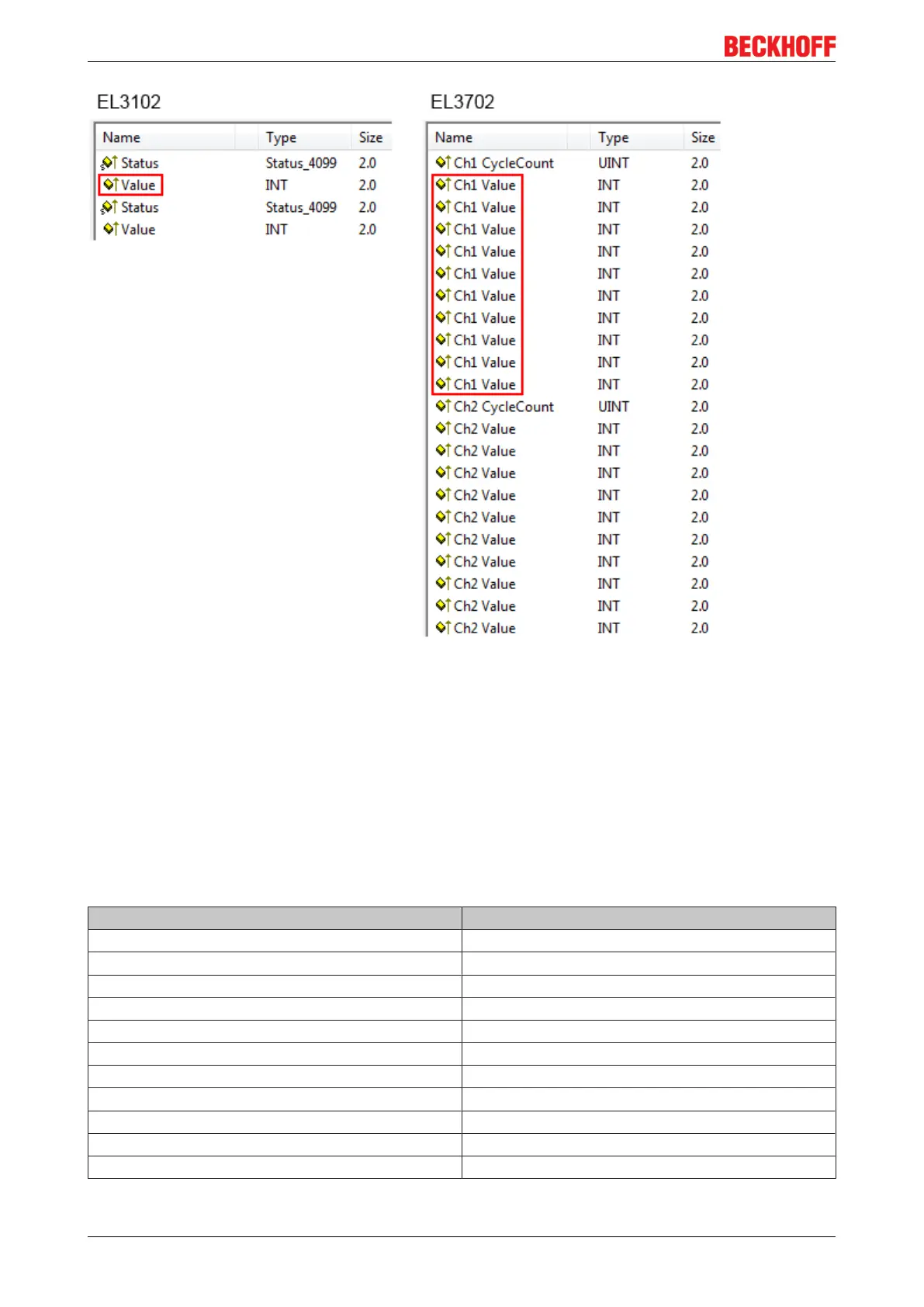

Fig.114: Oversampling PDO of the EL37xx series and in the comparison with EL31xx
Accordingly the Scope2 (TC2) or ScopeView (TC3) can read in and display several PDOs per cycle in
correct time.
6.8.1 TwinCAT 3 procedure
From TwinCAT 3.1 build 4012 and using the revision as below specified in the configuration, the integrated
ScopeView recognizes in its variable browser that the oversampling data is an array package and activates
ForceOversampling automatically. The array as a whole must be selected using AddSymbol (see description
in the next section).The extended PDO name provides the basis for this. Since a specific revision of the
respective terminal ScopeView is able to detect the array type of a set of variables autonomous.
Terminal Revision
EL4732 all
EL4712 all
EL3783 EL3783-0000-0017
EL3773 EL3773-0000-0019
EL3751 all
EL3742 all
EL3702 all
EL3632 all
EL2262 all
EL1262-0050 all
EL1262 all
