Operation
EL691058 Version: 1.4.1

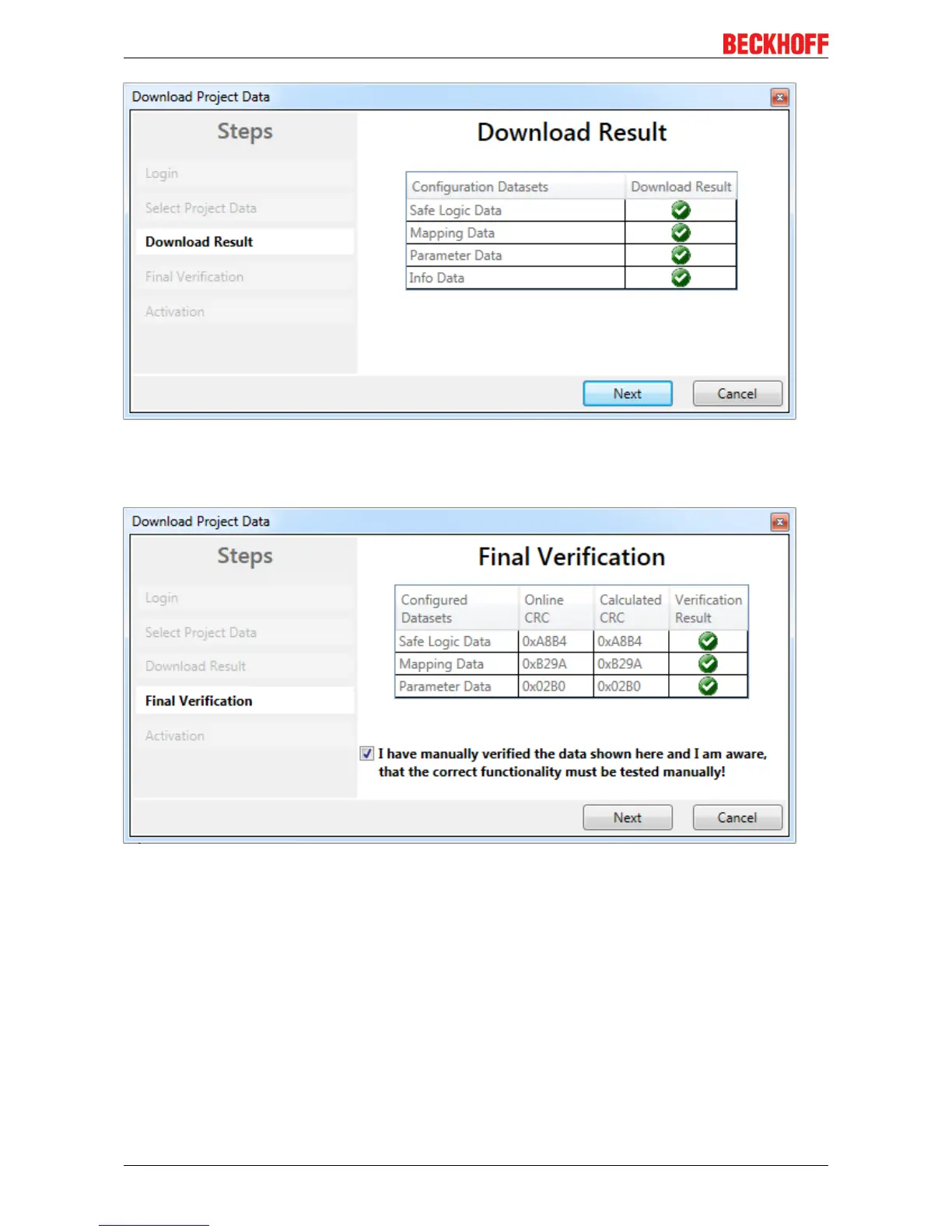

Fig.66: Download Project Data – The Download Result dialog
Once the download is complete, the download results are displayed. Use the Next button to move to the next
dialog.
Fig.67: Download Project Data – The Final Verification dialog
The locally calculated CRCs and the online CRCs of the safety project are displayed in the Final Verification
dialog. They are automatically checked for equality and displayed via the column Verification Result. The
user must also check these data for equality and then confirm this by ticking the checkbox. Use the Next
button to move to the next dialog.
