Parameterization and commissioning
EL6752 53Version: 2.1

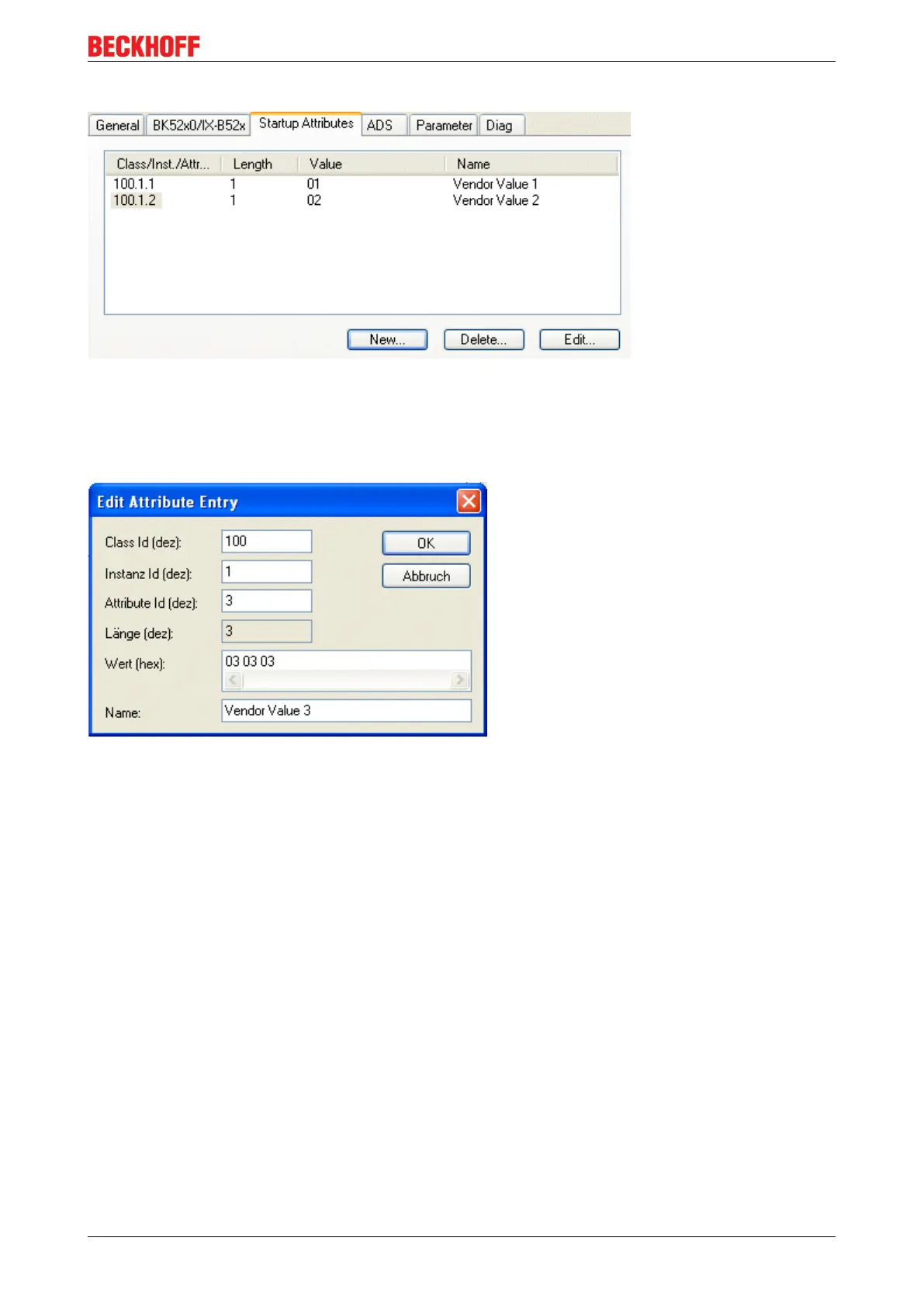

“Startup Attributes” tab
Fig.46: “Startup Attributes” tab
The startup attributes are sent to the slave before the cyclic data exchange. The messages are sent before
the actual IO data traffic.
Use the “New” or “Edit” button for configuration:
Fig.47: Edit an attribute entry
The attributes are initialized via Class/Instance/Attributes. Note the “Value” specification in hexadecimal
form.
