Parameterization and commissioning
EL6752 61Version: 2.1
• “Diag” tab [}64]
"DeviceNet Node" tab

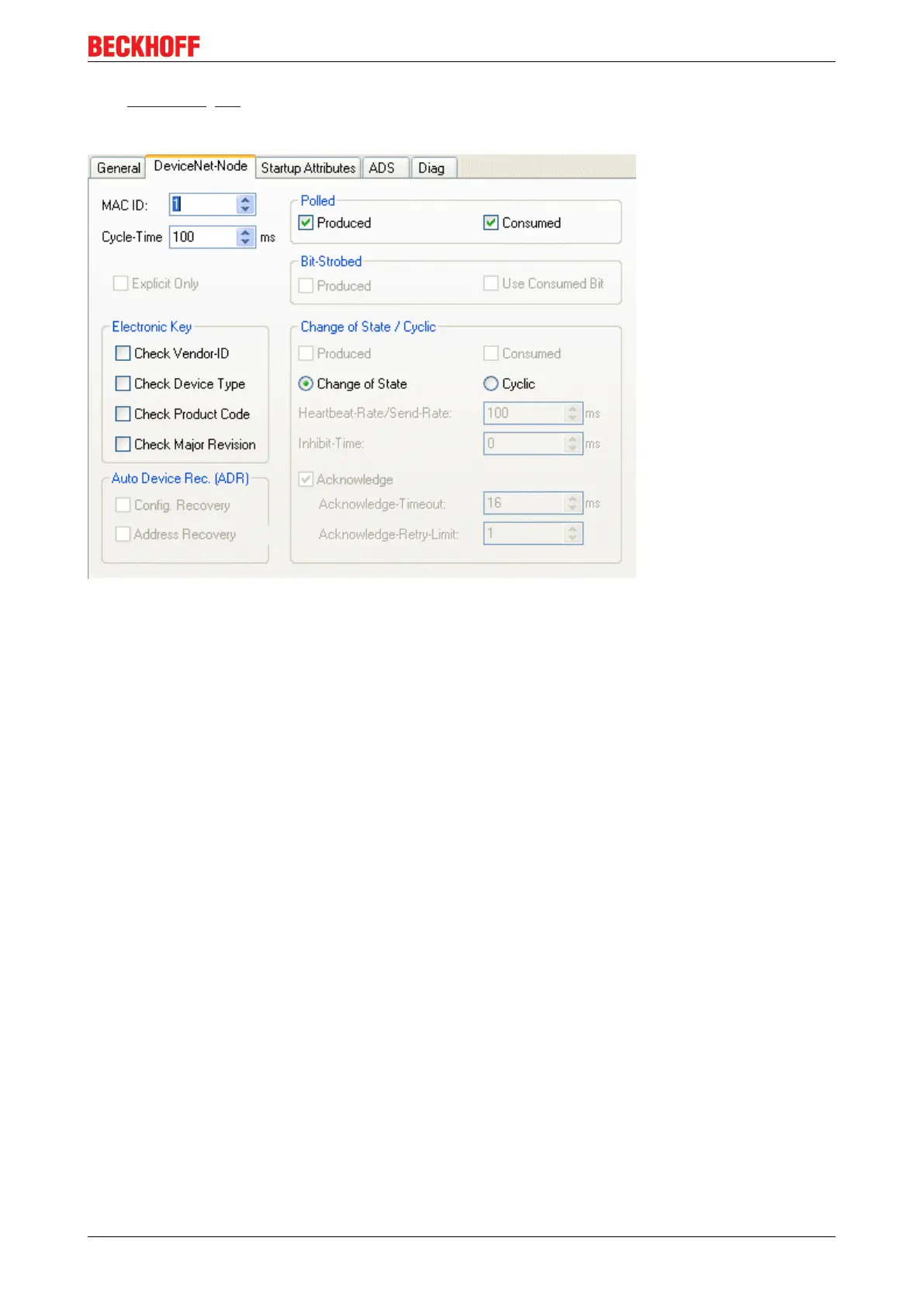

Fig.59: "DeviceNet Node" tab
MAC-ID
Sets the MAC ID, i.e. the device address of the DeviceNet device (between 0 and 63). This value must
comply with the value set at the Bus Coupler and/or at the compact box.
Cycle time
Sets the cycle time of the IO connection polling and bit strobe. The value is used as “Expected Packet Rate”
attribute of the “Connection Objects” according to the DeviceNet specification.
Electronic Key
Serves to check the devices within the network at the system StartUp. The electronic key is read from the
devices at every system StartUp and compared with the saved configuration.
Polled
Produced/Consumed
Activation of the “Polling” mode, cyclic writing and reading of IO data. Setting of the data content of the data
transmitted via the polled IO connections. You can choose from digital data, analog data or both. The
selection depends upon the BK52xx terminal arrangement.
Bit-Strobed
Produced/Consumed
Activation of the “Bit Strobe” operating mode. A broadcast message requests all nodes to send their bit
strobe message (up to 7 bytes input or status data). Setting of the data content of the data transmitted via
the bit-strobed IO connections. You can choose between digital data or diagnostic data.
