Page 14
www.becs.com 9487 Dielman Rock Island Ind Dr, St. Louis, MO 63132
Installation and Technical Manual Rev: H10
C – 3.3: Dual pH Control
Setting Dip Switch 6 to the on position and Dip
Switch 7 to the off position configures Relay 3 for
dual pH control (pH feed down).
C – 3.4: Cl/Br Booster
Setting Dip Switches 6 and 7 to the on position
configures Relay 3 for a sanitizer booster. When
the ORP level drops to the Cl/Br Booster Trigger
point, Relay 3 will activate an alternate sanitizer
feed until the ORP reaches the Cl/Br Booster End
point.
C – 4: Temperature
With Dip Switch 8 On, temperature is displayed in
Fahrenheit. With the Dip Switch Off, temperature is
displayed in Celsius.

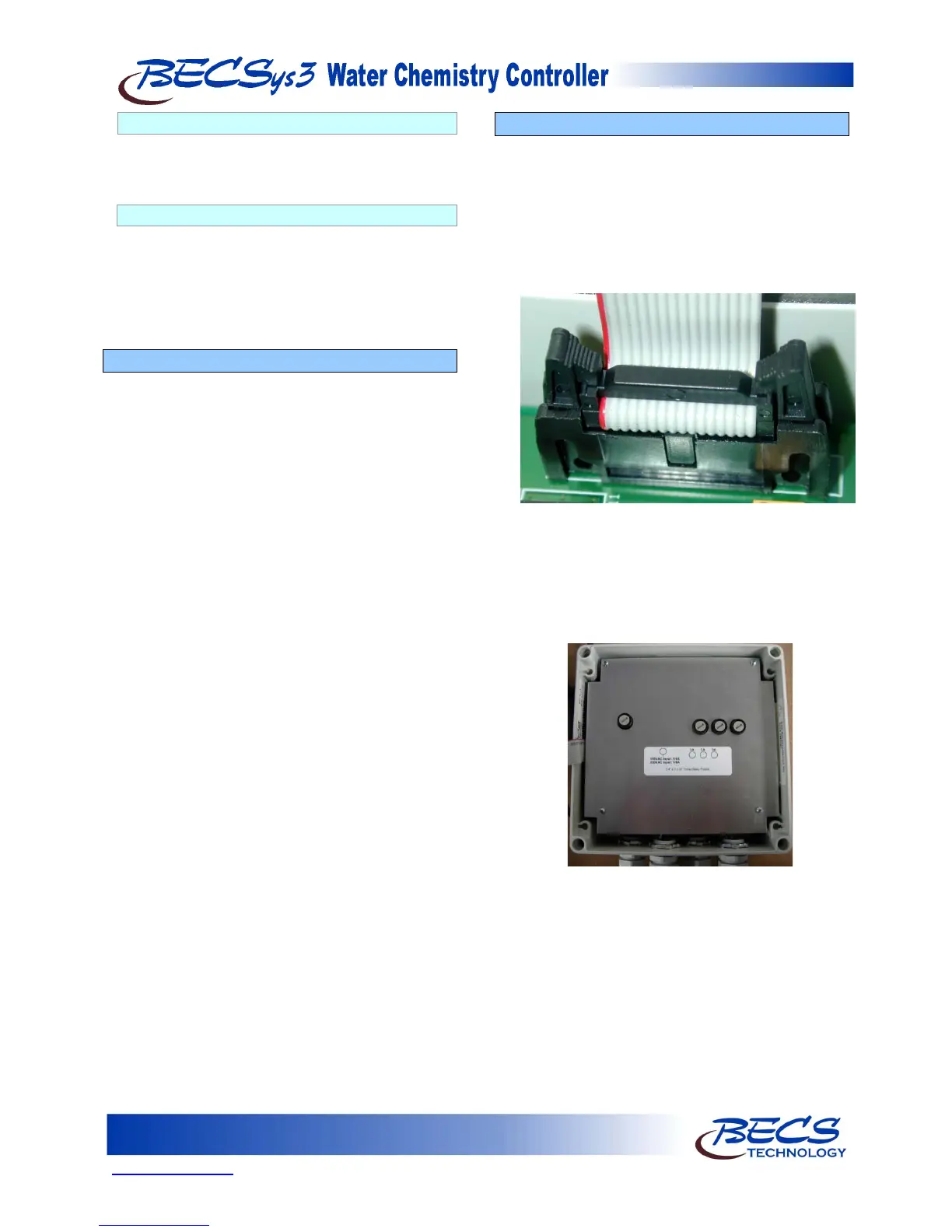

C – 5: Replacing the Cover
Now it is time to put the cover back on the unit. But
before you do, give your wiring one last check and
make sure that you reconnect the ribbon cable (as
shown). Line up the small holes in the cable end
with the pins attached to the cover and gently press
the cable into place. Make sure the two holders
attached to the cover close back over the cable end
to hold it firmly in place.
Replace the safety shield using the screws that were
removed. Be sure to align the holes with the fuse
holders. You may have to adjust the fuse holders
slightly to align the shield properly. Finally, place the
cover back on the unit and tighten the four screws at
the corners to secure it in place.
