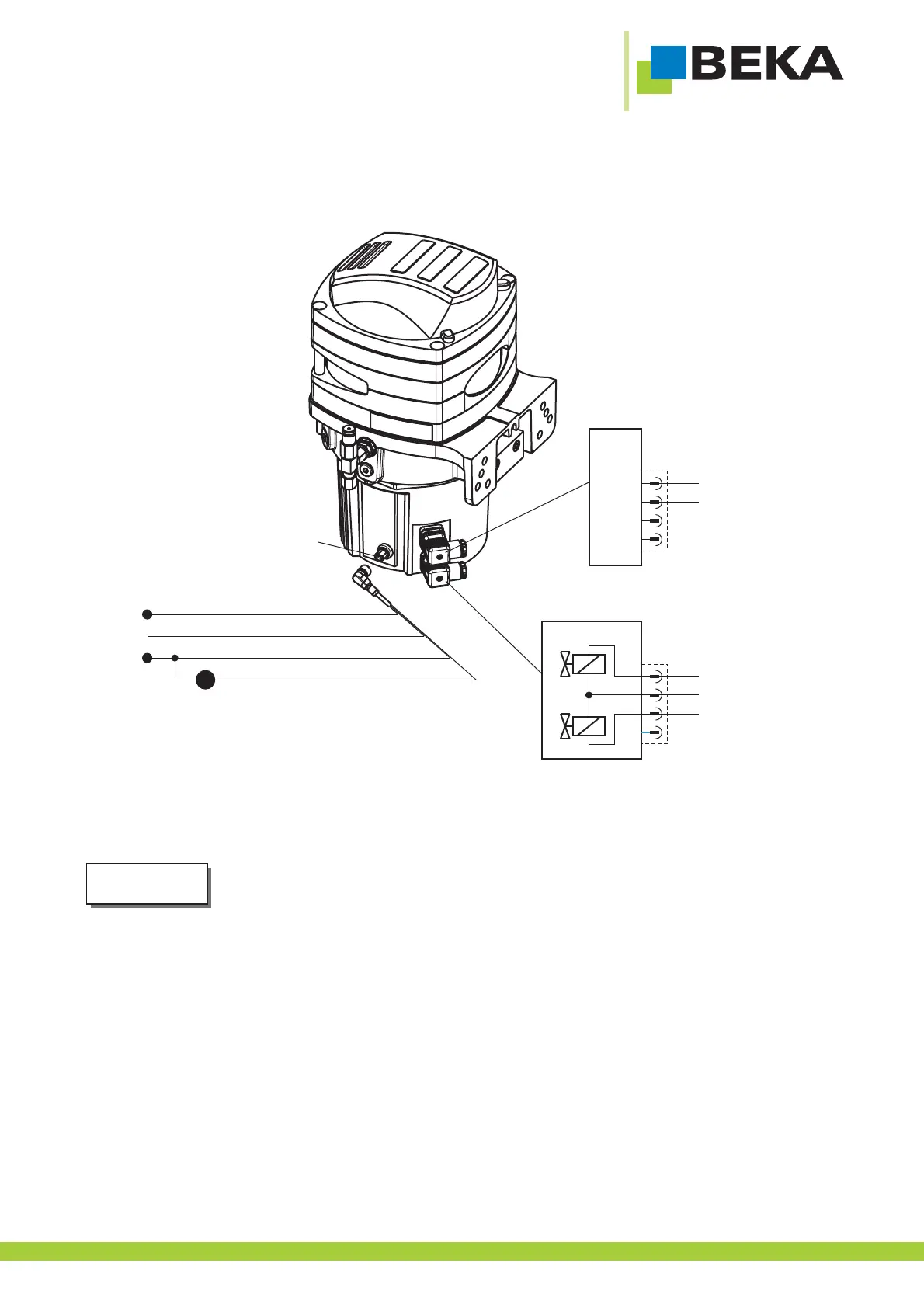

8.5.5 Circuit diagram of the pump GIGAand GIGAPLUS without control unit for dual line lubrication systems:
Fig. 45:
9. Start up
9.1 Filling with lubricant
Always use lubricant to fill the storage reservoir!fresh
· Fill the lubricant reservoir via a filler nipple or fill connection!
· Observe the machine manufacturer’s lubricant details! Use lubricants according to machine manufacturers
specification!
· Collect outcoming lubricant with a suitable receptacle and dispose it environmental friendly.
· Observe the safety data sheet of the lubricant manufacturer.
· The viscosity range of lubricant changes with the operating temperature.
· Check the level during the first operating hours and refill lubricant if necessary.
· Observe utmost cleanness when refilling the reservoir.
Attention!
cubic
plug (X101)
GIGA
1
2
3
PE
+U
b
Ground
Connection for
level monitoring
brown
white
blue
black
+U
b
Ground
Signal lamp
„level OK“
NC
Cubic
plug (X102)
GIGA
1
2
3
PE
+Y1
-Y1, -Y3
+Y3
A1
A1
A2
A2
Y1
Y3
