Installation GRS105/GRS106
Release
01
11/2021

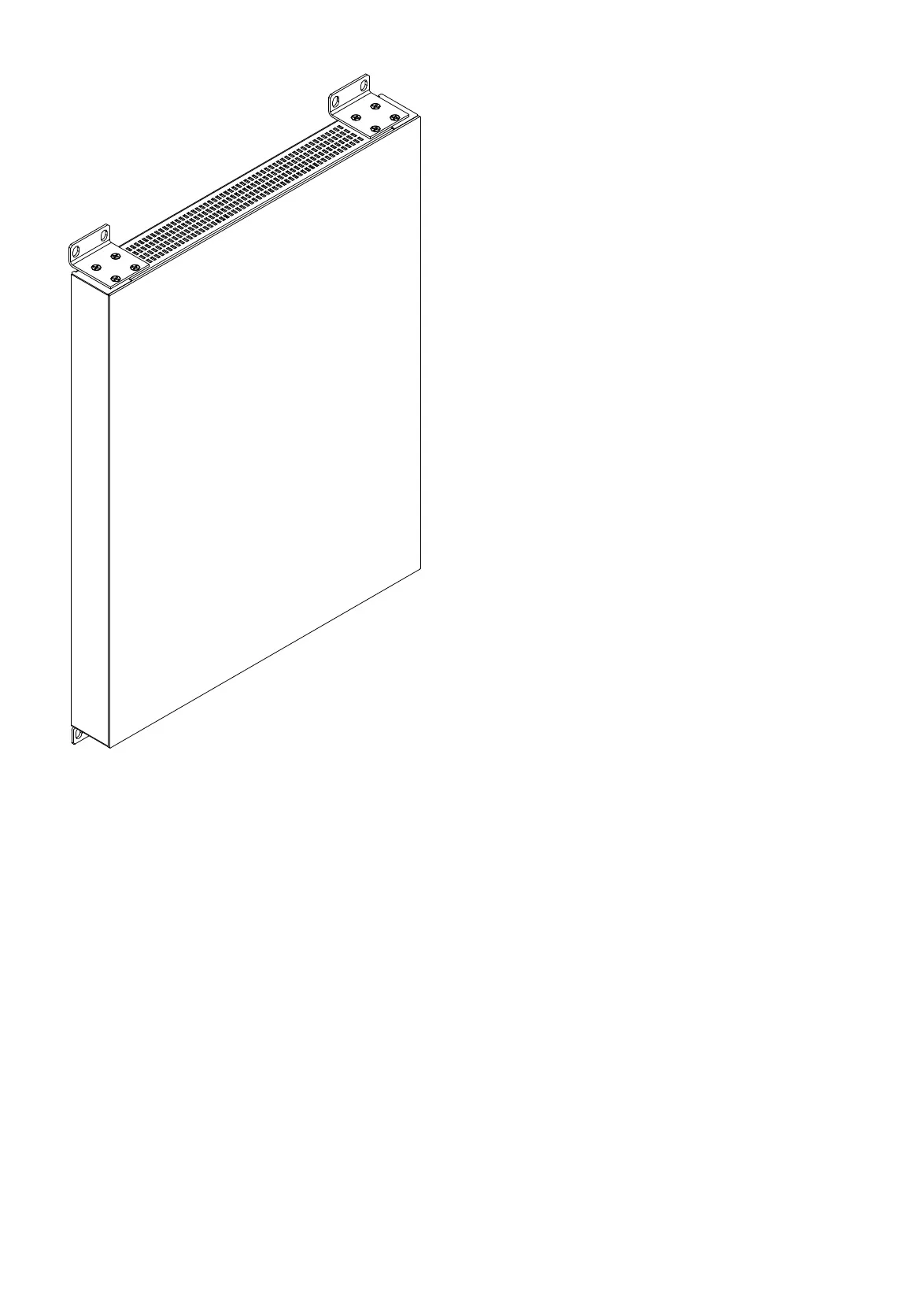

Figure 15: Mounting vertically on a flat surface: Optional mounting on a vertical flat
surface.
Mounting in a switch cabinet
Note: Install the device in the 19" switch cabinet using sliding or mounting
rails.
This provides a more stable position of your device in environments
subject to vibration.
For more information on sliding/mounting rails and how to install them,
please contact your switch cabinet manufacturer.
The devices are designed to be mounted in a 19" switch cabinet.
In the delivery state, there are 2 pre-mounted mounting brackets on the
sides of the device.
