Bell OH-58A - External Components - Transmission Oil System

TM 55-1520-228-BD
DRIVE TRAIN SYSTEM
1.
2.
3.
4.
5.
6.
7.
8.
Filler Cap
9. Oil Filter
Oil Cooler
10. Oil Filter Head Assy
Transfer Tube
11. Filter Bypass Valve
Nozzle (Jet) 12. Oil Temperature Switch
Pressure Regulating Valve
13. Oil Pump
Hoses and Lines
14. Chip Detector
Oil Pressure Transmitter
15. Chip Detector
Plug
16. Air Duct Hoses
Low Pressure Sensing Switch

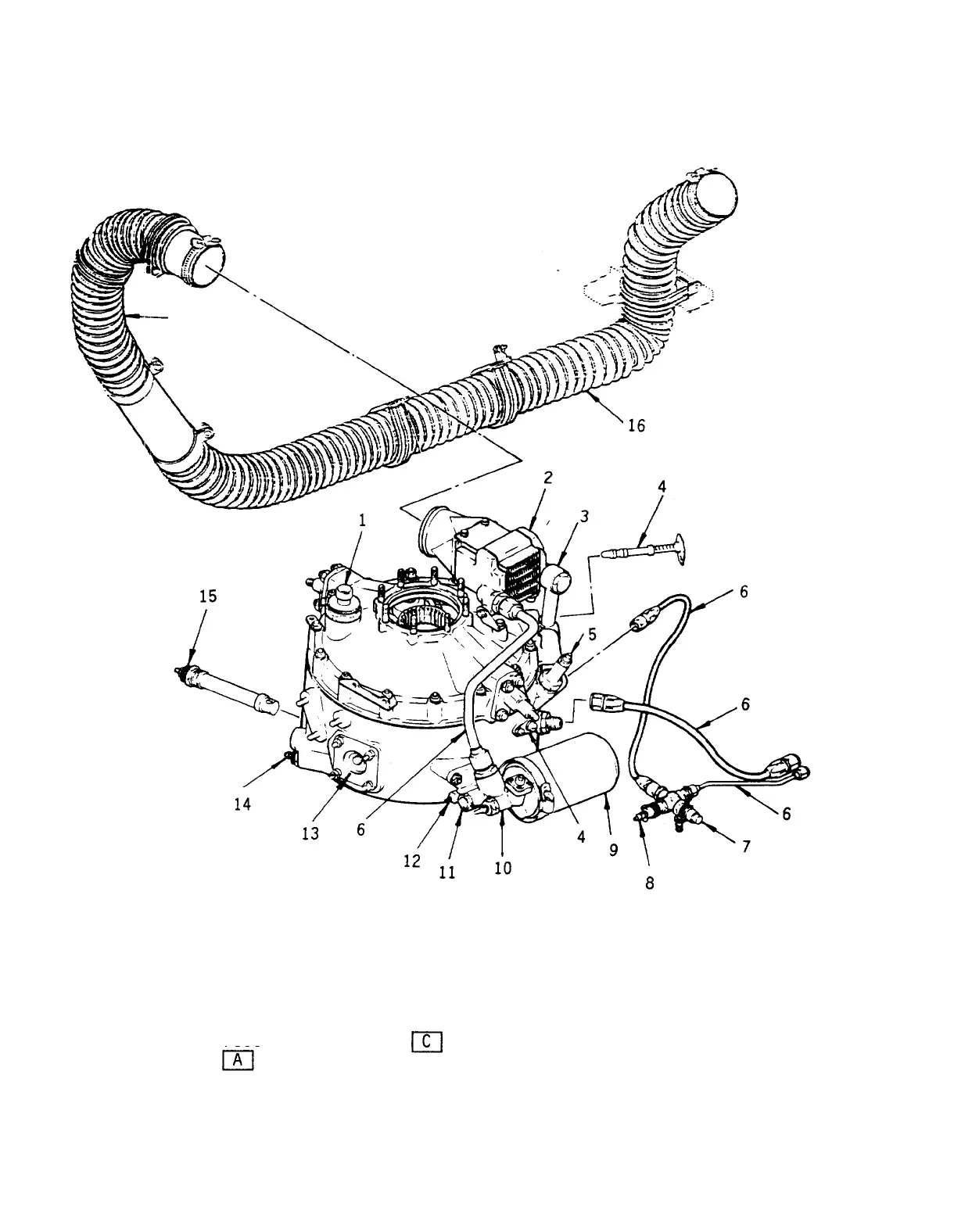

Figure 8-2. External Components - Transmission Oil System
