Bell OH-58A - Transponder (IFF) System AN;APX-72, AN;APX-100

TM 55-1520-228-BD
APPENDIX F
DRAWING
PART
DESIGNATION
NUMBER
FUNCTION
2
3
4
5
6
7
8
TS-1843()/APX
RT-859()/APX-72
C-6280A(P)/APX
RT-1285/APX-100(V)
206-077-109-1
KIT-1A/TSEC
MT-3513/APX
AT-884()/APX
MT-3809/APX-72
Test Set, Transponder
Receiver-Transponder
Control, Transponder
APX Transponder: The APX-1OO(V),
Used On The OH-58C Does Not
Require The TS-1843()/APX
Antenna:
Used Only On OH-58C
With APX-1OO
Computer
Mount
Antenna
Mount

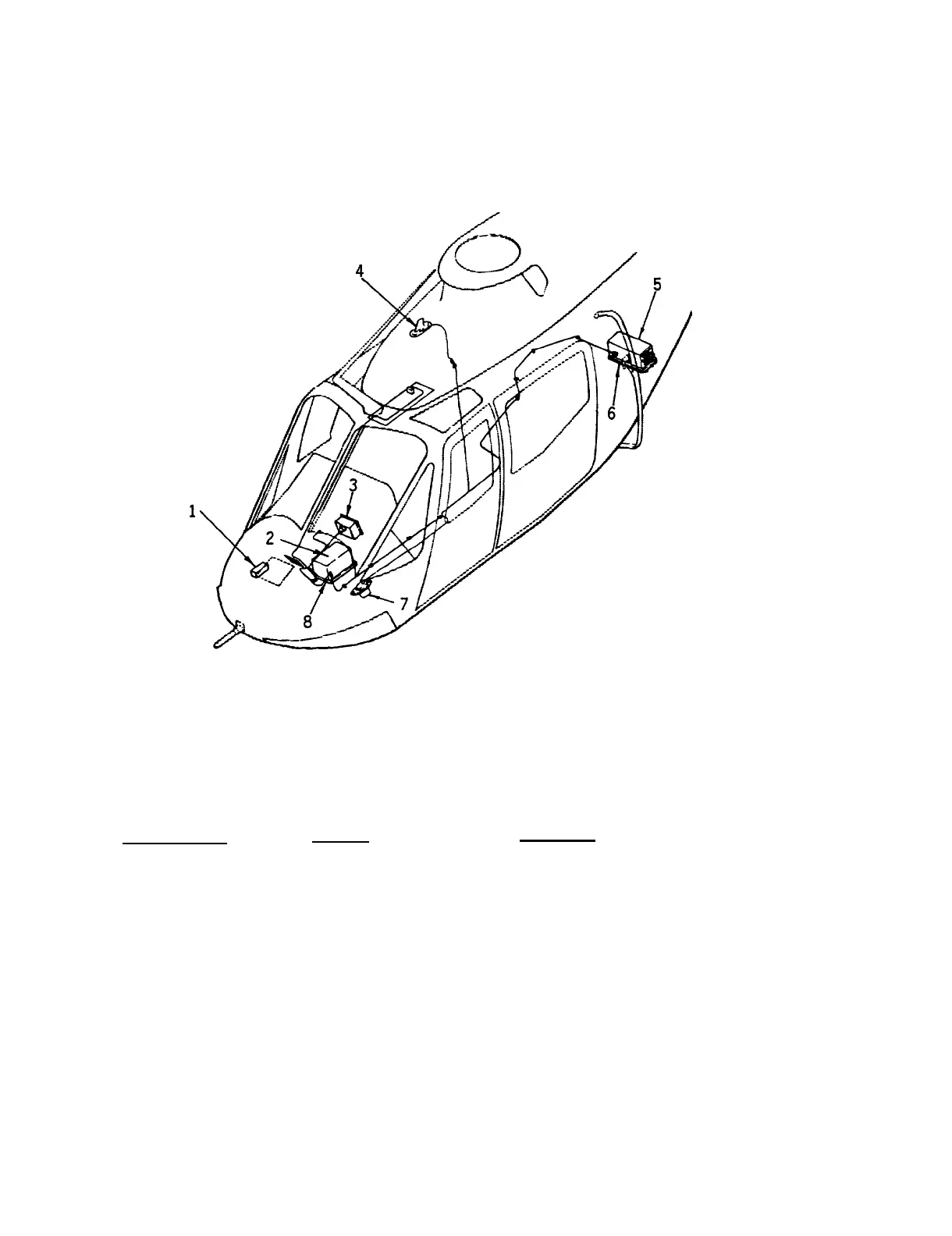

Figure F-9.
Transponder (IFF) System AN/APX-72, AN/APX-100
F-18
1
