Bell OH-58A - Combustion Heater

TM 55-1520-228-BD
ENVIRONMENTAL CONTROL SYSTEM
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Combustion Heater Plenum
Fuel Shut-Off Valve
Fuel Pump
Fuel Pressure Relief Valve
Fuel Filter
Heater
Combustion Blower
Air Scoop
Igniter Plug
Duct
Firewall Shut-Off Control
Temperature Control
Pilot Seat Back
Copilot Seat Back

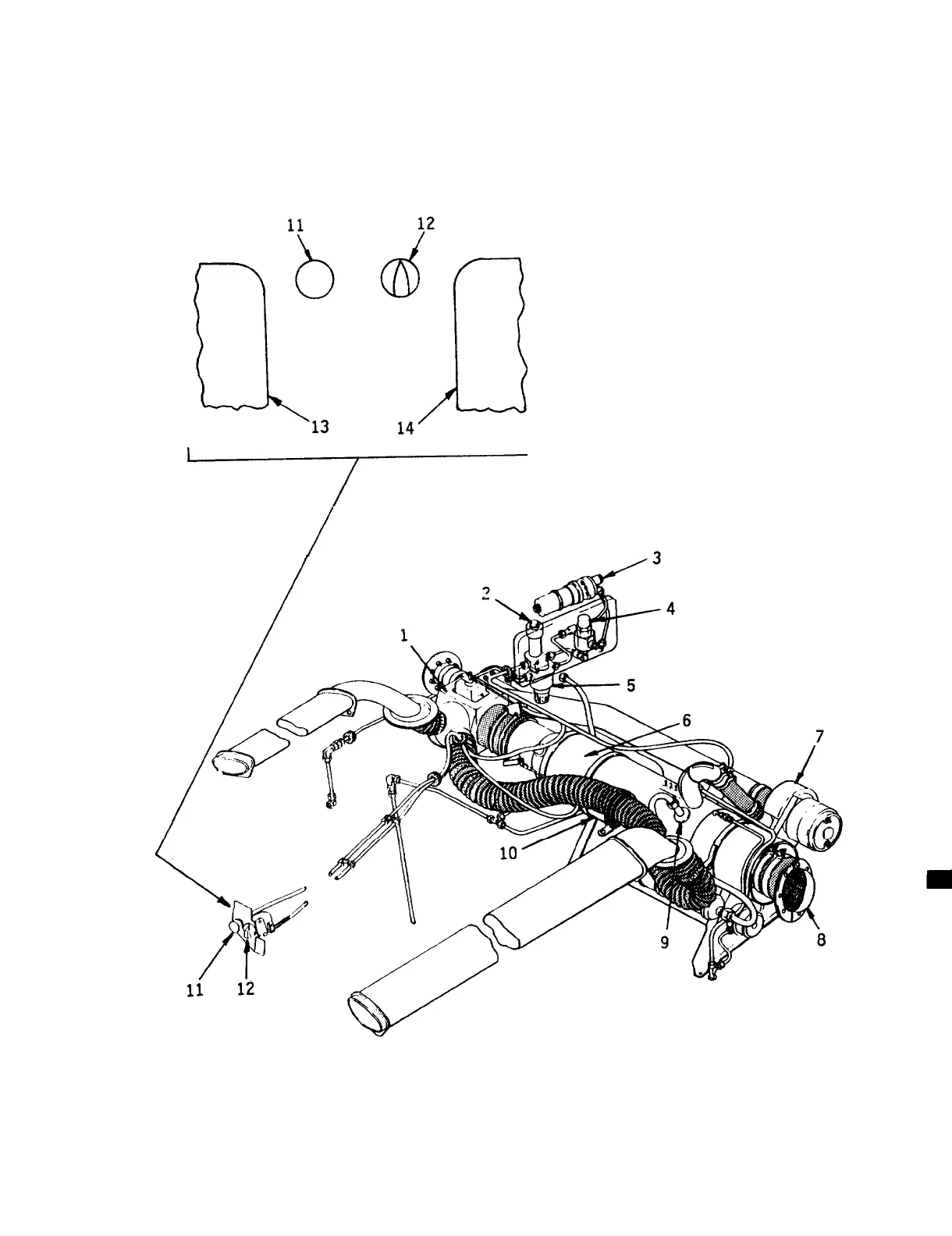

Figure 15-4.
Combustion Heater
15-5
1.
