5.1.1 Display in the standard mode
5.1.2 Display in the menu mode

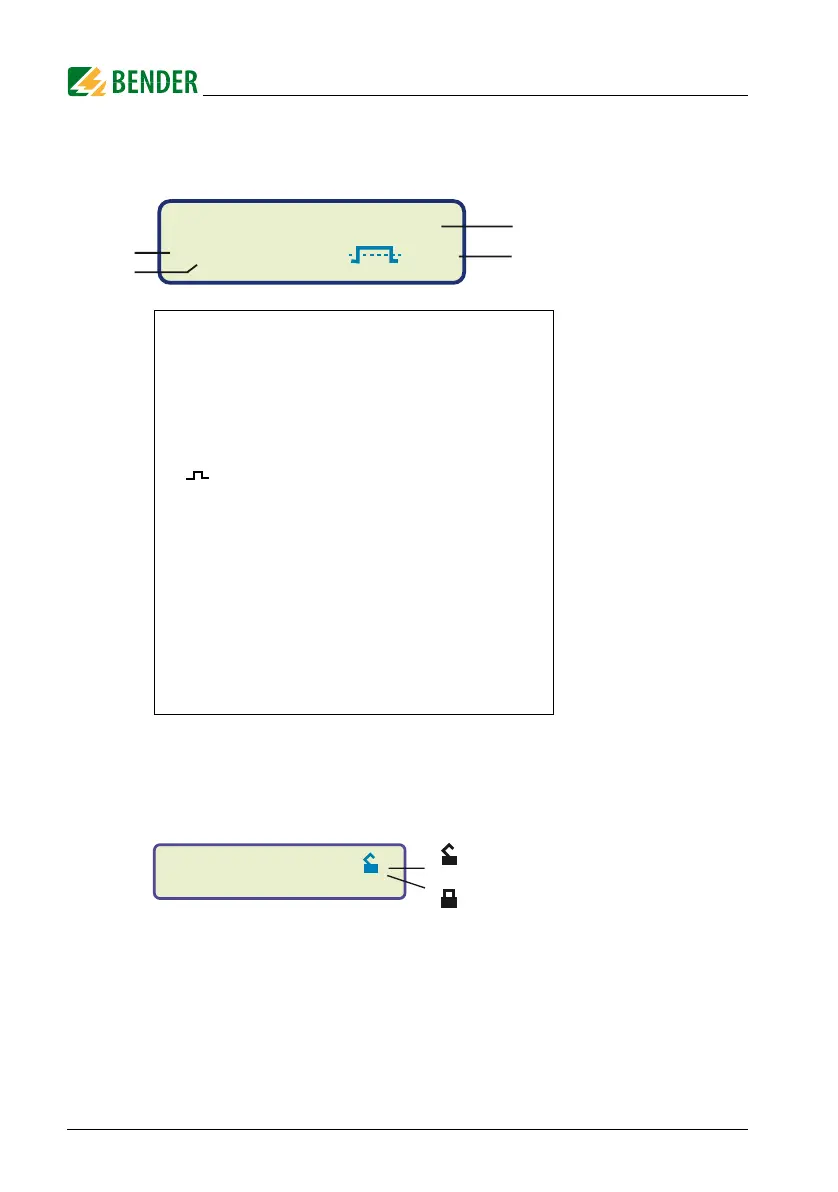

1 Indication of the insulation resistance in kΩ
2 Additional information about the insulation
resistance:
"+" = insulation fault at L+
"–" = insulation fault at L–
"s" = new measurement has started
3 = polarity of the measuring pulse
. = valid bus communication signals
H = new entry in the memory data base
C = flashing, clock is to be set
4 Messages:
- Insulation fault
- Connection system?
- Connection PE?
- Device error x
- *****STAND BY*****
Parameter change is permitted
Parameter change is blocked,
enabling by a password
1
2
3
4
Insulation Fault
Rs=011k
W . H
1. EXIT
2. HISTORY INFO
