Bender A-Isometer IRDH 275 User Manual

Connection
26
TGH1361en/11.2009

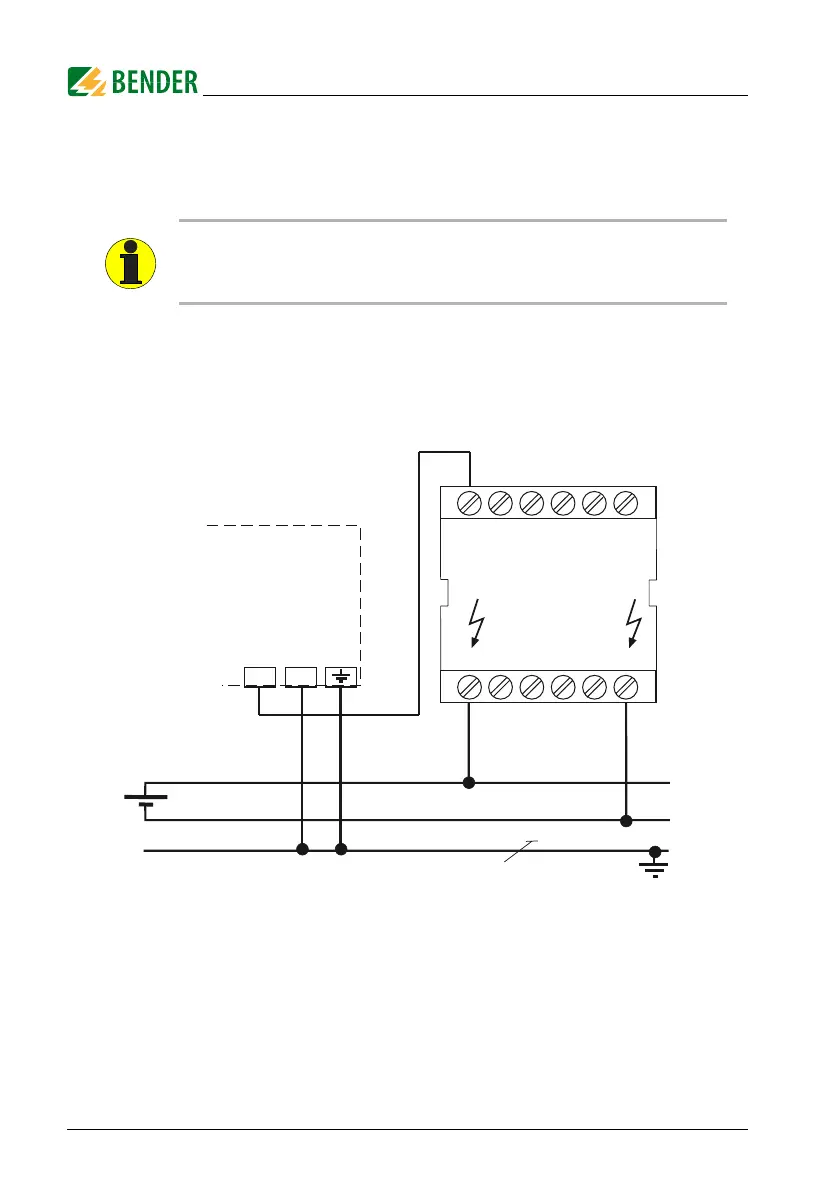

4.2 Wiring diagrams with coupling devices
4.2.1 Connection with AGH150W-4
Connected to the A-ISOMETER® this coupling device extends the nominal
voltage range to DC 1760 V in DC systems.
Please observe the settings in the "ISO ADVANCED AGH“ menu ! Adapt
the settings to the coupling device to be used.
L+
L-
PE
U
n
DC 0 ... 1760 V
IRDH275
KE
AK
Achtung Hochspannung
Danger High Voltage
AGH150W-4
AK160
+ -
