5.2 Wiring diagrams with coupling devices

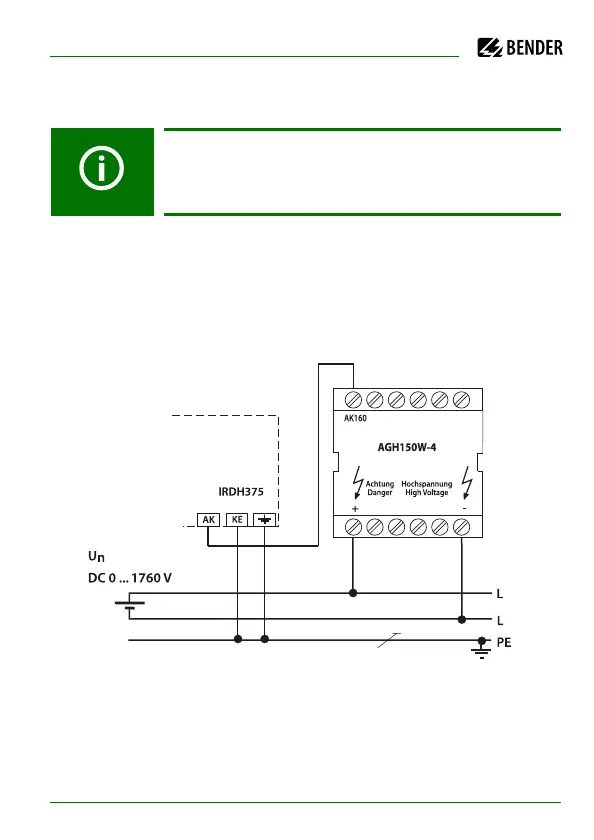

5.2.1 Connection with AGH150W-4
Connected to the ISOMETER® this coupling device extends the nominal volt-
age range to DC 1,760 V in DC systems.
Please observe the settings in the "ISO ADVANCED AGH“
menu ! Adapt the settings to the coupling device to be used.
1
2
