6. Operation and setting
6.1 Operating features and displays IRDH375(B)

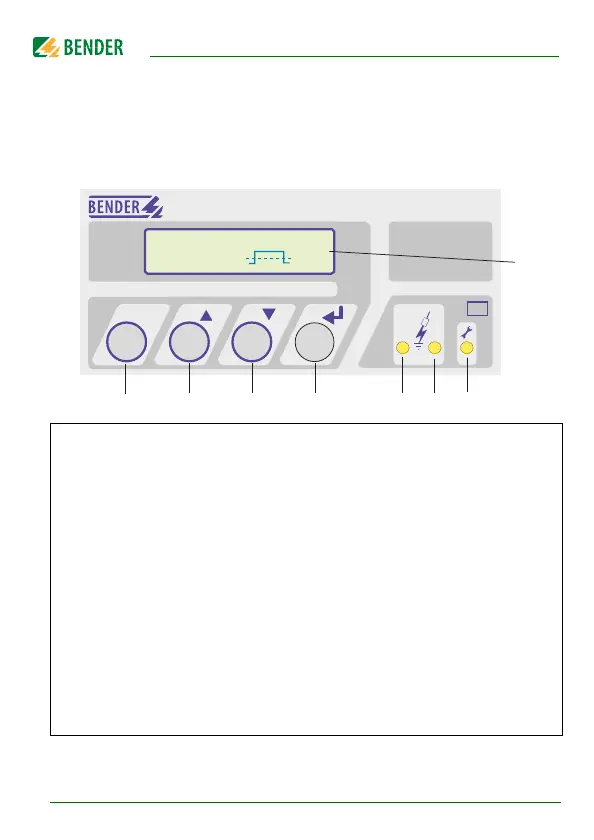

A detailed description of the operating elements is given on the following
pages.
1
INFO key: to query standard information/
ESC key: back (menu function), confirmation parameter change
2
TEST button: to call up the self test/
Up key: parameter change, moving up in the menu
3
RESET button: to delete insulation fault alarms
Down key: parameter change, moving down in the menu
4
MENU key: to activate the menu system/
Enter key: confirmation parameter change
5
Alarm LED 1 lights: insulation fault, first warning level reached
6
Alarm LED 2 lights: insulation fault, second warning level reached
7
Device fault LED lights: IRDH375 defective
8
Two-line display for standard and menu mode
1234 56
7
8
A-ISOMETER® IRDH375
INFO TEST RESET MENU
ESC
12
k W
Insulation fault
R =010KW
