Bender ISOMETER iso685-D User Manual

ConnectionConnection
iso685-D-B_D00177_05_M_XXEN/07.2017
22

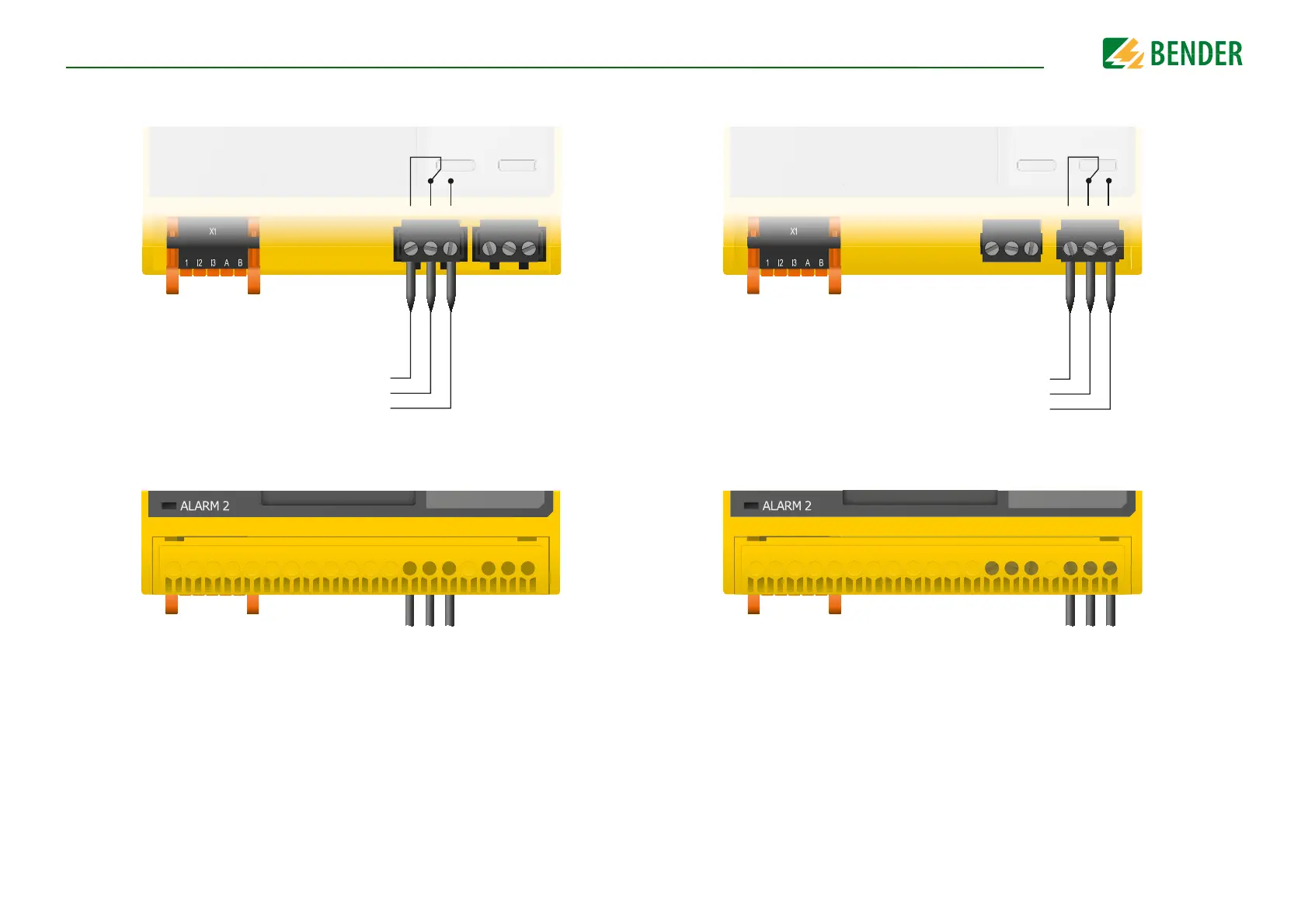

6.8 Connection to the relay 1 interface (11 12 14)
Position the terminal cover and click it into place
11
12
14
Relay 1
Common contact
Normally open (n.o)
Normally closed (n.c)
6.9 Connection to the relay 2 interface (21 22 24)
Position the terminal cover and click it into place
21
22
24
Relay 2
Common contact
Normally closed (n.c)
Normally open (n.o)
