Benning IT 115 - Connection Panel

BENNING IT 115 Device description
- 14 -
3.2 Connection panel

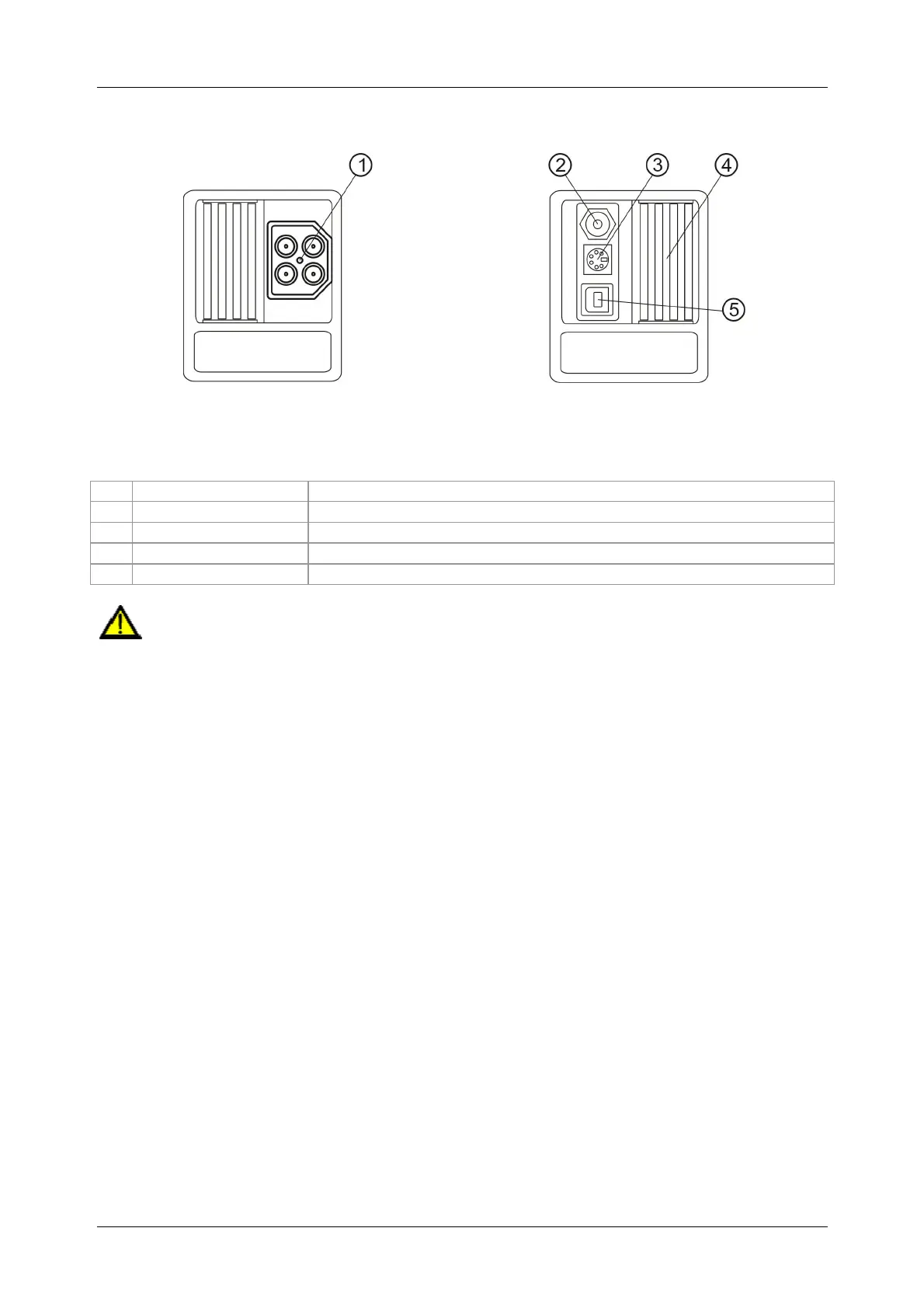

Figure 3.2: Connection panel
Caption:
1
Test connection
Measuring inputs / outputs
2
Charging jack
For charging rechargeable NiMh storage batteries
3
PS/
2
port
Serial RS232 interface for service
4
Protective cover
5
USB
port
Without function!
Warnings!
 The maximum admissible voltage between the testing terminals and earth is 550 V!
 The maximum admissible voltage between the testing terminals is 550 V!
 The maximum admissible short-term voltage of the external charger is 14 V!
