Maximum testing times and selected testing current for standard (undelayed) RCDs:
Standard
½I
N
I

N 2I
N
5I
N
EN 60364-4-41 1000 ms 1000 ms 150 ms 40 ms
EN 61008 / EN 61009 300 ms 300 ms 150 ms 40 ms
BS 7671 2000 ms 300 ms 150 ms 40 ms
AS/NZS 3017 (I, II, III) 1000 ms 1000 ms 150 ms 40 ms
Maximum testing times and selected testing current for selective (delayed) RCDs:
Standard
½I

N
I

N 2I

N
5I

N
EN 60364-4-41 1000 ms 1000 ms 200 ms 150 ms
EN 61008 / EN 61009 500 ms 500 ms 200 ms 150 ms
BS 7671 2000 ms 500 ms 200 ms 150 ms
AS / NZS 3017 (IV) 1000 ms 1000 ms 200 ms 150 ms

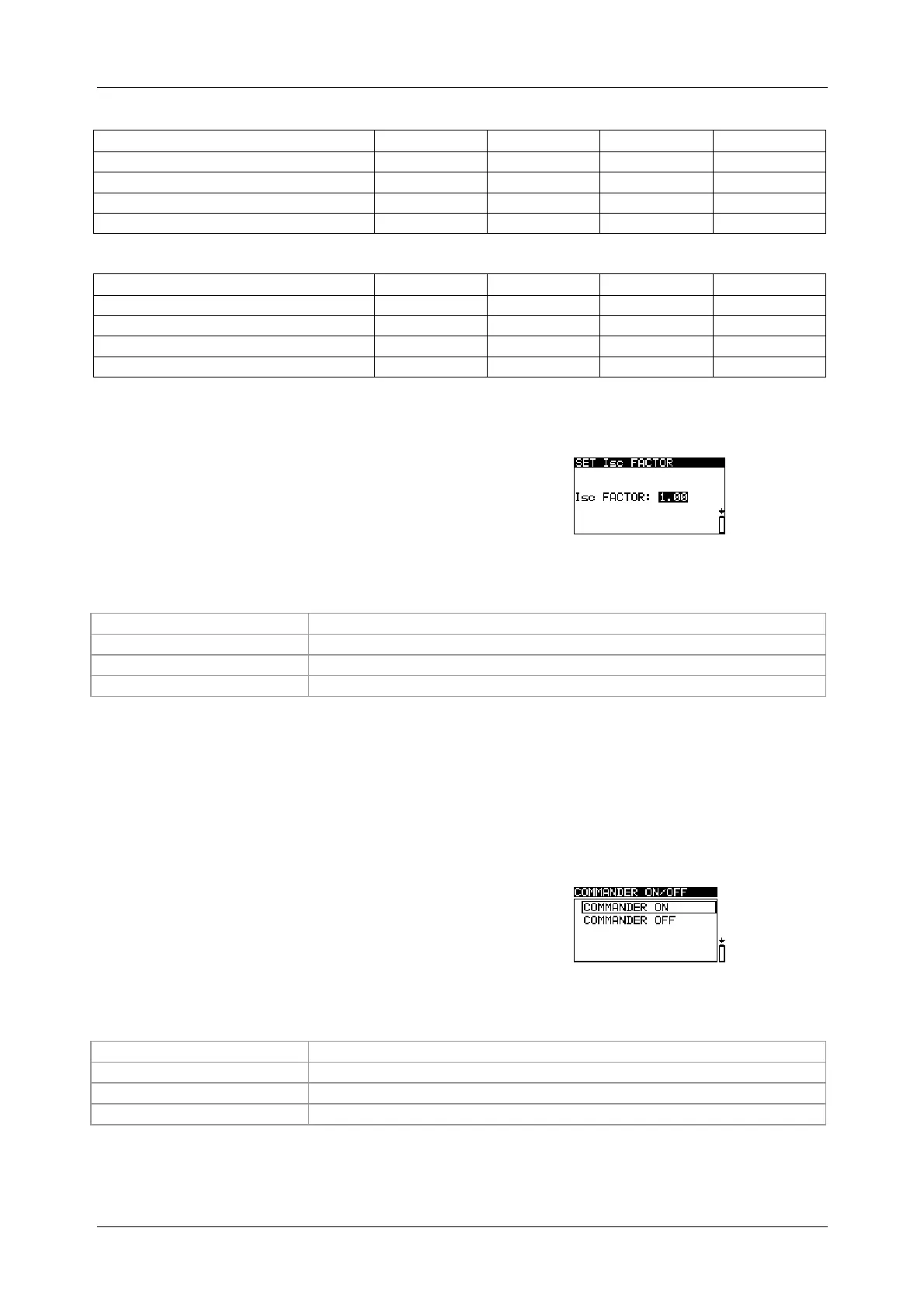

4.3.3 Isc factor (scaling factor)
In this menu, it is possible to set the Isc factor
(scaling factor) for calculating the short-circuit
current (Ik) in the functions ZI (L-N/L) and Zs
(L-PE).
Figure 4.6:
Selecting the Isc factor
Keys used:
UP / DOWN
Modifies the Isc factor
TEST
Confirms the adjusted Isc factor
ESC
Back / cancel to the Settings menu
Function selector switch
Back / cancel to the selected measuring function
The short-circuit current Ik in the power supply system is of particular importance for the
selection and testing of protective circuits (fuses, overcurrent protection devices, RCDs).
The default value of the Isc factor (Ik) is 1.00. The value has to be set according to local
requirements.
The Isc factor can be set within the range of 0.20  3.00.
4.3.4 Commander ON/OFF
In this menu, it is possible to enable or disable
the optional "Commander".
Figure 4.7:
Selecting the "Commander" support
Keys used:
UP / DOWN
Selects Commander ON (enabled) / Commander OFF (disabled)
TEST
Confirms the selected option
ESC
Back / cancel to the Settings menu
Function selector switch
Back / cancel to the selected measuring function
