42 Video wall installation guide
• Using “Edge Alignment Kit-2” on adjacent two displays.

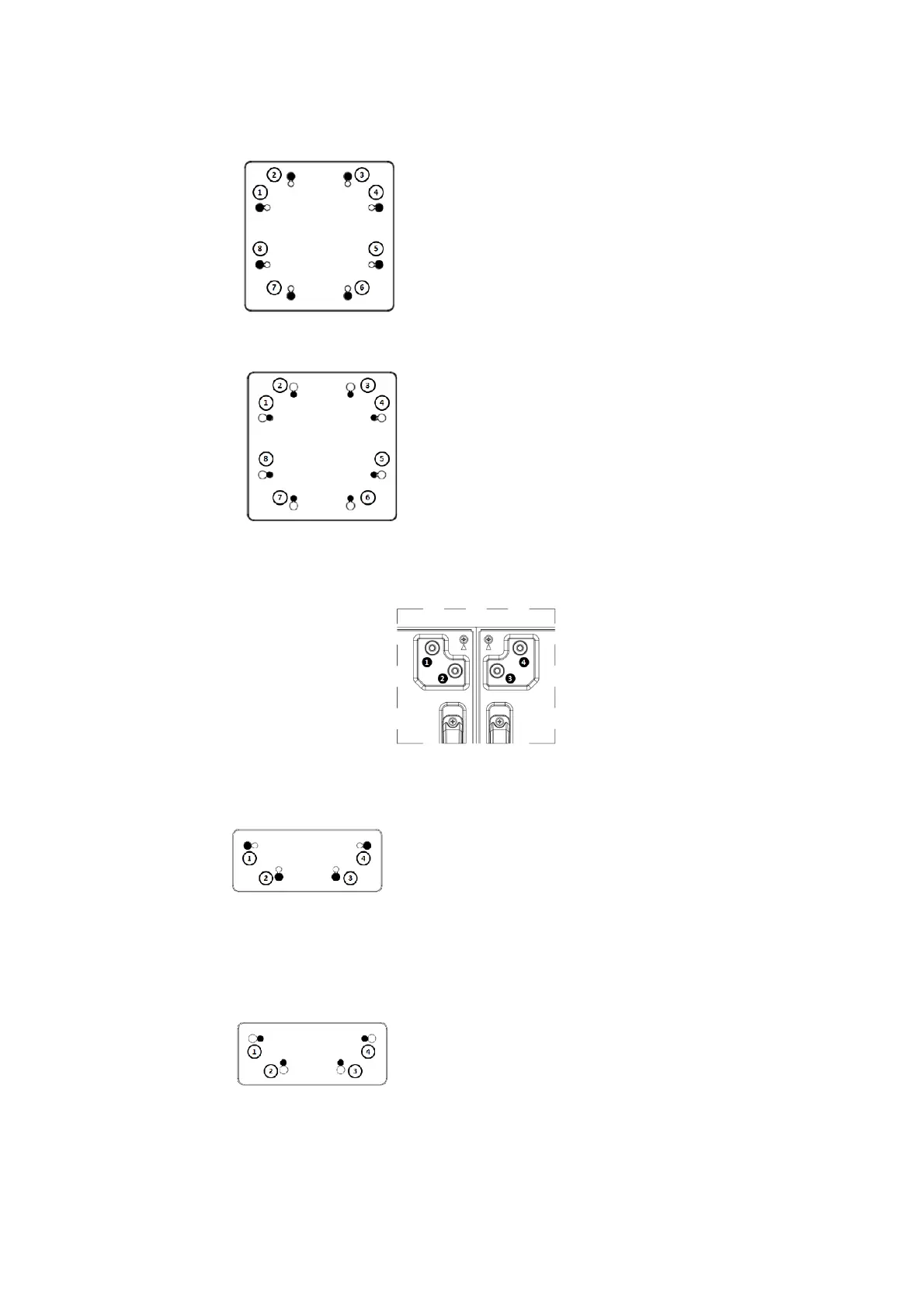

1. There are two loops of screw holes
(outer & inner), depend on the design of
each model. (Please check the user
manual for using loop information)
• Outer loop: Big screw holes for M6
screw.
• Inner loop: Small screw holes for M4
screw.
Remark:
• M6 screw: for PL552/PL553/PH5501/
PH5502
• M4 screw: for PL490
2.
1. There are two loops of screw holes (outer
& inner), depend on the design of each
model. (Please check the user manual for
using loop information)
• Outer loop: Big screw holes for M6
screw.
• Inner loop: Small screw holes for M4
screw.
2. Remark:
M6 screw: for PL552/PL553/PH5501/
PH5502
