Instruction Manual
1919

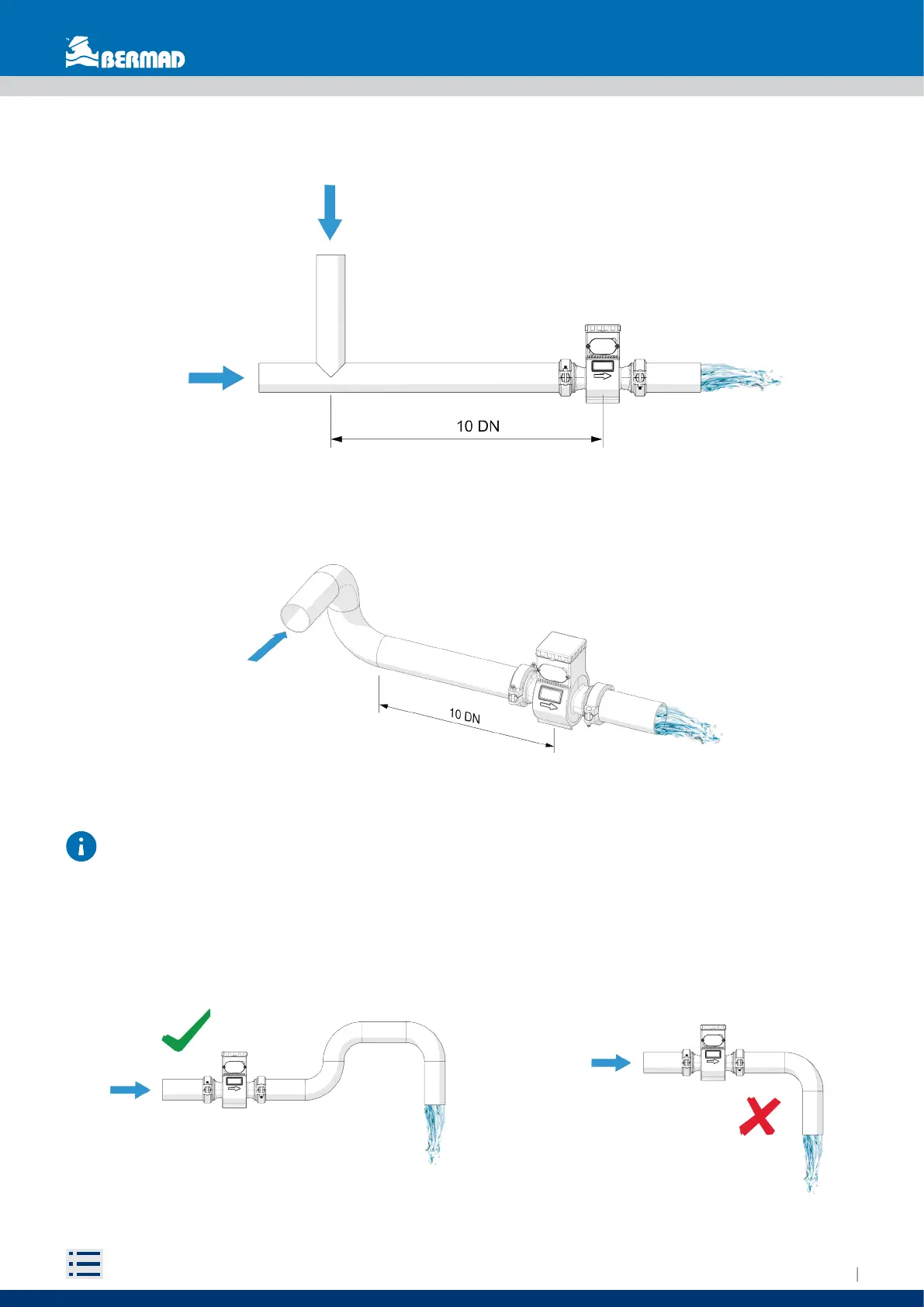

“T” connection upstream of the flowmeter
Fig. 12 Installation near "T" connection
Three-dimensional curves
Fig. 13 Installation near three-dimensional bends
IMPORTANT NOTE: THE SENSOR MUST ALWAYS BE COMPLETELY FULL OF LIQUID!
To ensure that the sensor is always completely filled with liquid, it is important to install it in the correct
position (
) and avoid all possible incorrect positions (
).
This installation ensure that the
sensor is full of liquid.
This installation DOES NOT guarantee a
pipe full of liquid.
Fig. 14 Correct installation Fig. 15 Incorrect installation
