M10
Instruction Manual
20

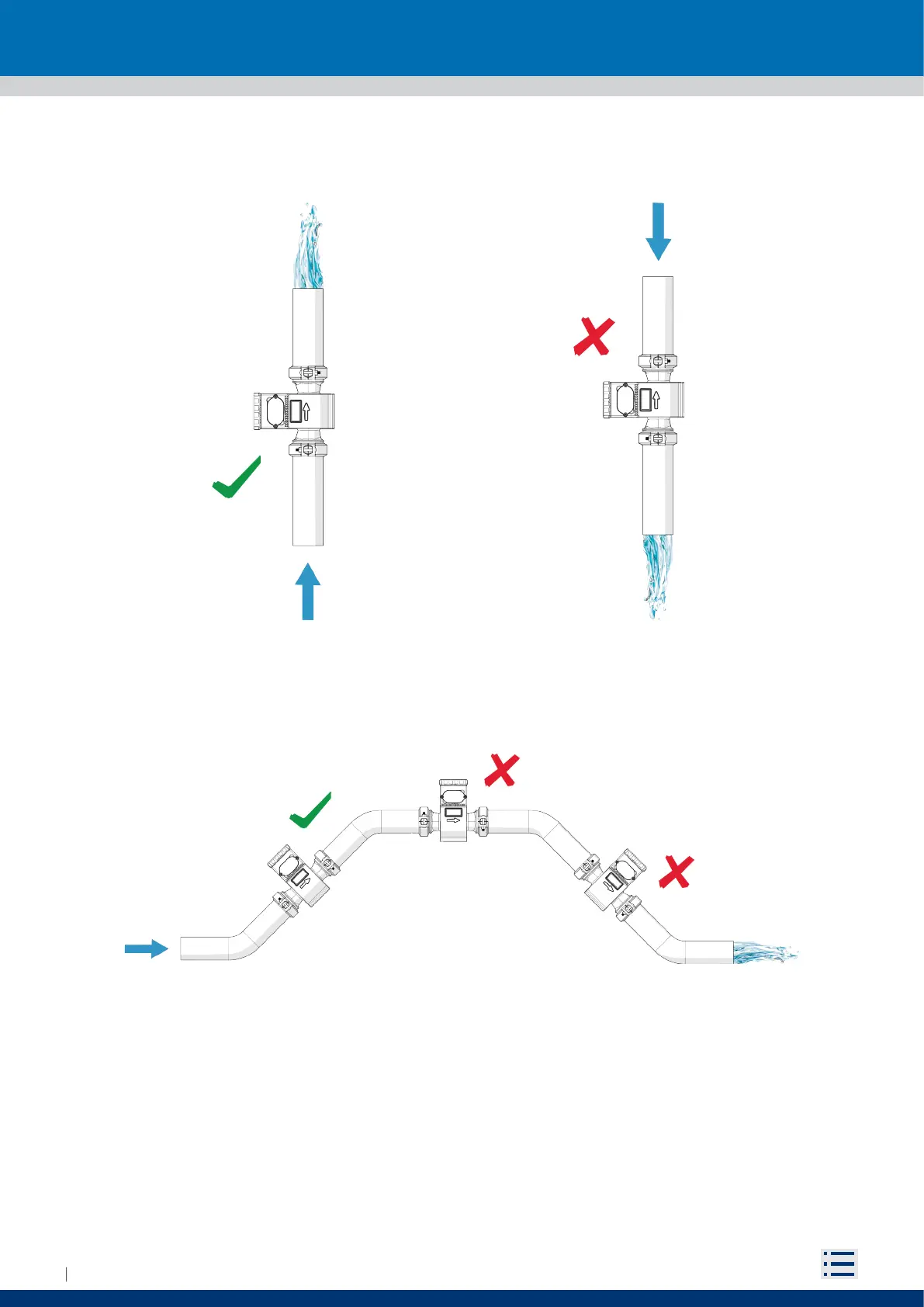

We recommend installing the sensor on a vertical/sloped pipe with an upward flow direction (Fig. 16) to
minimize the wear and deposits in the sensor. Avoid the installation on vertical pipes with free exit (Fig. 17).
Fig. 18 Correct (LH) and incorrect installation (central and RH)
Fig. 16 Correct position Fig. 17 Incorrect position
The position on the left ensure
that the sensor is full of liquid.
Central and right positions DO NOT
guarantee a pipe full of liquid.
