Instruction Manual
2121

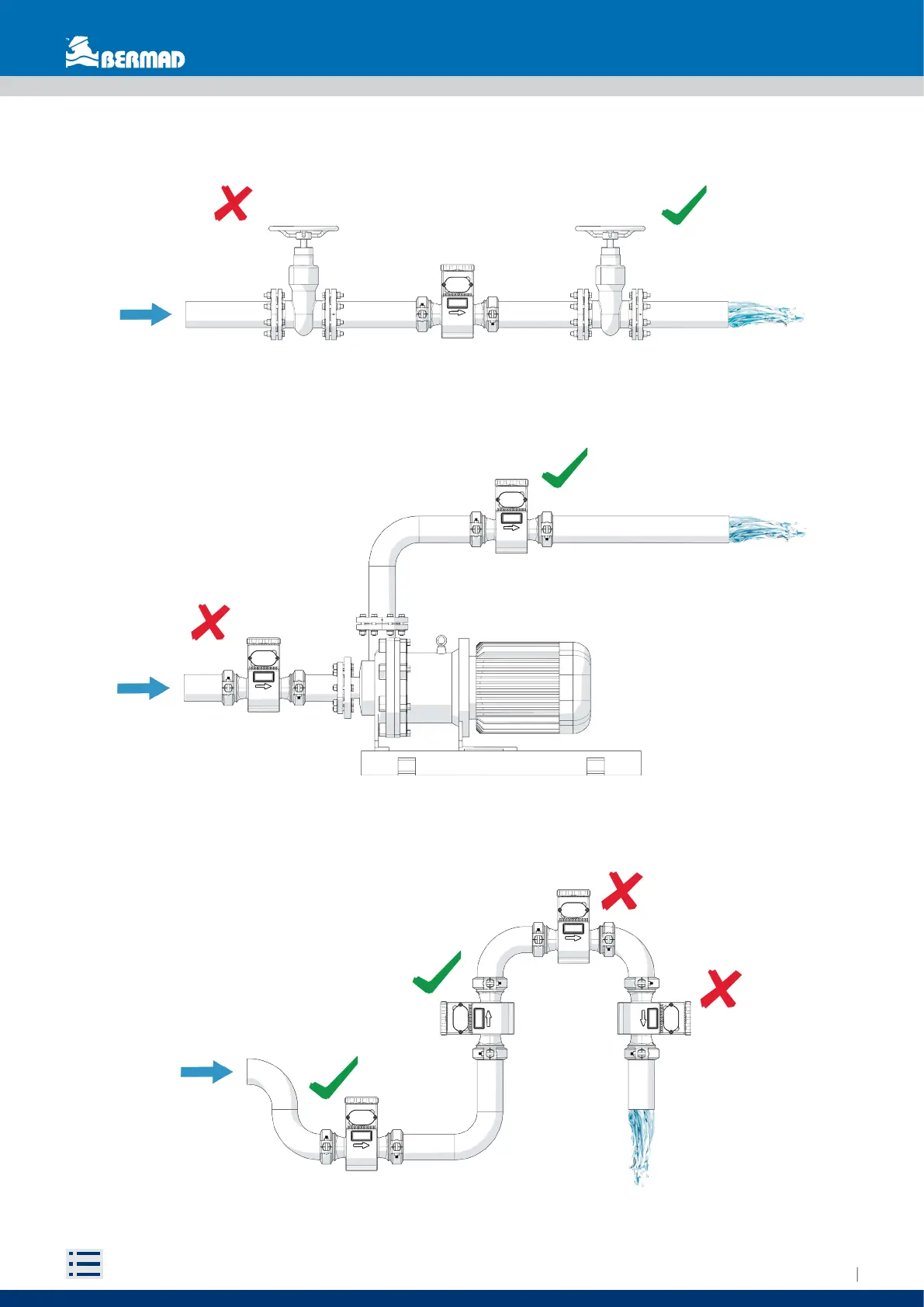

We recommend installing gate valves downstream of the meter.
Fig. 19 Gate valves installation
In order to avoid a vacuum, always install the sensor downstream of the pump and NEVER upstream.
Fig. 20 Avoid negative pressure
DO NOT install the sensor on vertical pipes with a free outlet or at the highest point of the pipe system.
Fig. 21 Incorrect installation
