Beta EVO 2T Handbook

4
CHECKS AND MAINTENANCE
46
GB
2 mm
NOTE:
During this procedure, continuously top up
the brake pump thank to replace the oil that
is out fl owing.
•Remove the tube.
•Replace the rubber cap.
Close the oil reservoir cap.

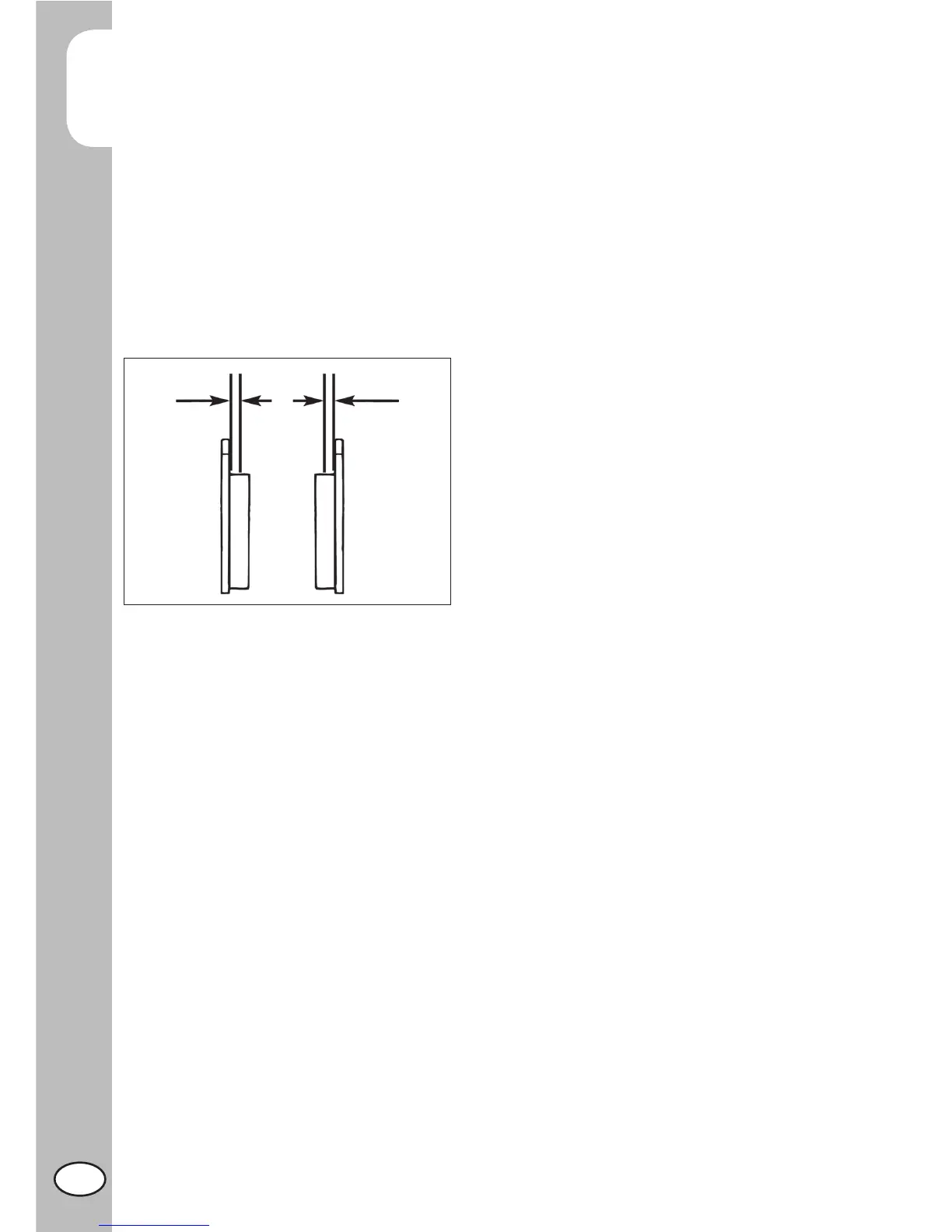

REAR BRAKE LINING CONTROL
In order to verify the wear condition of rear
brake is enough to view the caliper from the
back side, where is possible to glimpse the
brake lining tails which will have to show
a brake of 2 mm in thickness. If the stratum
is lesser let’s start replacing them.
NOTE:
Perform the check according to the times
shown in the table on page 60.
To replace, contact authorised Betamotor
customer service.

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
