Beta EVO 2T Handbook

4
CHECKS AND MAINTENANCE
48
GB
STEERING GEAR
CHECK OF STEERING GEAR

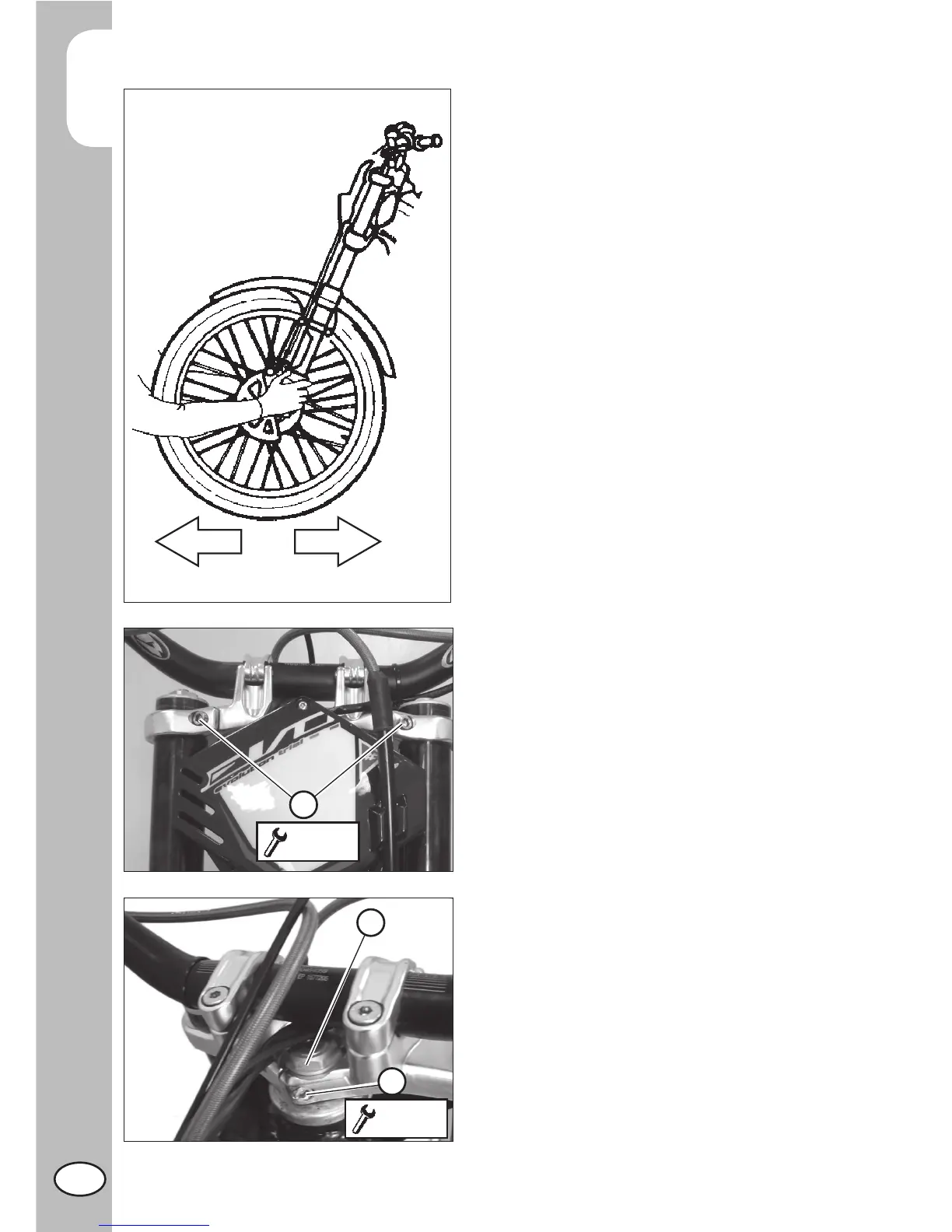

Periodically check the play in the steering
sleeve by moving the fork back and forth
as shown in the fi gure. Whenever you feel
play, adjust as described below:
Loosen the screws 1.
Loosen the screw 2.
Take up the play by means of nut 3.
Tighten the screws to the specifi ed torque
values .
10Nm
1
10Nm
2
3

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
