CHECKS AND MAINTENANCE
52
GB
LINKAGE REAR SUSPENSION
To guarantee an optimal operation and the
longest lifetime of the progressive linkage
of the rear suspension, it is recommended
to check after every race/run the correct
tightening of the bolt.
Verify that the result of the suspension bolts
to specifi ed torque.

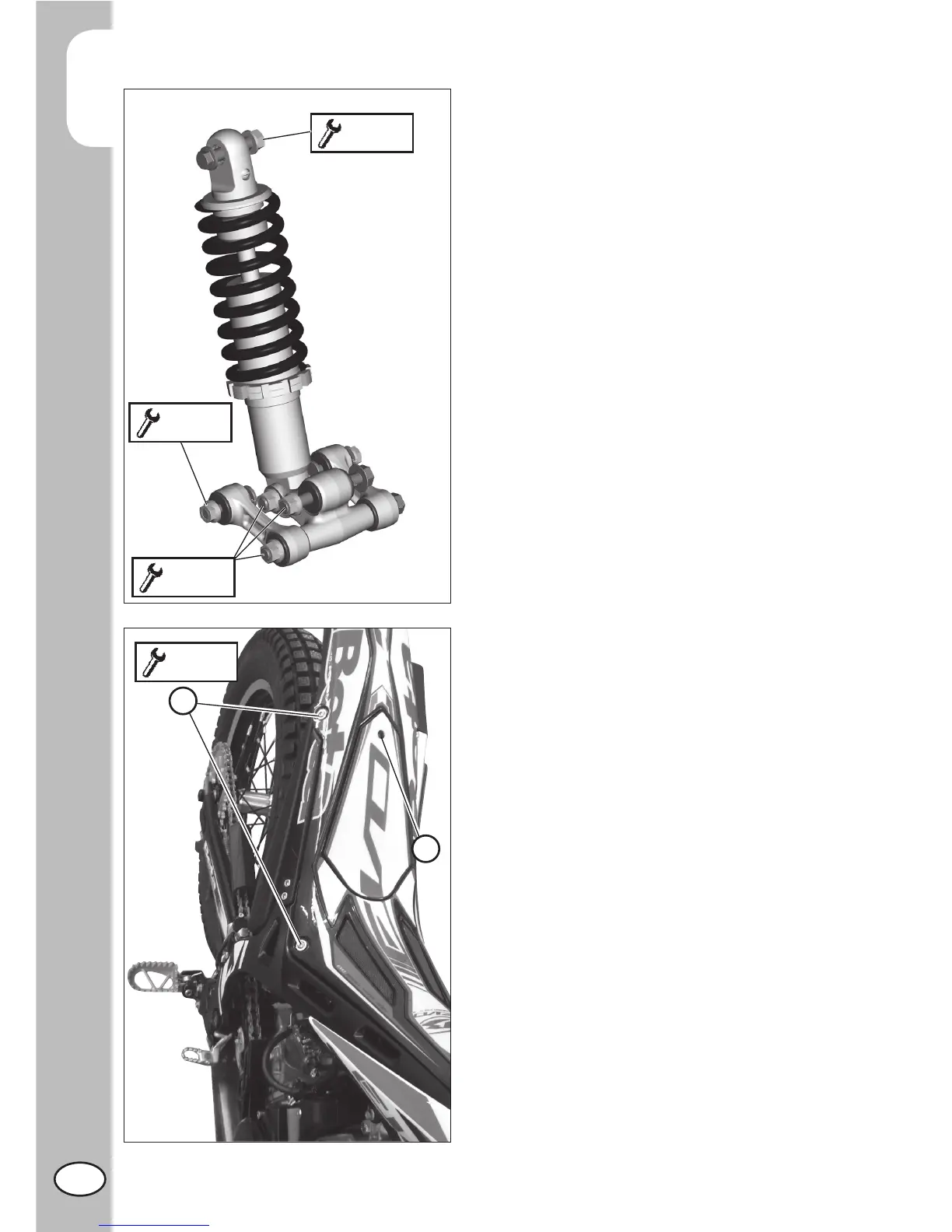

To check the upper shock absorber fasten-
ing proceed as follow:
Remove screws 1 and 2 (two per side).
Remove the mudguard.
At the end refi t the screws 1 and 2.
Tighten to the torque indicated.
NOTE: It is recommended not to wash with
water jets at high pressure in the zone of
the linkage.
Perform the check according to the times
indicated in the table on page 60.
To verify device, contact authorised Beta-
motor customer service.
45Nm
30Nm
45Nm
10Nm
2
1
