BIFFI F01-2000 ELECTRIC ACTUATOR
INSTRUCTION AND OPERATING MANUAL

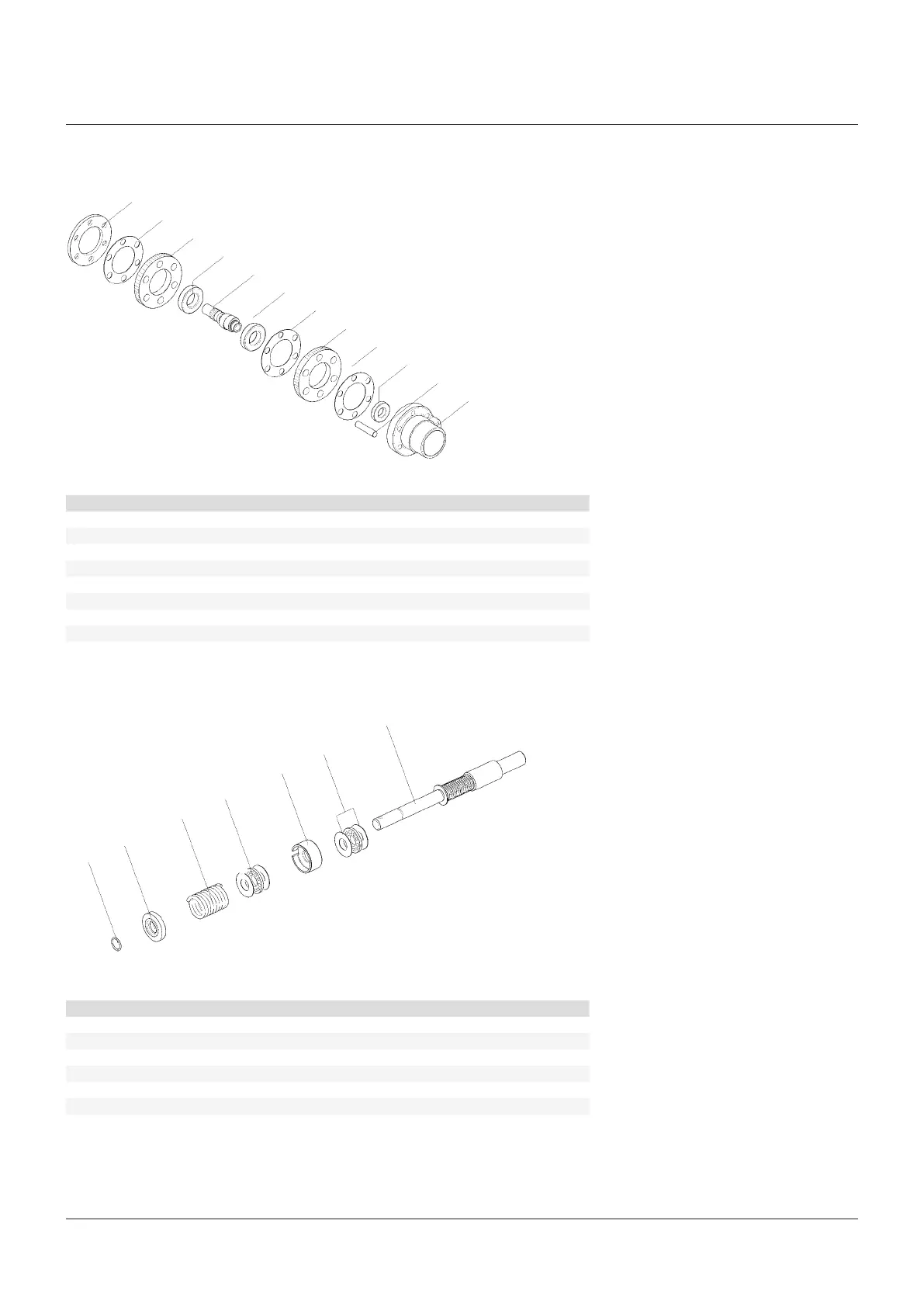

F01-2000 - PLANICENTRIC ASSEMBLY
TABLE 2 - F01-2000 - PLANICENTRIC ASSEMBLY
Item Quantity Description
30.1 1 Pin guide ring
30.2 3 Spacer ring
30.3 2 Eccentric wheel
30.4 2 Bearing
30.5 1 Double eccentric shaft
30.6 1 Bearing
30.7 6 Pin
30.8 1 Splined bush
TABLE 3 - F01-2000 - WORM GEAR ASSEMBLY
Item Quantity Description
49.1 1 Stop ring
49.2 1 Spring support
49.3 1 Spring
49.4 2 Axial bearing
49.5 1 Thrust bearing support
49.6 4 Axial bearing shoulder
49.7 1 Worm gear
F01-2000 - WORM GEAR ASSEMBLY
