10
1
2
F01-2000/150 0.7
F01-2000/300 0.7
F01-2000/600 0.8
BIFFI F01-2000 ELECTRIC ACTUATOR
INSTRUCTION AND OPERATING MANUAL
4 LUBRICATION
4�1 LUBRICATION INSPECTION
The actuator is lubricated for life, therefore
under normal working conditions it is not
necessary to replace or refill the oil. However
it is recommended to check the oil level every
3-5 years using holes 1 or 2 depending on
mounting position.

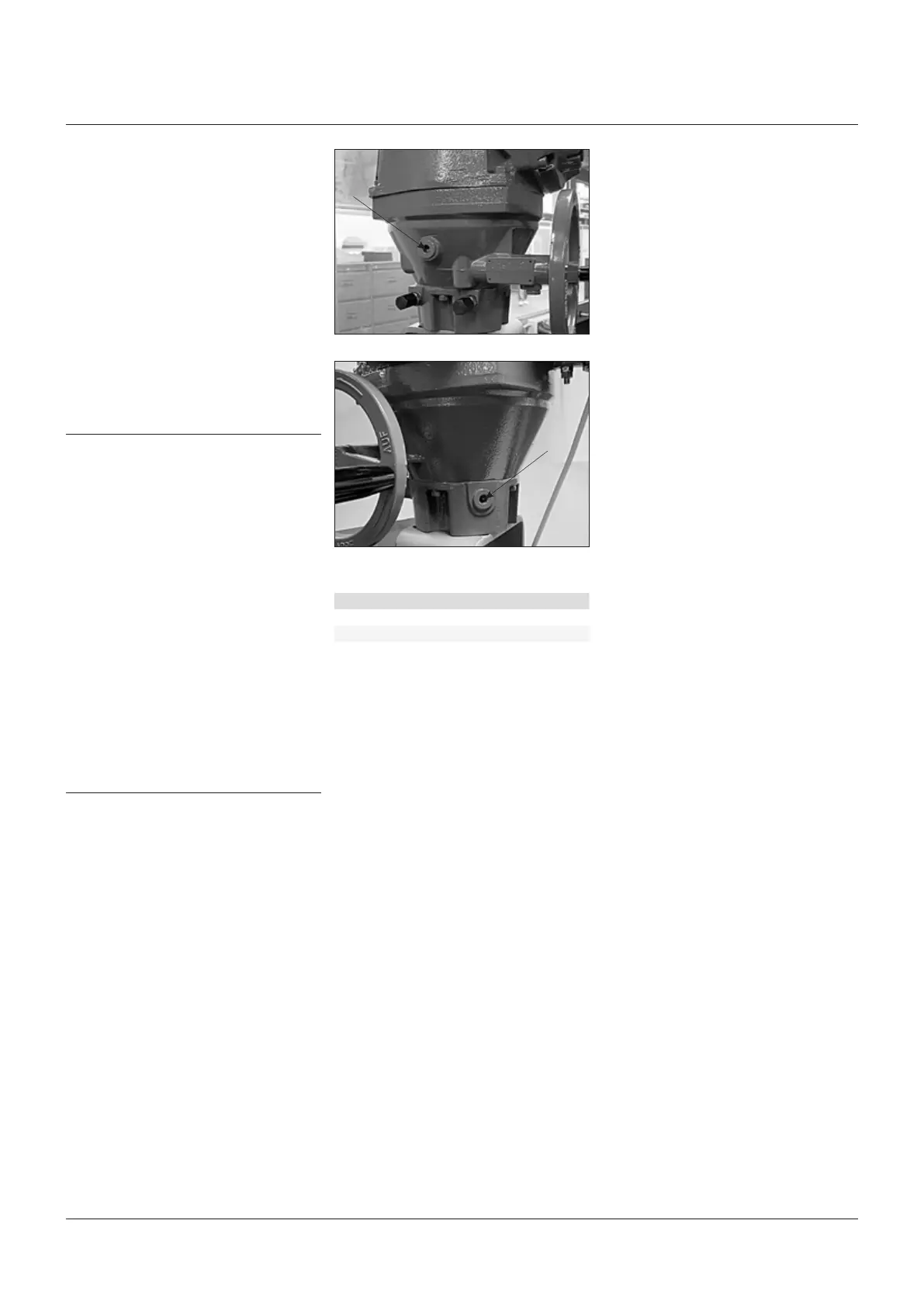

The actuator is fitted with oil plugs (parts 1, 2),
so that any assembly on the valve has at least
one oil plug on the upper part of the housing
and one on the lower part.
The actuator is supplied with oil and greased
where necessary.
Actuator size Oil quantity (l)
In case of maintenance the following oils are
recommended:
Ambient temperature from -30°C to +85°C
(-20°C to +60°C only for Ex d e or Ex tb
versions)
• SHELL - TIVELA OIL SC320
Other equivalent:
• EXXON TERESSTIC SHP320
• MOBIL OIL - GLYGOYLE HE 320
• KLUBER LUBRICATION - KLUBERSYNTH
EG4-320
Ambient temperature from -55°C to +70°C
• SHELL - CASSIDA FLUID HF 68
Other equivalent:
• SYNECO - WINTER PLUS
In case of maintenance the following greases
are recommended:
Ambient temperature from -30°C to +85°C
(-20°C to +60°C only for Ex d e or Ex tb
versions)
• ISO viscosity grade X1 (EP1)
Other equivalent:
• ESSO BEACON EP1
• AGIP GR MU/EP1
• AEROSHELL GREASE for explosion-proof
joints in ATEX version
Ambient temperature from -55°C to +70°C
• FUCHS FN20
Other equivalent:
• TEXACO low temperature grease EP
• AGIP FN20/00
3�10 INSTALLATION IN ENVIRONMENT WITH
EXPLOSIVE DUSTS
IMPORTANT
Electric actuator F01-2000 shall be installed and
maintained according to the applicable rules
regarding the electrical installations in hazardous
area (other than mines) classified as zone 21
(dust); example: EN 61241-14 (dust) and/or other
national standards.
Please make sure that:
- The joint surfaces are greased with silicon oil
or equivalent before assembly.
- The cable glands have minimum protection
degree IP68 (EN 60529).
- Periodically verify the quantity of dust
deposited on the enclosure and clean it if
more than 5mm.
• Replace the weatherproof seals that may
have been removed (O-ring for the covers,
O-ring for the explosionproof joint of the
motor).
When the Ex d e version is supplied, according
to the protection degree shown on the
nameplate, waterproof cable glands with a
minimum IP68 protection degree, can be used.
WARNING
Do not operate the actuator electrically when the
electrical enclosures are removed. Operating the
unit with the electrical enclosures removed could
cause personal injury.
