F02 Quarter-turn Electric Actuators
instruction and operating manual

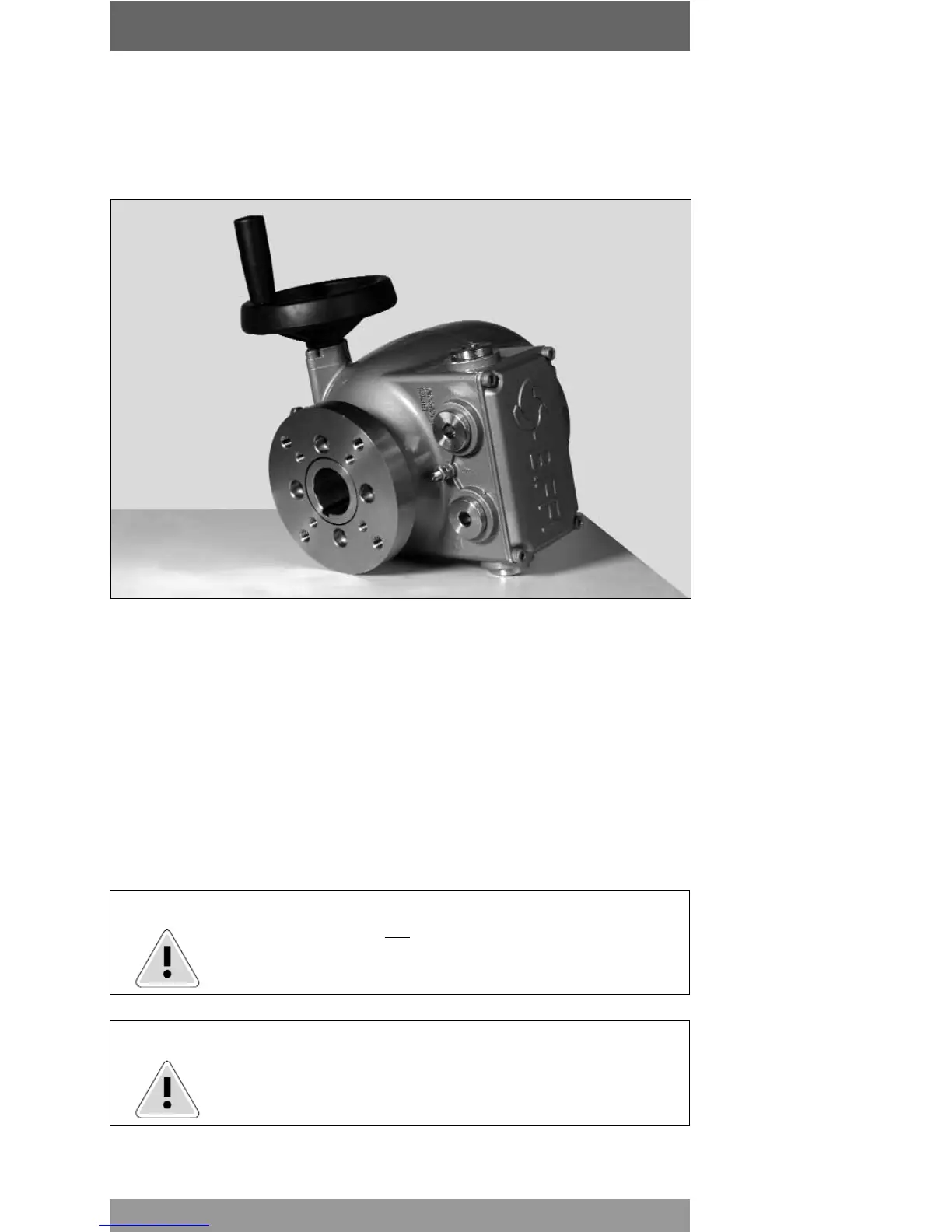

Overview of one type of insert and drive details of the F02.
4.3 Coupling block
The electric actuator is delivered with drive details and flange in accordance with the
technical characteristics required by the Customer, ready to be installed onto the valve.
Only one insert is included in the actuator package delivered to end users.
4.4 Installation of the F02 unit onto a valve
Move the valve to the completely open position.
Manually bring the F02 to the completely open position (verify the local mechanical indicator)
and check the rotation direction of actuator and valve. The actuator should be mounted for
counter-clockwise rotation to open and clockwise to close.
Warning: Never lift the valve/actuator assembly without securing slings
to both the valve and the actuator
Warning: Never use the handwheel to lift the actuator
