F02 Quarter-turn Electric Actuators
instruction and operating manual

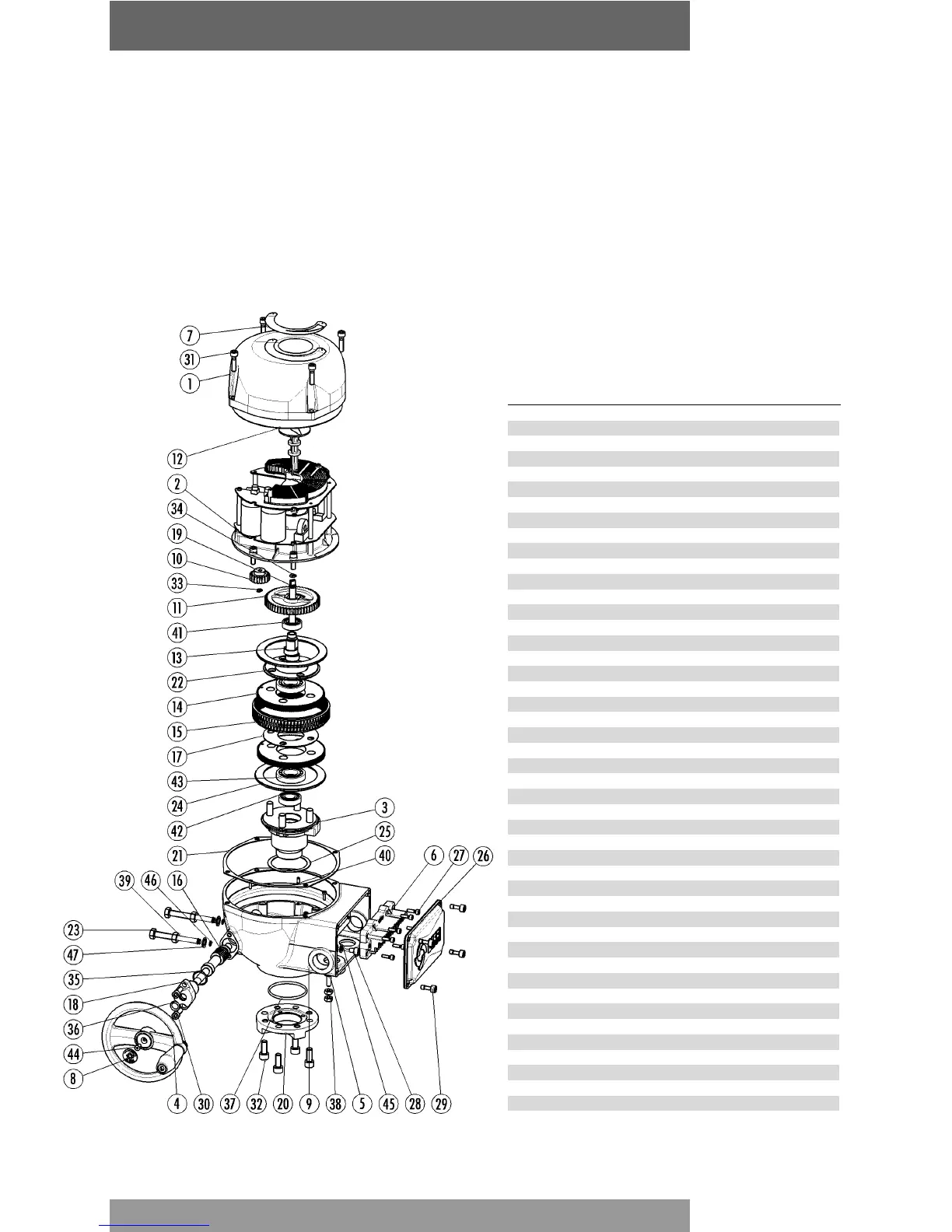

8.1 Parts list
F02 MODEL 063
GENERAL ASSEMBLY
Pos. Description Q.ty
1 Cover assembly 1
2 Drive and control unit 1
3 Output drive assembly 1
4 Handwheel 1
5 Earth stud 1
6 Terminal block 1
7 Position label 1
8 Plug 1
9 Standard housing 1
10 Motor pinion 1
11 Wheel 1
12 Indicator 1
13 Eccentric 1
14 Planocentric gear 2
15 Fixed annulus 1
16 Manual wormshaft 1
17 Spacer 1
18 Wormshaft flange 1
19 Indicator shaft 1
20 Base plate ISO5211/F05-f07 1
21 Cover gasket 1 •
22 Ring for pins allignement 1
23 Stopper 2
24 Ring 2
25 Sliding ring 1
26 Terminal block cover 1
27 HSHC screw UNI5931-M4x14 7
28 ESH screw UNI5931-M6x8 1
29 Antiloosening screw M6x16 4
30 HSHC screw UNI5931-M6x18 2
31 HSHC screw UNI5931-M6x25 4
32 HSHC screw UNI5931-M8x20 4
33 Snap ring for shaft d.6 1
34 O-ring DI =6.07/W=1.78 1 •
35 O-ring DI =18.77/W=1.78 1 •
36 O-ring DI =9.19/W=2.62 1 •
37 O-ring DI =52.07/W=2.62 1 •
38 Nut UNI5588-M6 2
39 Nut UNI5588-M8 2
40 Dowel pin UNI-EN22338 M4x8 type B 1
41 Ball bearing type 6001 1
42 Ball bearing type 16002 1
43 Ball bearing type 16004 2
44 HSSC screw UNI5933 M4x10 1
45 Anti-loosening washer UNI8842-J6 2
46 Ring RW7 UNI7433 2
47 Seal washer 8.3 2
• Recommended
