Removal of the terminal board enclosure.
15
© Copyright by BIFFI Italia. All rights reserved.
A !@#$ INTERNATIONAL LTD. COMPANY
F02 Quarter-turn Electric Actuators
instruction and operating manual
4.7 Electrical connections
Before powering the actuator, check that the supply voltage details on the nameplate are
correct for the plant. Access to terminals for electrical connections is through the terminal
cover and for commissioning is through the control unit cover.
Warning: After electrical on-field installation, please make sure all
removal of the cover assembly is done in total observance of
the applicable safety rules.
Warning: All the accessories (cable glands in particular) must be
certified according to the requirements of the installation area
and the relevant applicable regulations.
Warning: Setting must be done while the actuator is powered on. As a
consequence, all setting operations must be carried out by
specifically qualified personnel for operations on powered
electronic cards.
4.8 Plant requirements
Protection devices (over-current breakers, magneto-thermal switches or fuses) must be
provided by the Customer to protect the main lines in case of motor over-current or loss of
insulation between phases and earth.
4.9 Removal of the terminal board enclosure

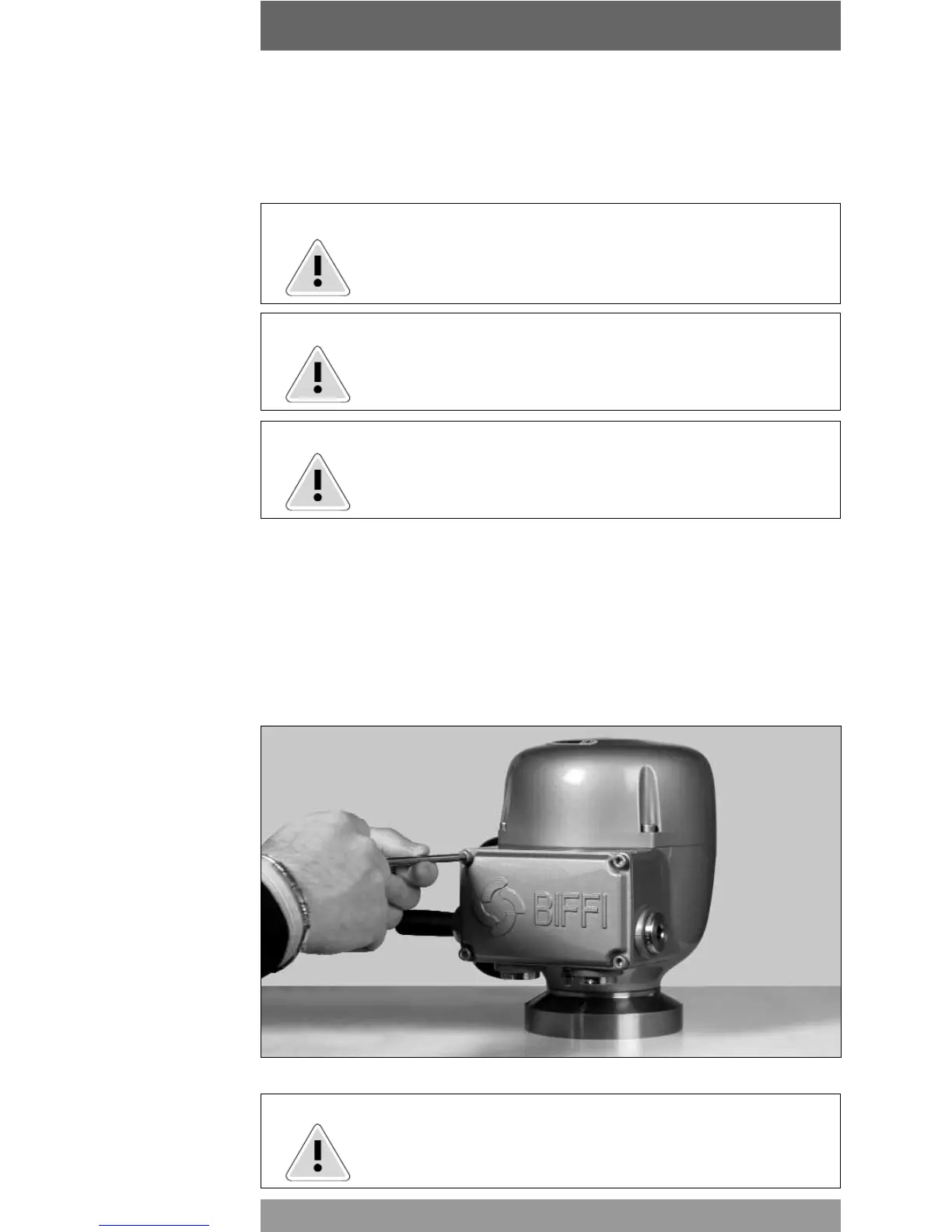

Using a 5 mm Allen key, loosen the four screws and remove the cover.
Warning: Pay attention not to damage the joint surfaces of
the cover.
